2500 Wall Mount
12
NOTE: Wood pad dimensions for reference only. See production drawing for final A, B, and C
dimensions. If production drawing cannot be located please contact the factory.
UNITS INSTALLED WITH OR WITHOUT AAG
ALL UNITS
DIM "A"
DIM "B"
FOB EXTENSION
DIM "C"
Rectangular or Wide Mou nting
0'-2' (0.0M -0.61M)
NONE
LXP 4200
9'-8 7/8" (2.97M)
36" (0.91M)
2'-4' (0.61M -1.22M)
24" (0.61M)
AFRG 42
9'-8 7/8" (2.97M)
36" (0.91M)
4'-6' (1.22M -1.83M)
35" (0.89M)
AFRG48
9'-2 11/16" (2.81M)
42" (1.07M)
6'-9' (1.83M -2.74M)
56" (1.42M)
RG
9'-2 11/16" (2.81M)
42" (1.07M)
9'-12' (2.74M -3.66M)
79" (2.00M)
1401B
9'-2 11/16" (2.81M)
42" (1.07M)
OVER 12'
*SEE JOB
1272PS
9'-7" (2.91M)
36" (0.91M)
1442B
9'-7 11/16" (2.94M)
36" (0.91M)
BB72A38
9'-6 5/8" (2.91M)
36" (0.91M)
Fan or Narrow Mounting
1342B
10'-1 7/8" (3.10M)
20" (0.51 M)
1301B
10'-1 5/8" (3.09M)
20" (0.51M)
FSGII
10'-1 5/8" (3.09M)
20" (0.51M)
1750B
9'-9 7/16" (2.98M)
20" (0.51M)
1270B
10'-0 7/16" (3.05M)
20" (0.51M)
1272B
10'-0 7/16" (3.05M)
20" (0.51M )
1260B
10'-0 7/16" (3.05M)
20" (0.51M)
3050RG
10'-3 15/16" (3.15M)
20" (0.51M)
1245T
9'-9 13/16" (2.99M)
20" (0.51M)

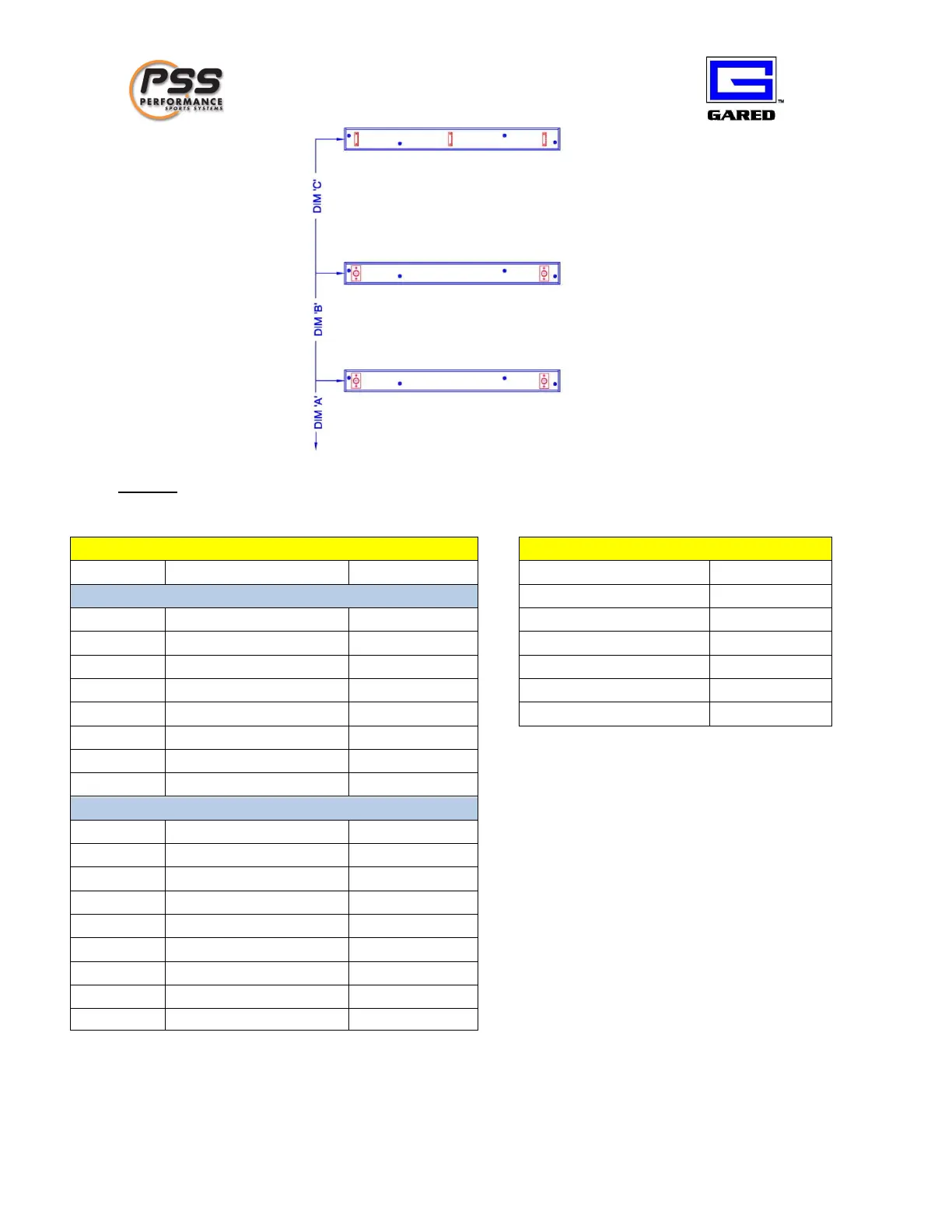

Figure 2.
