Gared 2500 - Special Bracket Considerations

2500 Wall Mount
13
SPECIAL BRACKET CONSIDERATIONS

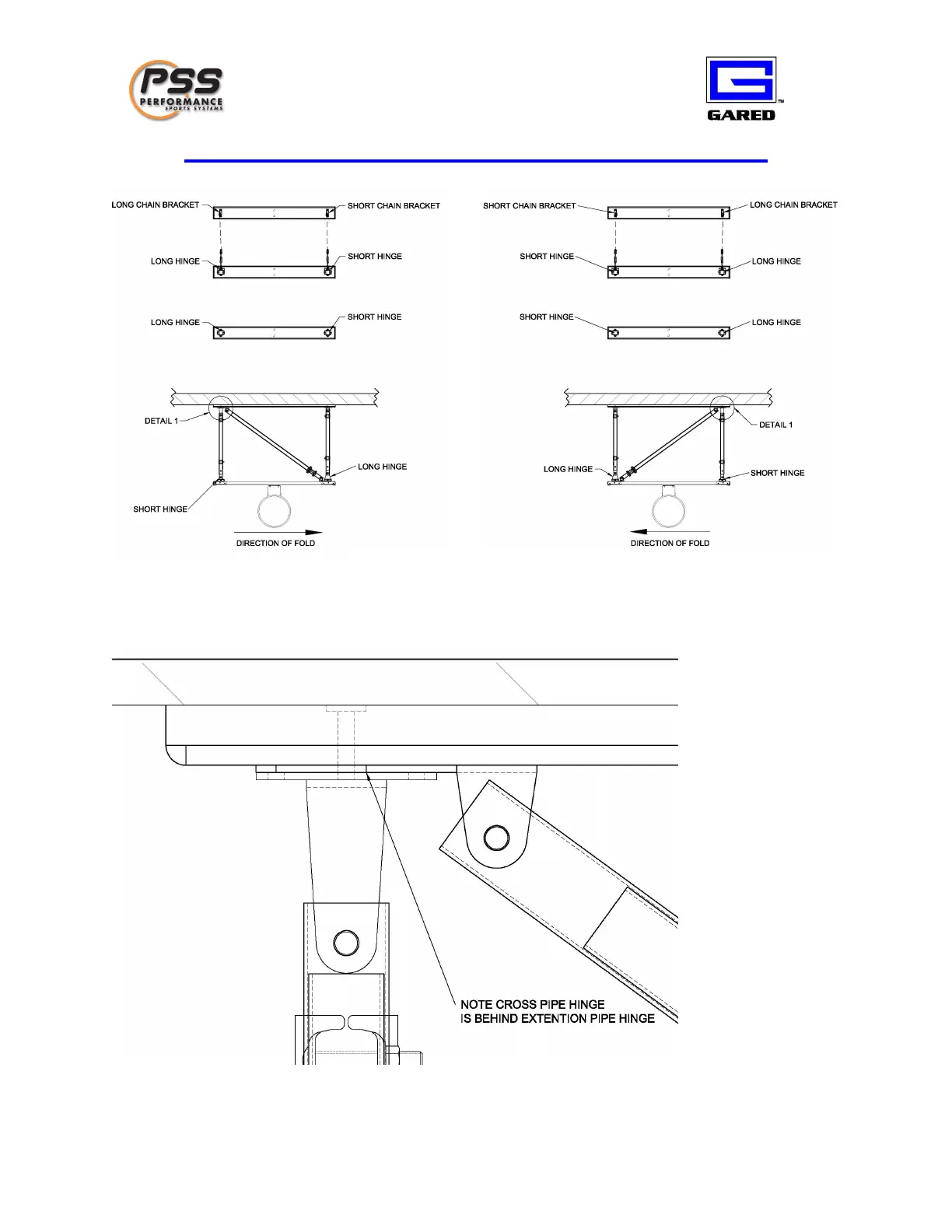

Use the figures above to set up your hardware to match the directio n of fold desired. Check with
the General Contractor or Architect to confirm correct direction of fold. Note the placement of
the cross brace pipe hinge as shown in the detail below.
