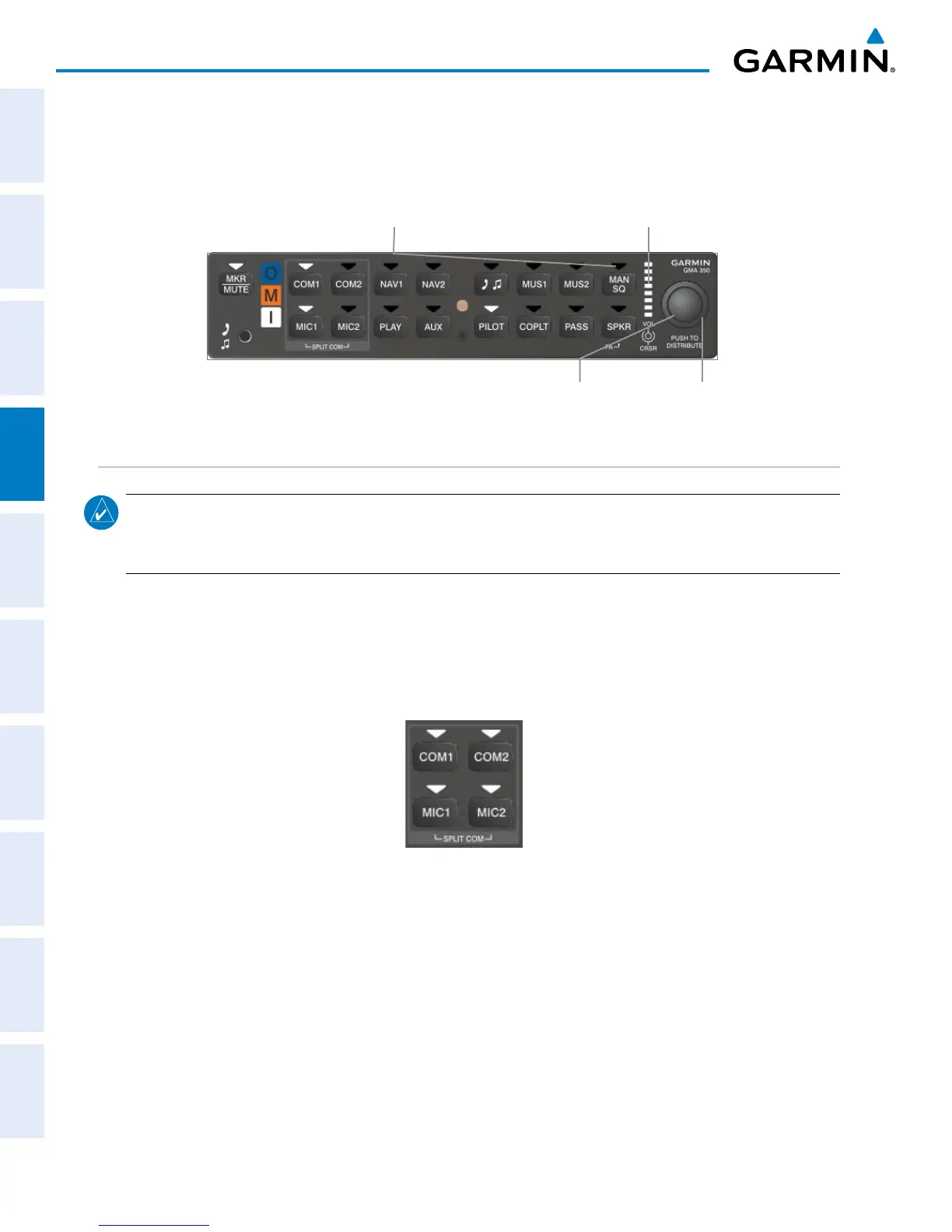

AdjuSting MAnuAl Squelch
When the cursor is on MAN SQ, the Volume Control Knob adjusts the ICS Squelch Threshold (the
volumelevelthatmustbeexceededtobeheardovertheintercom).
Volume/Squelch Control
Manual Squelch Annunciator; Off for
Automatic Squelch, On for Manual Squelch
Relative Volume/
Squelch Scale
Volume or Manual Squelch Cursor
SPLIT COM MODE WITH THE GMA 350
NOTE: Split COM performance is affected by the distance between the COM antennas and the separation
of the tuned frequencies. If the selected COM frequencies are too close together, interference may be heard
during transmission on the other radio.
DuringSplitCOM operation, boththe pilot andthecopilot can transmitsimultaneously over separate
radios.InSplitCOMmode,thepilotisusesCOM1andthecopilotisusesCOM2.
Pressing both MICKeyssimultaneouslyinitiatesSplitCOMMode(i.e.,COM1/COM2).Therespective
COM1/MIC1 or COM2/MIC2 annunciators are illuminated indicating Split COM operation.  Split COM
operationiscancelledbypressingoneoftheselectedMICKeysagain.
Split COM Selected
