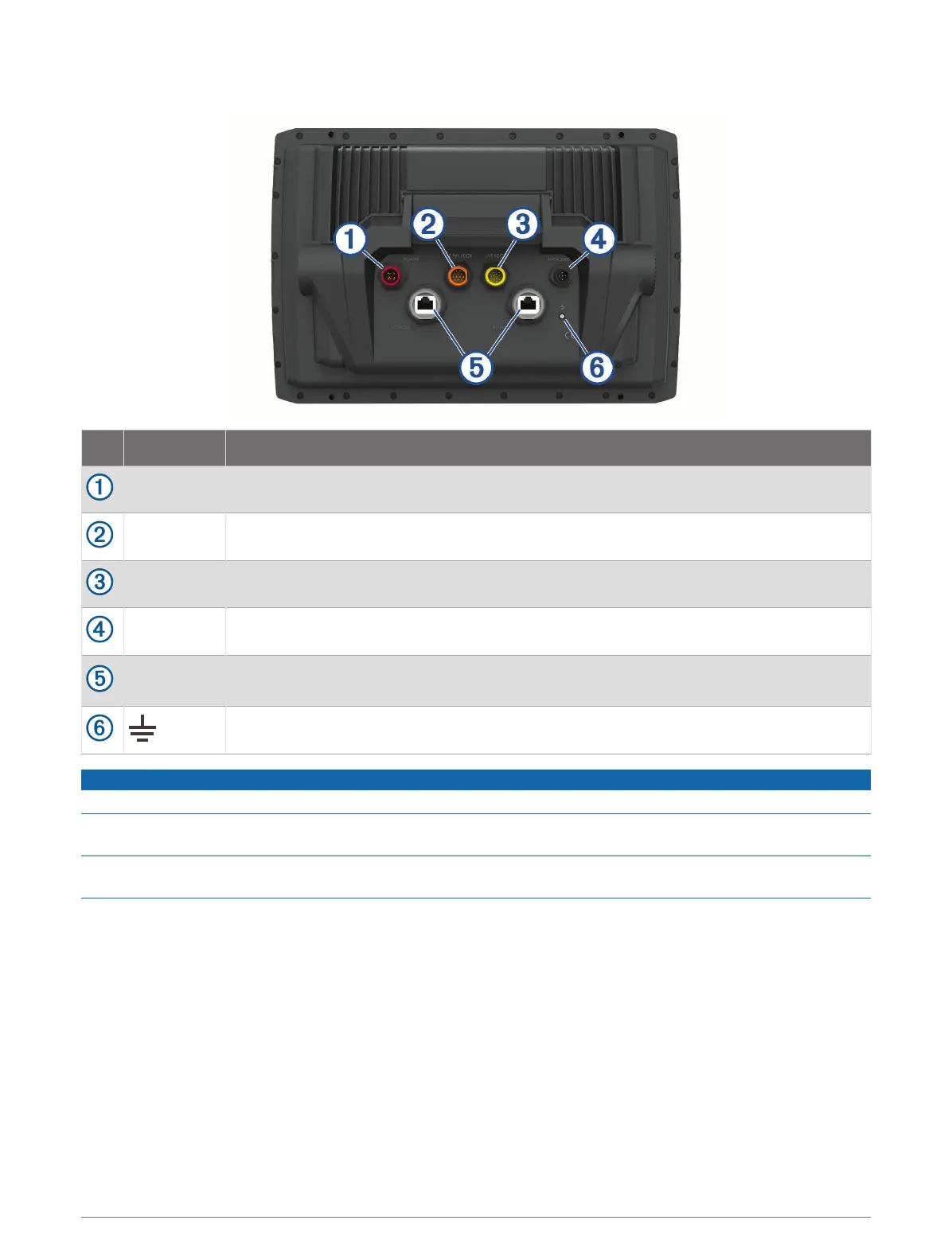

Connector View
Item Label Description
POWER Power and NMEA
®
0183 devices
12 PIN XDCR 12-pin transducer
LVS XDCR Panoptix
™
LiveScope
™
LVS12 12-pin transducer
NMEA 2000 NMEA 2000
®
network
NETWORK
Panoptix LiveScope sonar or Garmin
®
Marine Network for sharing sonar, charts, and user
data
Ground screw
NOTICE
To prevent corrosion of the metal contacts, cover unused connectors with weather caps.
For best performance and to prevent corrosion, insert the cable connector fully into the port and turn the locking
ring clockwise to tighten it. If the split-collar locking ring is not installed, you must install it.
To comply with regulations and to reduce noise, snap the ferrite beads on the network and transducer cables,
near the connectors.
Assigning a Shortcut Key
You can quickly open commonly used screens by assigning a shortcut key. You can create a shortcut to screens
such as sonar screens and charts.
1 Open a page.
2 Hold a shortcut key, and select OK.
2 Introduction

Garmin ECHOMAP Ultra Series Specifications

General

Wi-Fi	Yes
Bluetooth	Yes
Touchscreen	Yes
Water Rating	IPX7
Power Input	10-32 Vdc
Display Size	10" or 12"
Display Resolution	1280 x 800 pixels
Sonar	CHIRP traditional and ClearVü/SideVü
Preloaded Maps	BlueChart g3 and LakeVü g3
Connectivity	NMEA 2000, NMEA 0183
Mounting Options	Bail mount or flush mount
Memory Card Slot	microSD card slot
Dimensions	Varies by model
Weight	Varies by model
Transducer	Compatible with GT series transducers (included or optional depending on model)
