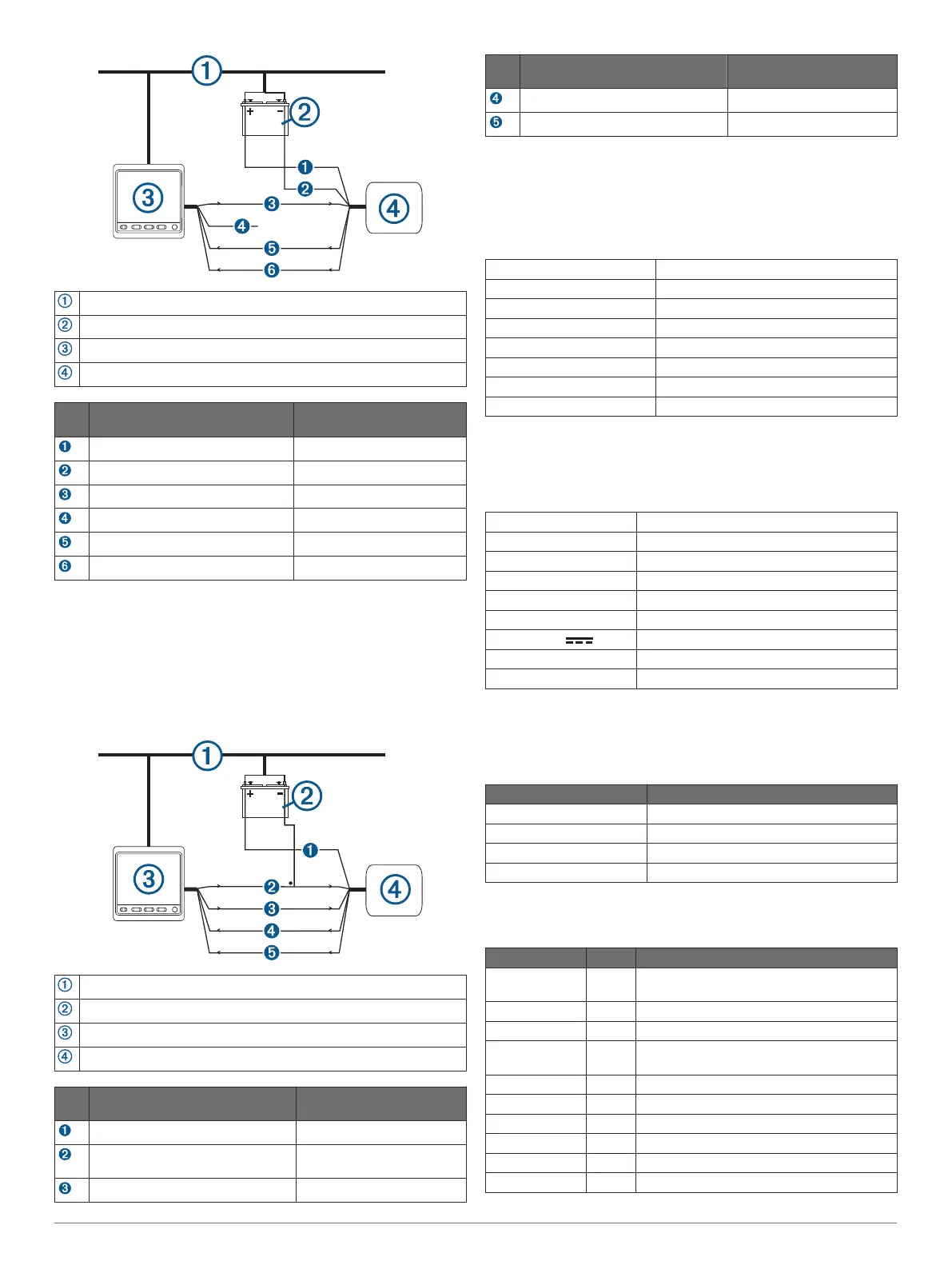

Garmin Reactor 40 - Specifications; CCU; ECU; Alarm

NMEA 2000 network (provides power to the helm control)
12 Vdc power source
Helm control
NMEA 0183 compatible device
Wire Helm Control Wire Color —
Function
NMEA 0183 Compatible
Device Wire Function
N/A Power
N/A NMEA 0183 ground
Blue — Tx/A (+) Rx
White — unconnected N/A
Brown — Rx/A (+) Tx/A (+)
Green — Rx/B (-) Tx/B (-)
NOTE: When connecting a NMEA 0183 device with only one
receiving (Rx) line, you must connect the NMEA 2000 bus and
the NMEA 0183 device to a common ground.
Only One Transmitting Wire
If your NMEA 0183 compatible device has only one transmitting
wire (Tx), it must be connected to the brown wire (Rx/A) from the
helm control, and the green wire (Rx/B) from the helm control
must be connected to NMEA 0183 ground.
NMEA 2000 network (provides power to the helm control)
12 Vdc power source
Helm control
NMEA 0183-compatible device
Wire Helm Control Wire Color —
Function
NMEA 0183 Compatible
Device Wire Function
N/A Power
Green — Rx/B (-) (connect to
NMEA 0183 ground)
NMEA 0183 ground
Blue — Tx/A (+) Rx/A (+)
Wire Helm Control Wire Color —
Function
NMEA 0183 Compatible
Device Wire Function
White — Tx/B (-) Rx/B (-)
Brown — Rx/A (+) Tx/A (+)
NOTE: When connecting a NMEA 0183 device with only one
transmitting (Tx) line, you must connect the NMEA 2000 bus
and the NMEA 0183 device to a common ground.
Specifications
CCU
Dimensions (L × W × H) 170 × 90 × 50 mm (6.7 × 3.5 × 2 in.)
Weight 200 g (7 oz.)
Temperature range From -15° to 70°C (from 5° to 158°F)
Material Fully gasketed, high-impact plastic
Water rating IEC 60529 IPX7*
CCU cable length 5 m (16 ft.)
NMEA 2000 input voltage From 9 to 16 Vdc
NMEA 2000 LEN 4 (200 mA)
*The device withstands incidental exposure to water of up to 1 m
for up to 30 min. For more information, go to www.garmin.com
/waterrating.
ECU
Dimensions (W × H × D) 168 × 117 × 51 mm (6.6 × 4.6 × 2 in.)
Weight 680 g (24 oz.)
Temperature range From -15° to 60°C (from 5° to 140°F)
Material Fully gasketed, high-impact aluminum alloy
Water resistance IEC 60529 IPX7*
Power cable length 2.7 m (9 ft.)
Input voltage From 11.5 to 30 Vdc
Fuse 40 A, blade-type
Main power usage 1 A (not including the drive unit)
*The device withstands incidental exposure to water of up to 1 m
for up to 30 min. For more information, go to www.garmin.com
/waterrating.
Alarm
Specification Measurement
Dimensions (L×diameter)
29
/
32
× 1 in. (23 × 25 mm)
Weight 2.4 oz. (68 g)
Temperature range From 5°F to 140°F (from -15°C to 60°C)
Cable length 10 ft. (3.0 m)
NMEA 2000 PGN Information
CCU
Type PGN Description
Transmit and
receive
059392 ISO acknowledgment
059904 ISO request
060928 ISO address claim
126208 NMEA: Command/Request/Acknowledge
group function
126464 Transmit/Receive PGN list group function
126996 Product information
127257 Transmit/Receive attitude data
127251 Transmit/Receive rate of turn
Transmit only 127245 Rudder data
Transmit only 127250 Vessel heading
9
