MAGNASCANNER CS 5000
OWNER S MANUAL
' 2000 GARRETT METAL DETECTORS, INC.
4/30/00
PN 11674XX
Revised
2. CONTROLS & MODULES

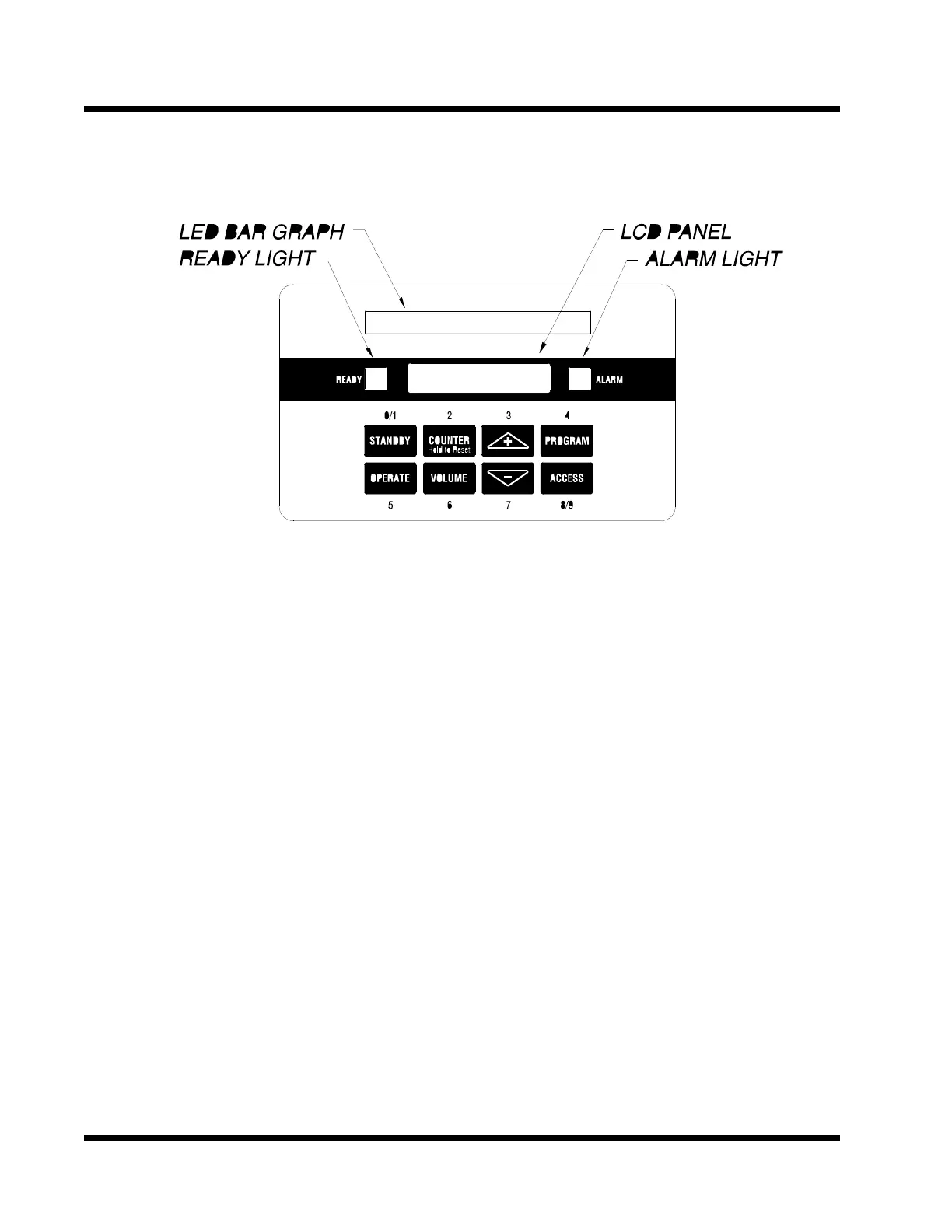

2.1. DISPLAY PANEL
2.1.1. LED BAR GRAPH
This LED display at the top of the Control Panel indicates the detection intensity which
is based on the amount and composition of metallic objects passing through the unit.
2.1.2. READY LIGHT
This green light appears when full power has been turned on and the unit is ready to
operate. The light will also indicate when an individual inspection has been completed
by the unit and it is ready to accept the next person. Operators should make certain the
green light is visible before any individual is permitted to pass through the detector.
2.1.3. LCD PANEL
Large alpha/numeric LCD below the Bar Graph reports all operating, setup and diag-
nostic information of the unit. Because the unit is designed to be user-friendly, all reg-
ulation and control functions are self-prompting with necessary commands shown on
the LCD display.
2.1.4. ALARM LIGHT
This red light appears when the unit detects a targeted amount of metal on an individ-
ual, according to specifications of the Program and Sensitivity levels that have been
selected. Operators should be instructed to respond to all alarms. For any detector to
be effective in a security system it is absolutely necessary that the cause of EVERY
ALARM be determined.
3
