2.3. INTERNAL MODULES
2.3.1. CONTROLLER MODULE
This module (in the center) contains all circuit boards necessary for operation of the
detector. Two cables (A and B) that connect this module to the side panels are to be
plugged into the connectors at the top of each panel. The cover of the Controller
Module never needs to be removed except for:
l Connecting wires to remote alarm relays or synchronization circuitry (See Pages
38-40);
l Connecting a remote console (See Page 41);
l Attaching the optional battery back up (See Page 42);
l Resetting to factory default Access Code (See Page 14).

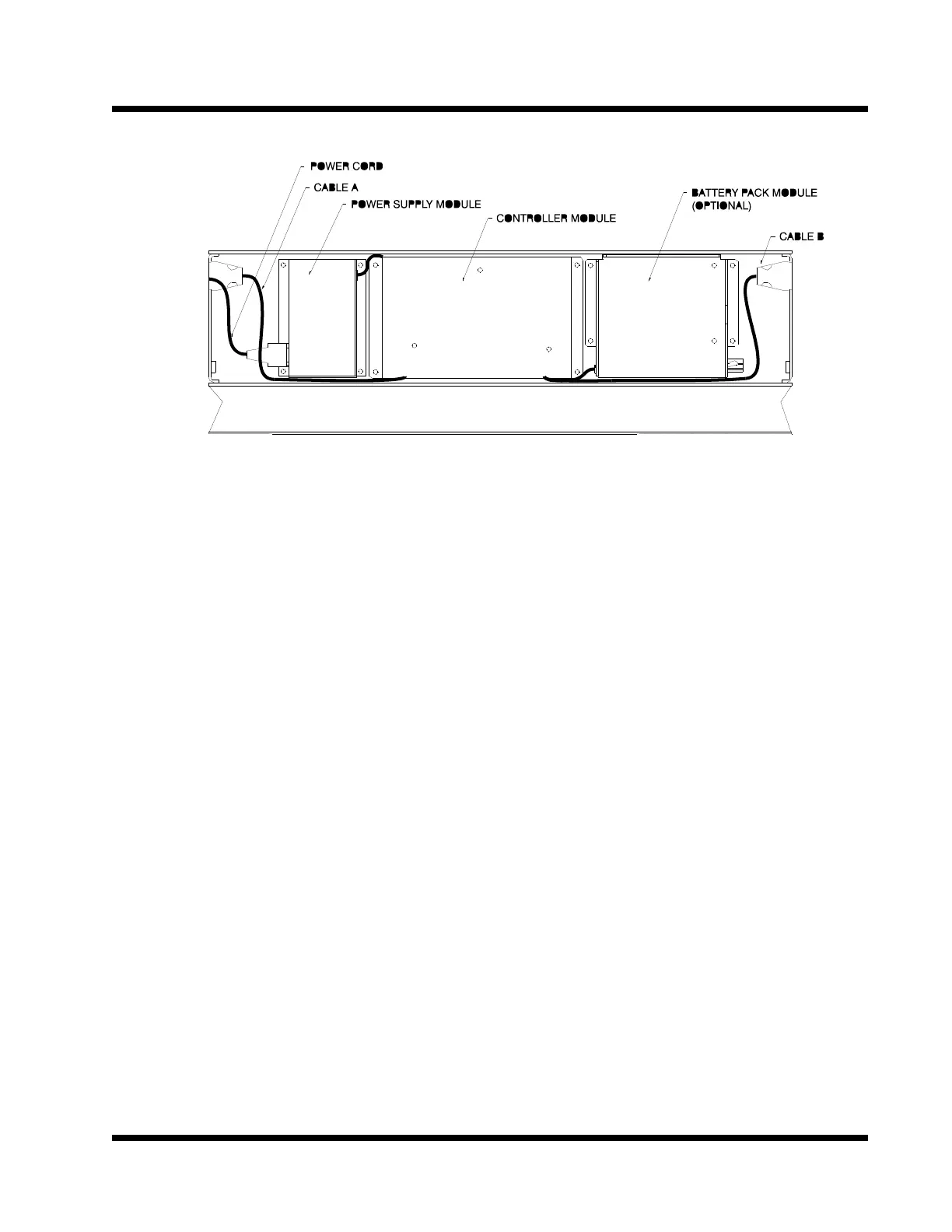

Shown above is a view of the detection unit after the access door has been opened.
Three metal covers protect (from left) the POWER SUPPLY Module, CONTROLLER
Module and the BATTERY PACK Module (Optional).
2.3.2. POWER SUPPLY MODULE
This module contains all circuitry that relates to the power required for operation of the
detector. The Power Cord should be plugged into the Power Supply Module at the con-
nector on the lower left side.
2.3.3. BATTERY PACK MODULE (OPTIONAL)
This module, which includes two (2) 12v batteries and charging circuitry that comprise
the optional battery pack, will be stored behind this cover and connected with the
Controller Module. This pack has a switch which is used to disconnect battery power.
MAGNASCANNER CS 5000
OWNER S MANUAL
' 2000 GARRETT METAL DETECTORS, INC.
4/30/00
PN 11674XX
Revised
6
