TUNING THE CHASSIS 10
37

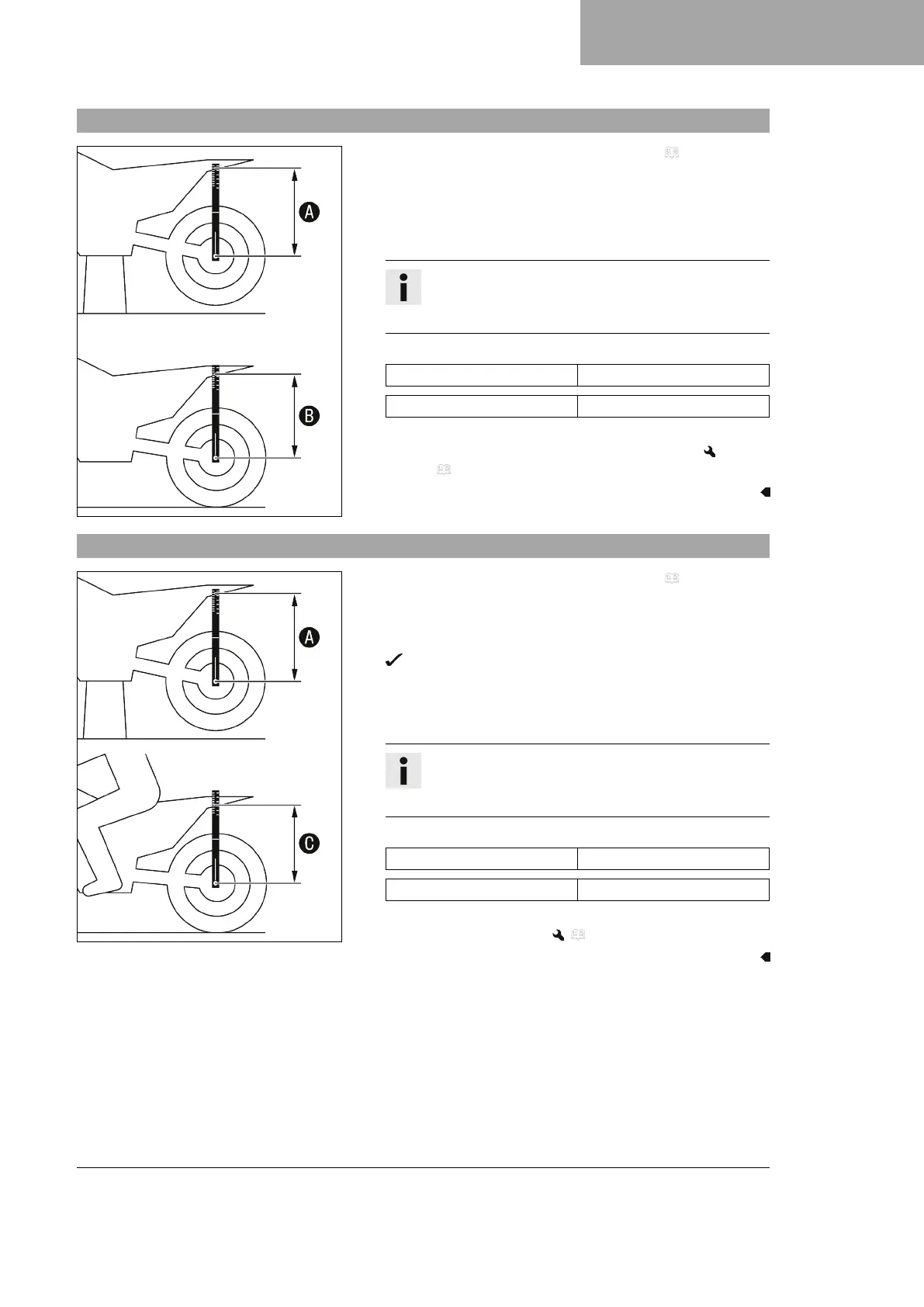

10.8 Checking the static sag of the shock absorber
402416-10
–
Measure dimension
A
of rear wheel unloaded. ( p. 36)
– Hold the motorcycle upright with aid of an assistant.
– Remeasure the distance between the rear axle and the marking on
the rear fender using the sag gage.
–
Note the value as dimension
B
.
Info
The static sag is the difference between measurements
A
and
B
.
– Check the static sag.
Static sag (MC) 35 mm (1.38 in)
Static sag (EX) 35 mm (1.38 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber.
( p. 38)
10.9 Checking the riding sag of the shock absorber
402417-10
–
Measure dimension
A
of rear wheel unloaded. ( p. 36)
– With another person holding the motorcycle, the rider, wearing full
protective clothing, sits on the seat in a normal sitting position (feet
on footrests) and bounces up and down a few times.
The rear wheel suspension levels out.
– Another person now remeasures the distance between the rear axle
and the marking on the rear fender using the sag gage.
–
Note the value as dimension
C
.
Info
The riding sag is the difference between measurements
A
and
C
.
–
Check riding sag.
Riding sag (MC) 105 mm (4.13 in)
Riding sag (EX) 105 mm (4.13 in)
» If the riding sag differs from the specified measurement:
–
Adjust the riding sag. ( p. 39)
