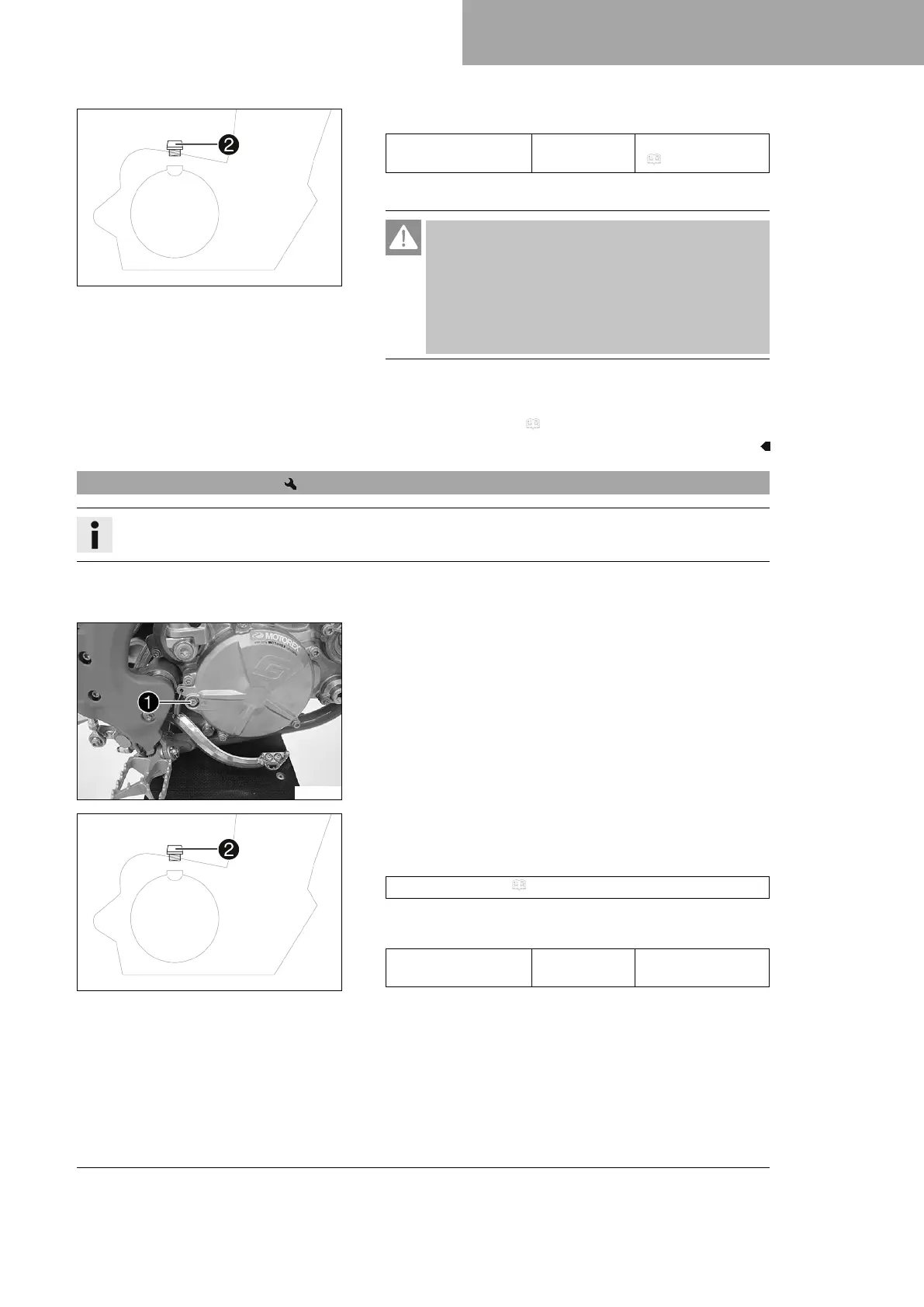

SERVICE WORK ON THE ENGINE 16
101
401955-11
–
Remove filler plug
2
with the O-ring, and fill up with gear oil.
Gear oil 0.50 l (0.53 qt.) Engine oil (15W/50)
( p. 117)
–
Mount and tighten filler plug
2
with the O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling
them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation when
running the engine.
– Use effective exhaust extraction when starting or run-
ning the engine in an enclosed space.
– Start the engine and check it for leaks.
Finishing work
–
Check the gear oil level. ( p. 100)
16.3 Adding the gear oil
Info
Too little gear oil or poor-quality gear oil results in premature wear to the transmission.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
S04352-10
Main work
–
Remove screw
1
with the seal ring.
401955-11
–
Remove filler plug
2
with the O-ring.
– Add gear oil up to the bottom edge of the hole of the gear oil level
plug.
Engine oil (15W/50) ( p. 117)
–
Mount and tighten screw
1
with the seal ring.
Guideline
Screw, gear oil level
monitoring
M6 8 Nm (5.9 lbf ft)
–
Mount and tighten filler plug
2
with the O-ring.
