Tools required (not included):
M6X15 4PCS

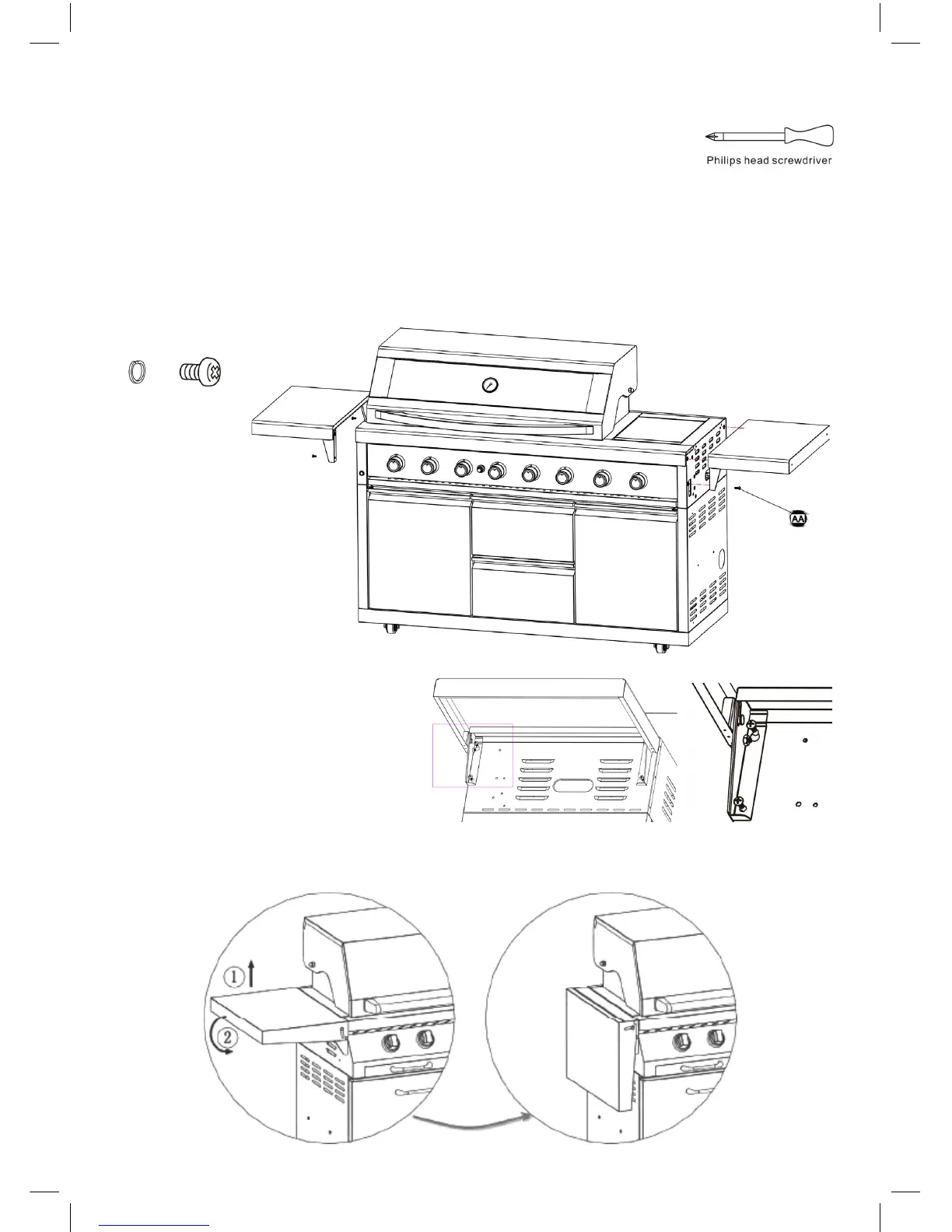

1. Side Shelves
• On each side of the BBQ there are 2 preassembled screws; loosen them to ensure there
is 4mm of thread showing.
• Loosen then Hang the side shelf onto these 2 screws on each side
• Then Assemble 2 M6x15 screws in the 2 lower holes.
• Tighten all screws.
2. Side shelves can be folded down by lifting at pivot point rst
