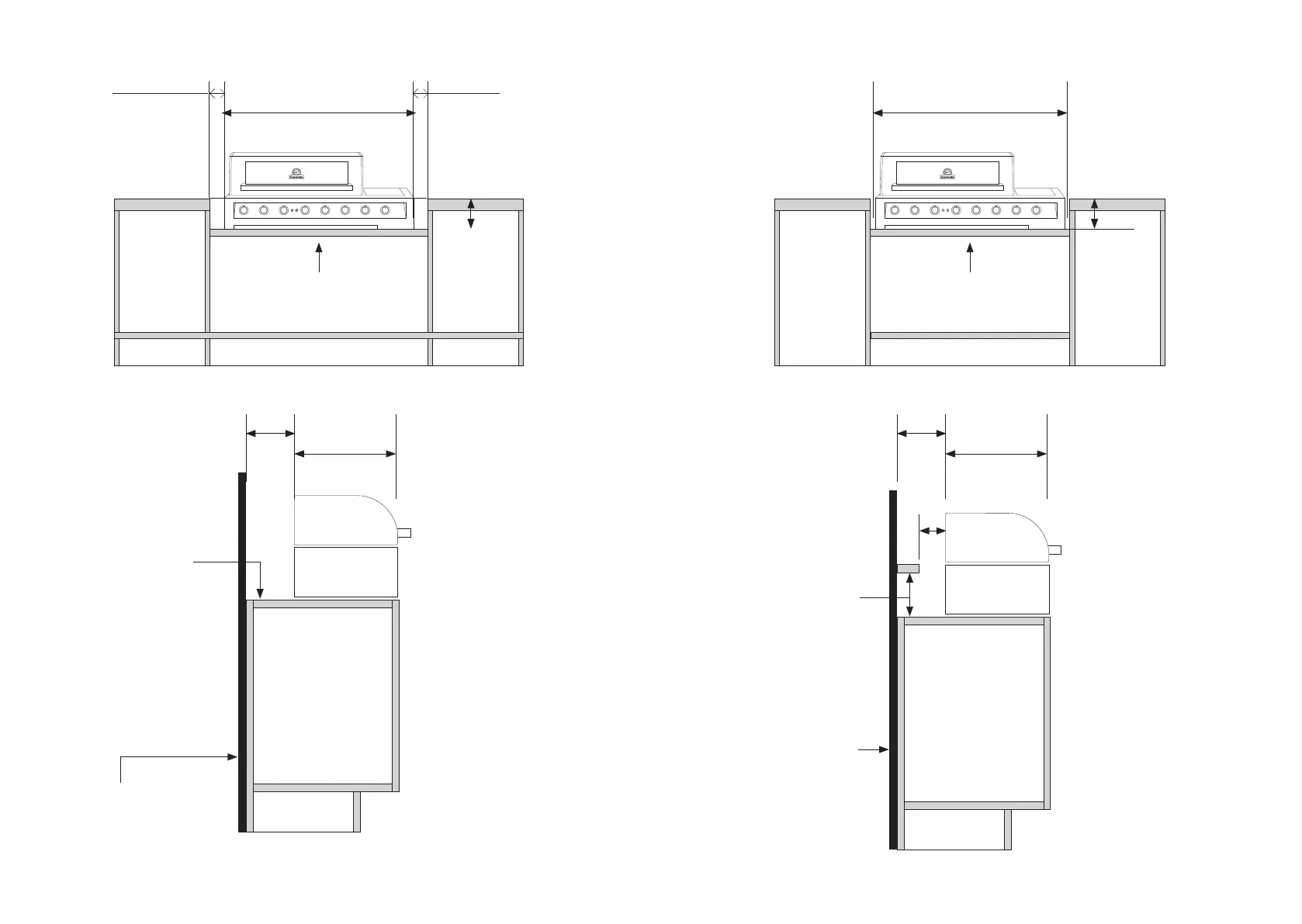

COMBUSTIBLE MATERIAL CABINETRY NON-COMBUSTIBLE MATERIAL CABINETRY
200mm gap min. 200mm gap min.
270mm
270mm
200mm
gap min.
145mm
20mm
585mm 585mm
1470mm for BQ19BF, BQ19BNGF,
1105mm for BQ193BF, BQ193BNGF
1470mm for BQ19BF, BQ19BNGF,
1105mm for BQ193BF, BQ193BNGF
Separation Panel
(must be non-combustible material)
Separation Panel
(must be non-combustible material)
Non-combustible material
Combustible rear material
(e.g. plaster wall)
Non-combustible material
Non-combustible rear wall
(e.g. brick, concrete)
for combustible materials for combustible materials
