Replacing the palm rest
www.gateway.com
49
6 Remove the keyboard by following the instructions in “Replacing the
keyboard” on page 28.
7 Remove the LCD panel by following the instructions in “Replacing the LCD
panel assembly” on page 35.

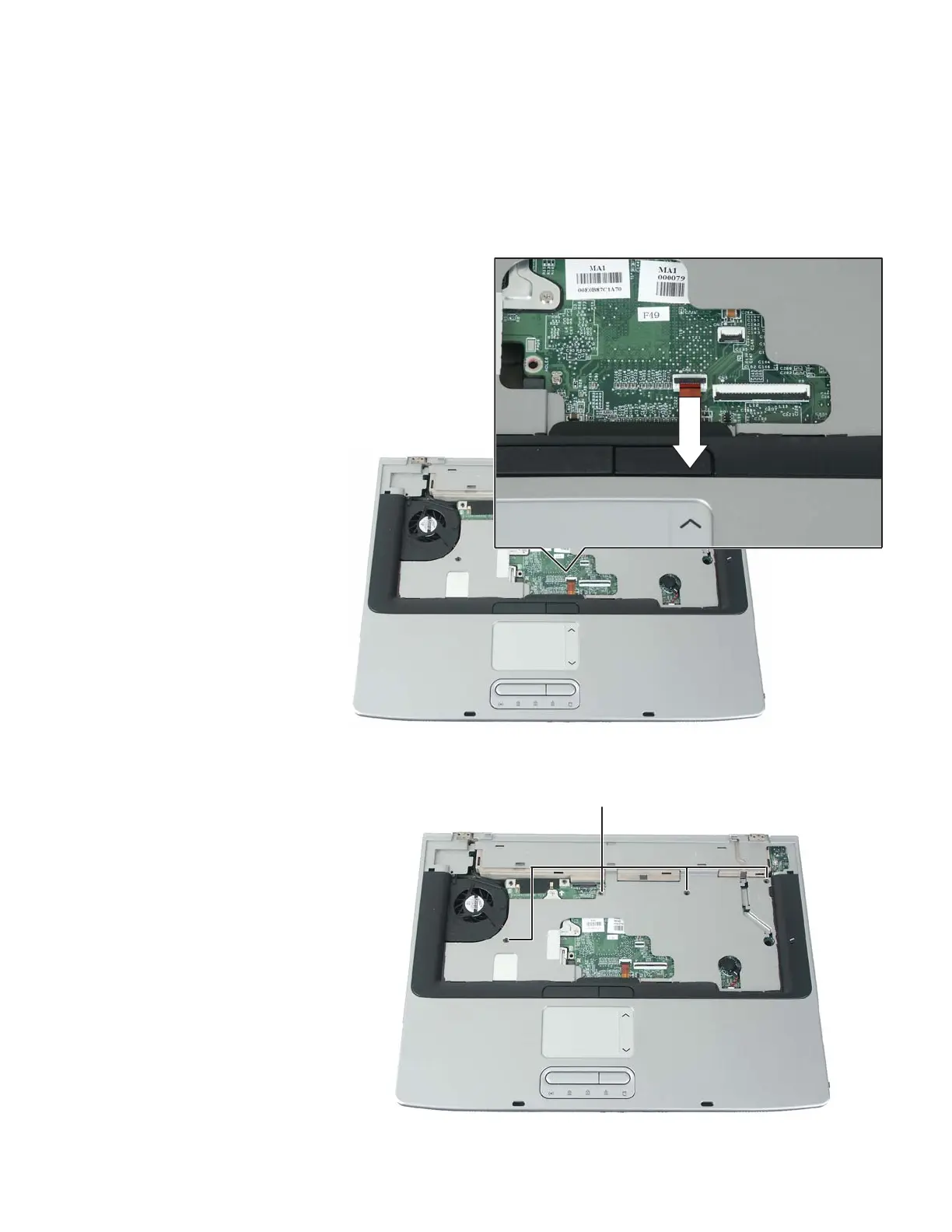

8 Lift the black touchpad connector clip, then remove the cable. Be careful
not to touch or damage any other components.
9 Remove the four screws from the top of the palm rest.
Screws
To Next Page
