GATEXPERT SW200DC - Gate Opens Outwards

Instructions for SW200DC
www.gatexpertstore.com
7

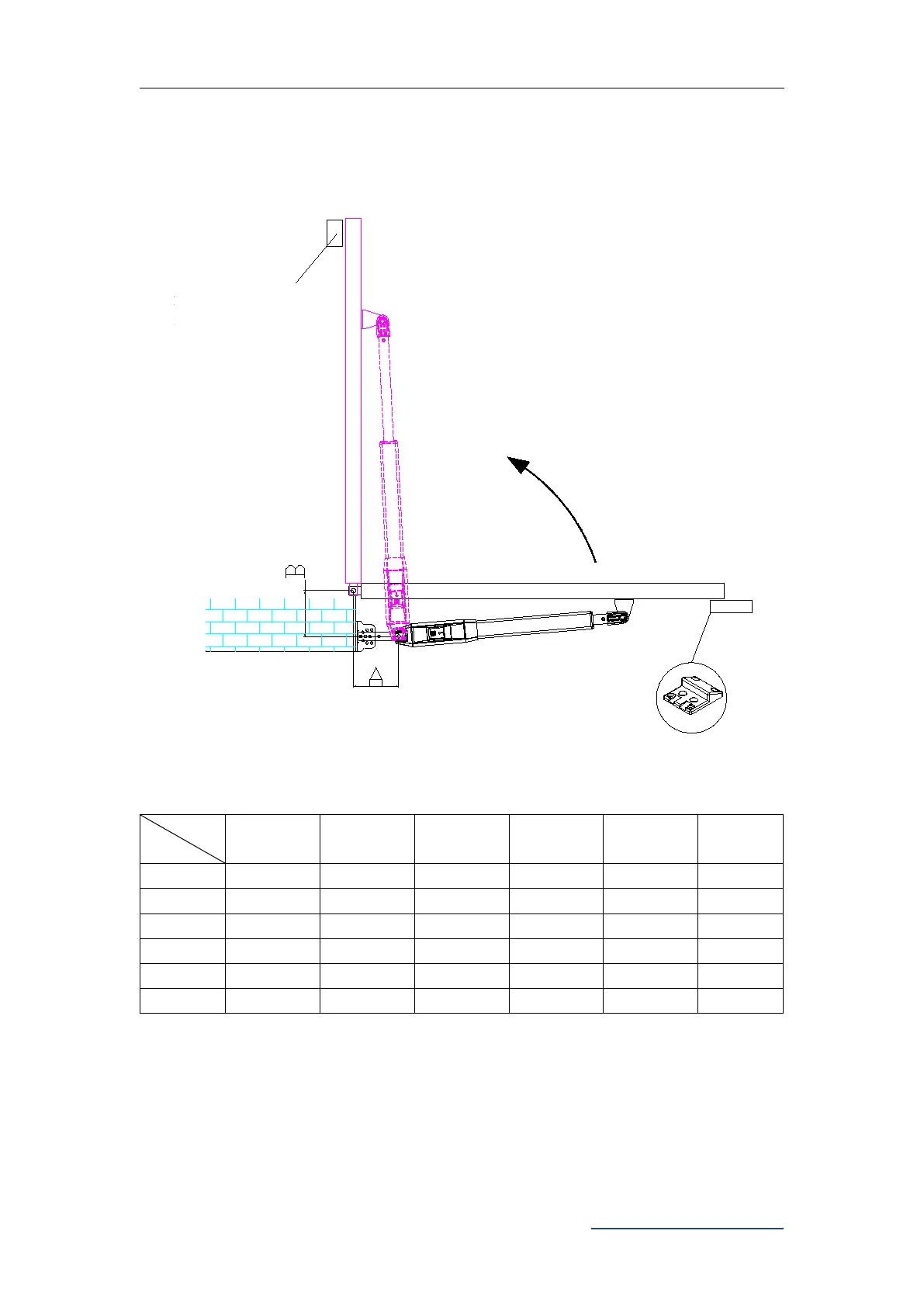

7.2 Gate Opens Outwards
开门方向
开门到位位置必须安
装安全挡块
限位挡块
Figure 3
Recommended Installation Size:
A
B
100mm
120 mm
140 mm
160 mm
180 mm
200 mm
100mm
103°
101°
99.5°
98.5°
97.5°
97°
120mm
111.5°
108.5°
106.5°
105°
103°
100.5°
140mm
118.5°
115°
112.5°
106°
96.5°
160mm
121°
110°
101.5°
93.5°
180mm
106°
98.5°
92°
200mm
96.5°
90.5°
Note: If the interval between the gate and the wall is too small or it has
interference after the gate completely open, please install a gate safety
stopper(prepare by user) to prevent injury to person or
damage to property.
Safety stopper
Gate opening
direction
Limit
stopper
