4.7 Wiring Looms
4.7.1 110VAC operation
4.7.2 12Vdc operation
4.7.3 Programming Loom (optional)
ASY Part #
Description
Host Side Connector Part #
ASY-M-141403
110VAC Power & Signal Loom
AMP 9 Pin, c-172169-1
ASY-M-141404
Programming Loom
Connects to Microcoin VAL 364
ASY-M-141418
12Vdc Power & Signal Loom
Connects to 18 pin port

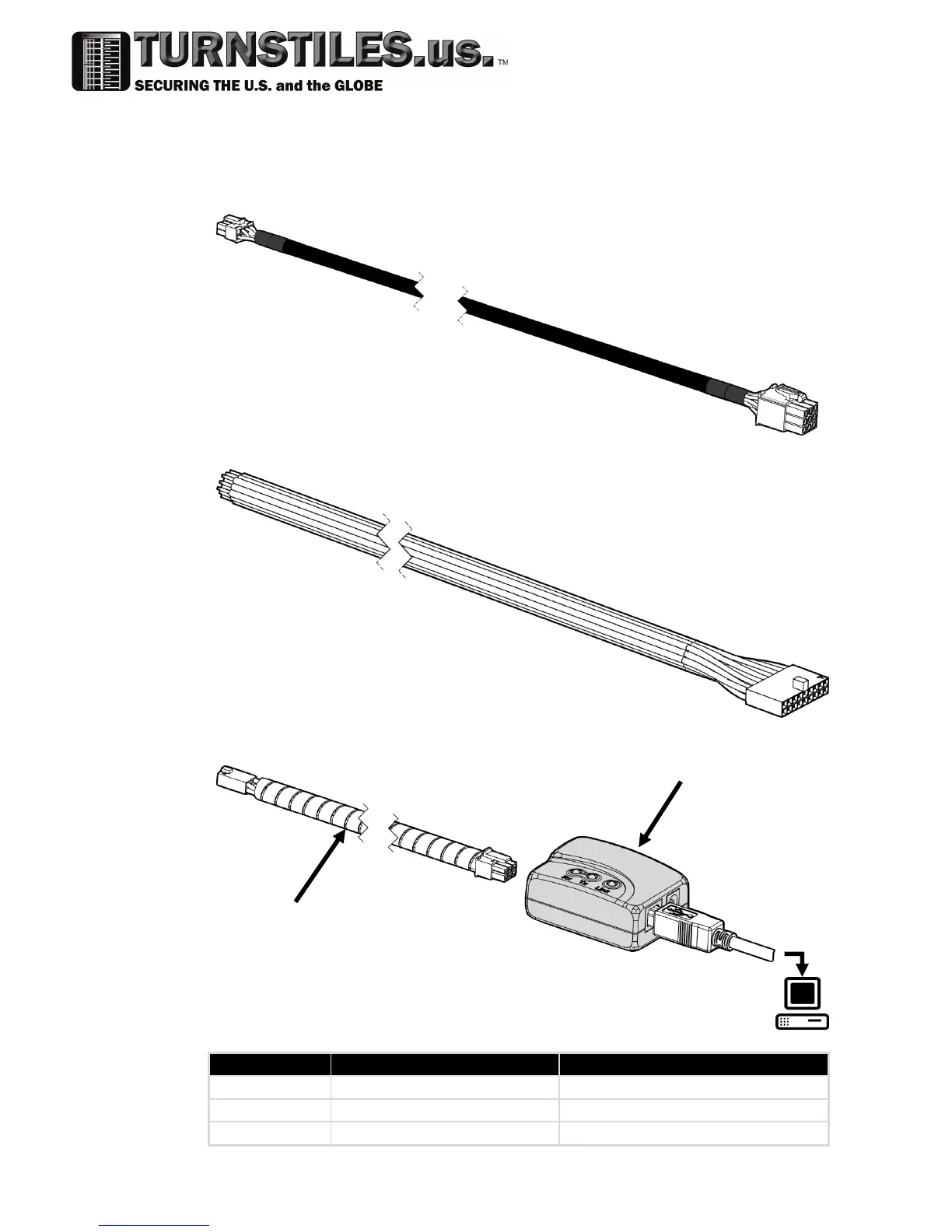

Power & Signal Loom Part # ASY-M-141403
Bill Acceptor Side
Host Side
Bill Acceptor Side
Host Side,
Unterminated
wires
12Vdc Loom Part # ASY-M-141418
Programming Loom
Part # ASY-M-141404
Microcoin
VAL 364
Bill Acceptor
Side
4.7 – Standard wiring looms
