4.2 Product Architecture

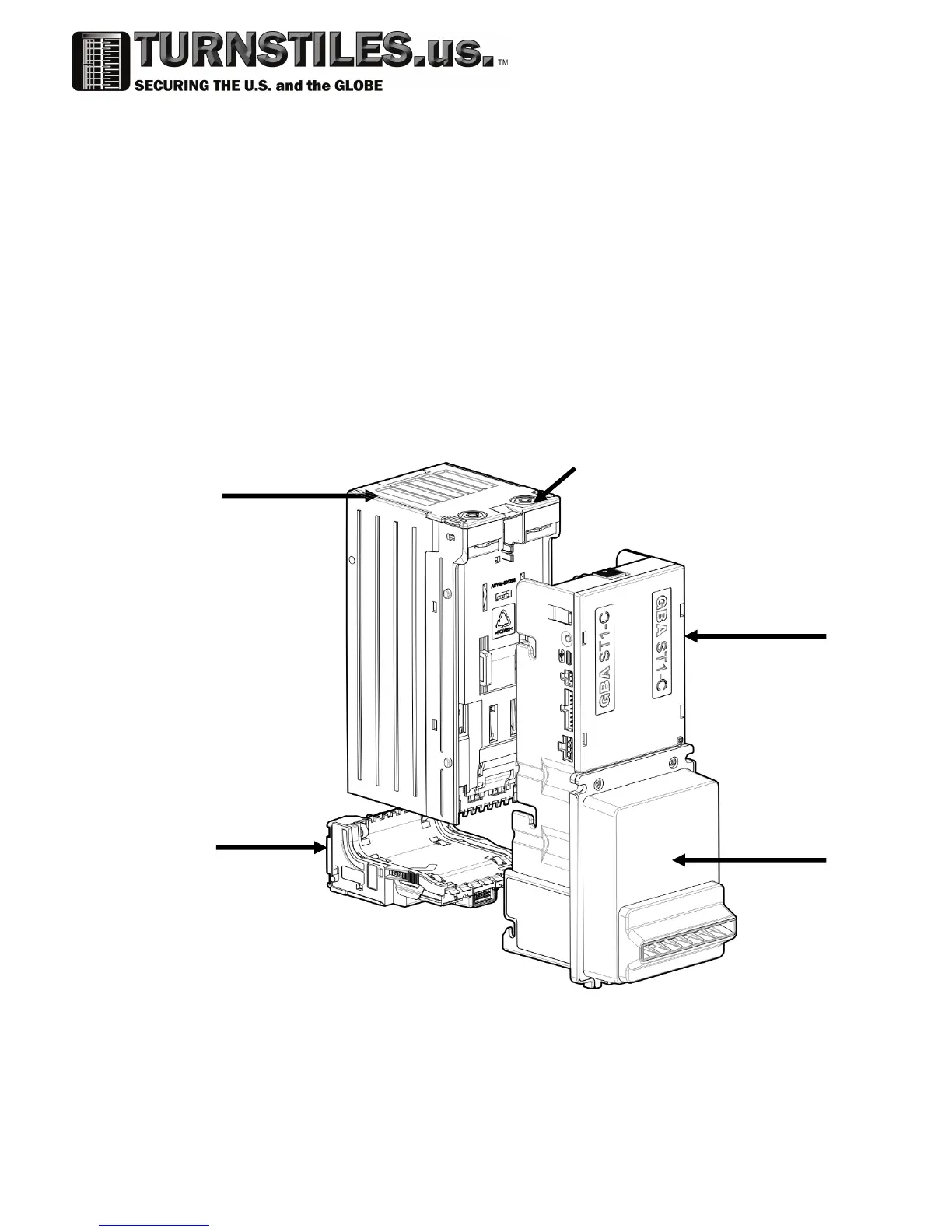

The GBA ST1C-UL bill acceptor is a modular assembly which can be easily accessed for
service and support. It consists of a Main Chassis, Faceplate and Bill Guide, Bottom
Sensor Housing and a Bill Cassette. There are interchangeable items depending upon
the specific application.
① Bill Cassette (100, 300, 600 or 1000 bill capacity)
② Faceplate & matching Bill Guides to suit 66 or 70mm bill widths.
Internal Bill Guides to suit 66mm or 70mm applications
② Faceplate
& Bill Guide
Main Chassis
① Bill Cassette
(Front or rear access)
Bottom Sensor
Housing (With
Internal Bill
Guides)
Optional Cassette Lock
(located at rear for rear access
cassette)
