6.3 Clearing a Bill Jam
1. Ensure the power supply to the GBA ST1C-UL unit is switched OFF.
2. Remove the Cassette.
3. Lift up the purple Access Latch on the back of the Bottom Sensor Assembly,
and gently slide the module out of the Channel Assembly.
4. Clear the jammed bill(s) from the bill acceptor.
5. Re-assemble unit and switch the power supply back ON.

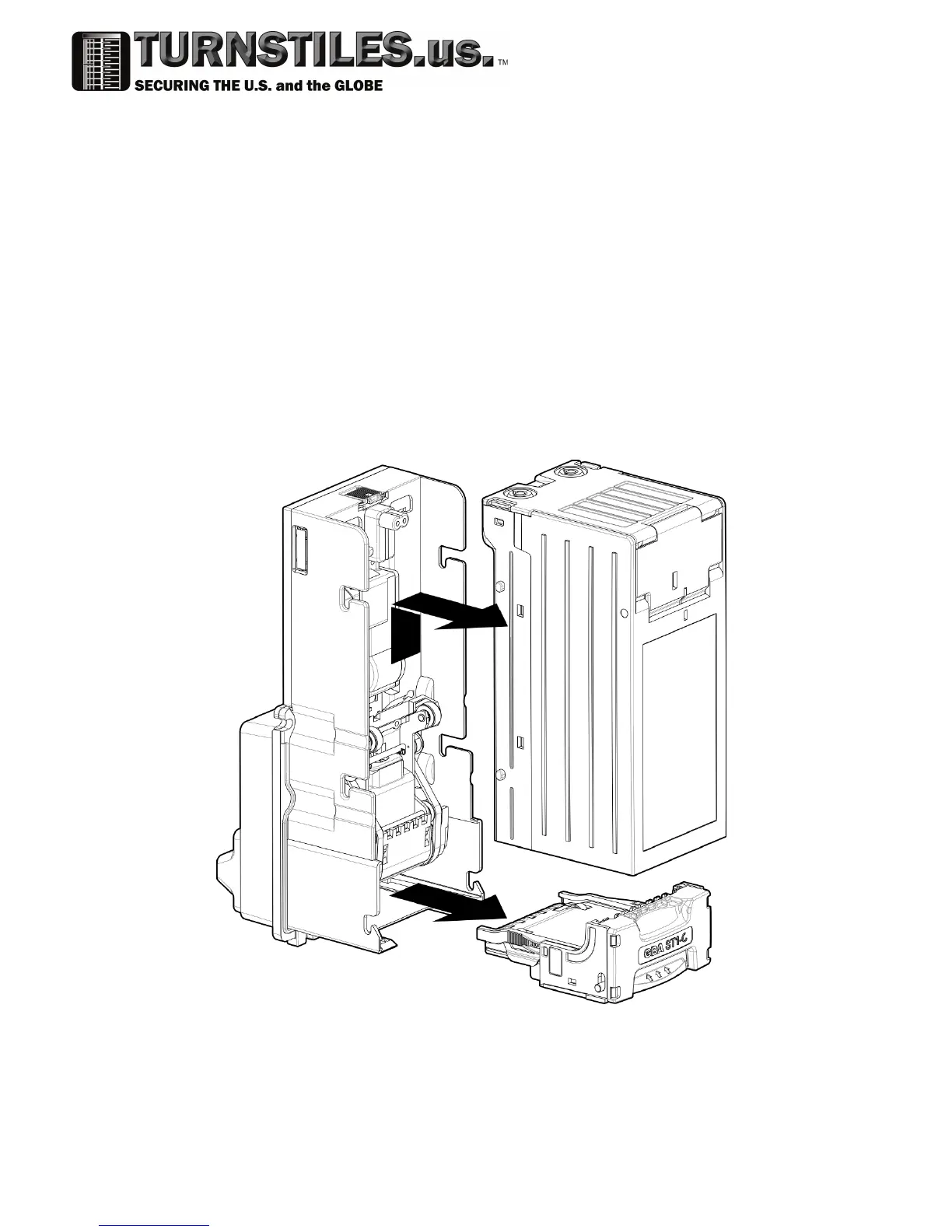

6.3 - Image of bill path access
