8 1200C-2000C Fire Alarm Control Panel and Repeater User Manual
Fire brigade buttons and indicators

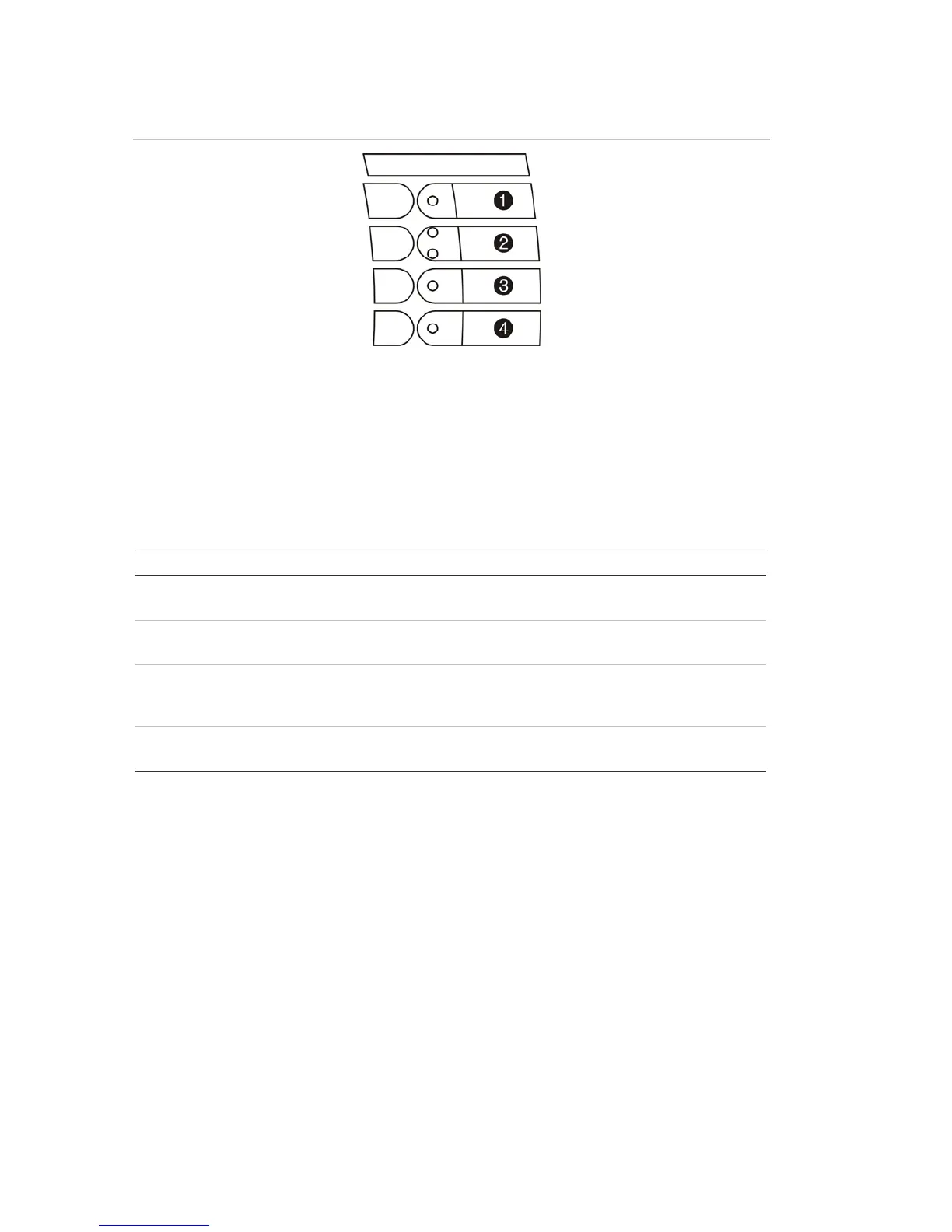

Figure 5: Fire brigade buttons and indicators
1. Signal
2. Delay ON/OFF
3. Fault/Disable
4. Stop fire brigade
Note: Some features can only be accessed if the key switch is enabled (see “Key
switch operation” on page 2).
Table 6: Description of fire brigade LED indicators
LED indicator Key switch position Description
Signal Enabled Push this button to activate the fire brigade notification.
A red LED indicates that a signal has been sent.
Delay ON/OFF The LED indicates that the fire brigade delay has been
toggled ON or OFF.
Fault/Disable Enabled Push this button to disable the fire brigade notification.
The LED is steady when the feature is disabled and
flashes when a fault is detected.
Stop Fire brigade Enabled Push this button to stop the fire brigade notification A
yellow LED indicates that the signal has been stopped.
Note: Functionality of the Signal and Stop Fire Brigade buttons is defined by the
control panel operating mode.
