2 1200C-2000C Fire Alarm Control Panel and Repeater User Manual
User interface controls
Key switch operation
The key switch is used to restrict the operation of the fire panel controls.

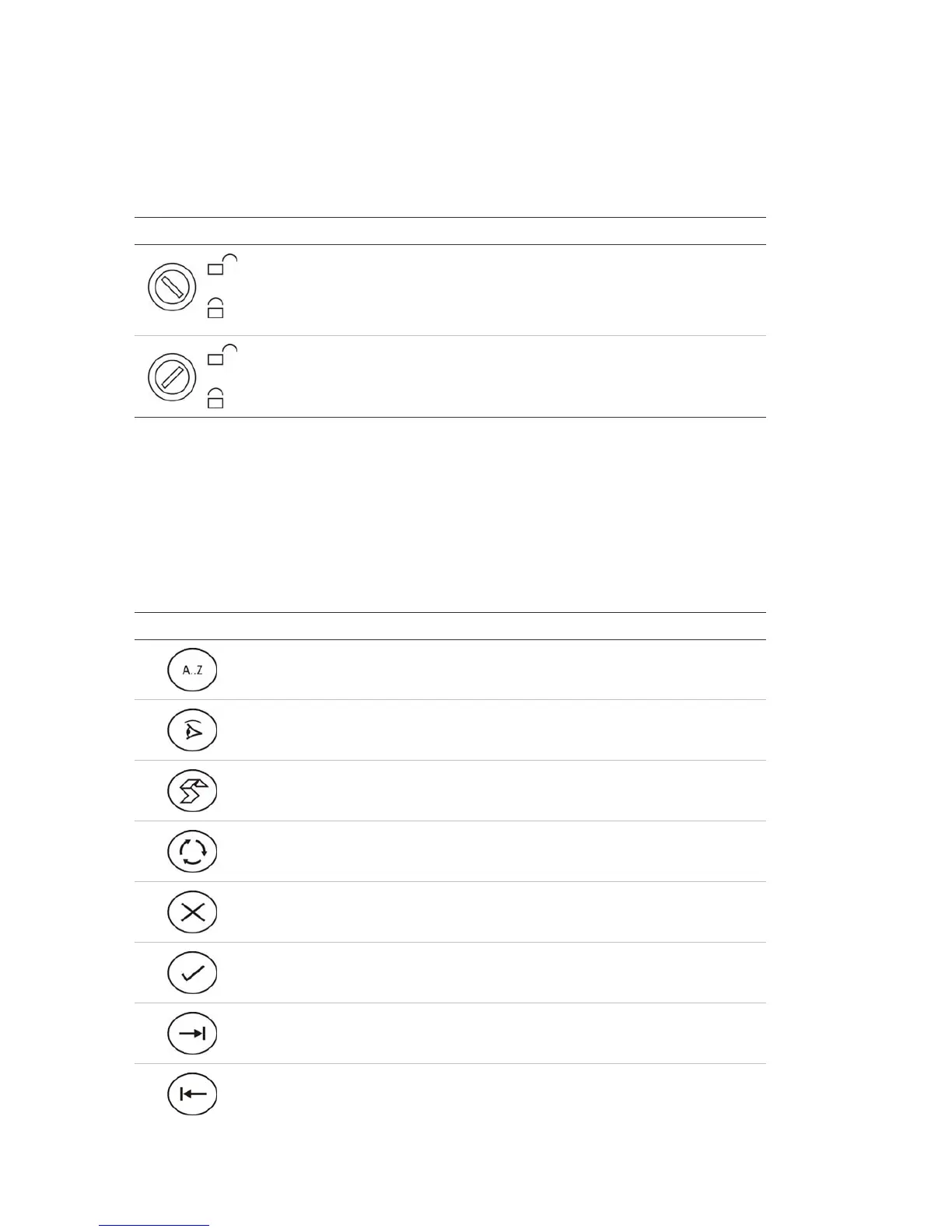

Table 1: Key switch enable/disable
Position Status Description
Disabled Panel operation is restricted.
Enabled Panel operation is not restricted.
The Silence Buzzer and Test buttons operate with the key switch in any position.
User interface controls
The user interface has 20 buttons, 10 of which are alphanumeric. The remaining 10
are described below.
Table 2: Description of the control panel user interface controls
Button Description
Alpha selection (when using the alphanumeric buttons)
Display the most recent alarm
Print the current screen
Scroll between Alarm, Fault and Conditions. View additional information when the
"MORE" prompt appears on the LCD screen.
Exit a menu
Enter or confirm a value or selection
Move to the next field on the LCD screen
Move to the previous field on the LCD screen
To Next Page
