GE Power Management 750/760 Feeder Management Relay 16-
71
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
2Even
F28 VT CONNECTION TYPE
0 None
1Wye
2Delta
F29 760 OPERATION
0 Not Ready
1 Ready
F30 ENABLED/DISABLED
0 0 = Disabled
1 1 = Enabled
F31 BAUD RATE
0300 Baud
1 1200 Baud
2 2400 Baud
3 4800 Baud
4 9600 Baud
5 19200 Baud
F32 DEFAULT MESSAGE
Internally Defined
F33 ASCII TEXT CHARACTERS
00FFh Second ASCII Character
FF00h First ASCII Character
F34 RELAY NON-OPERATED STATE
0 De-energized
1 Energized
F35 RELAY OUTPUT TYPE
0 Self-Resetting
1Latched
2Pulsed
F36 OVERCURRENT CURVE SHAPE
0 Extremely Inverse
1Very Inverse
2Normally Inverse
3 Moderately Inverse
4 Definite Time
5IEC Curve A

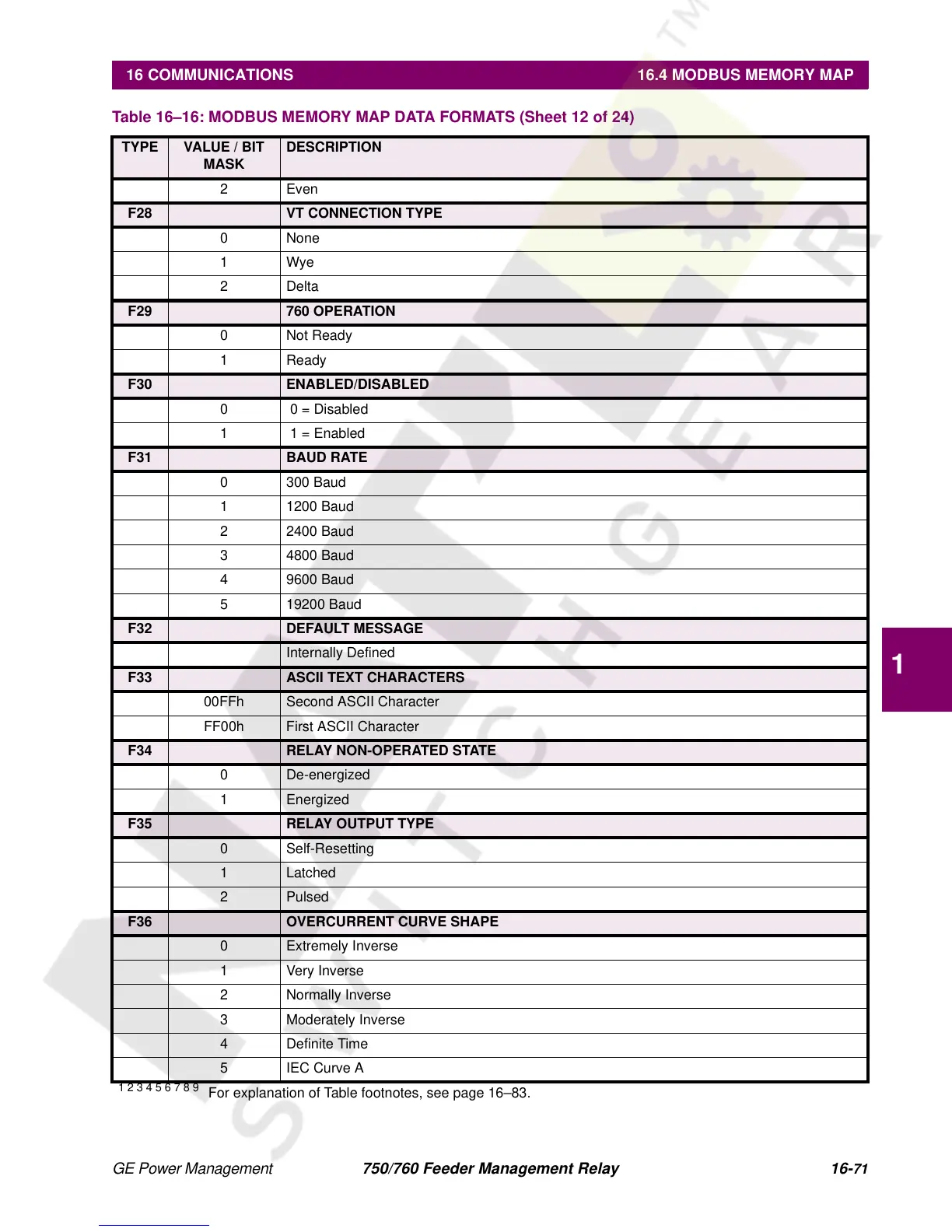

Table 16–16: MODBUS MEMORY MAP DATA FORMATS (Sheet 12 of 24)
TYPE VALUE / BIT
MASK
DESCRIPTION
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–83.
