8-16 869 MOTOR PROTECTION SYSTEM – COMMUNICATIONS GUIDE
THE IEC 61850 CONFIGURATOR CHAPTER 8: IEC 61850
All the available parameters of the Report control block are displayed when clicking
“Report Advanced Configuration”. Respective OptFields, TrgOps can be configured by
either selecting “True” or “False”. Buffer time is given in milliseconds.

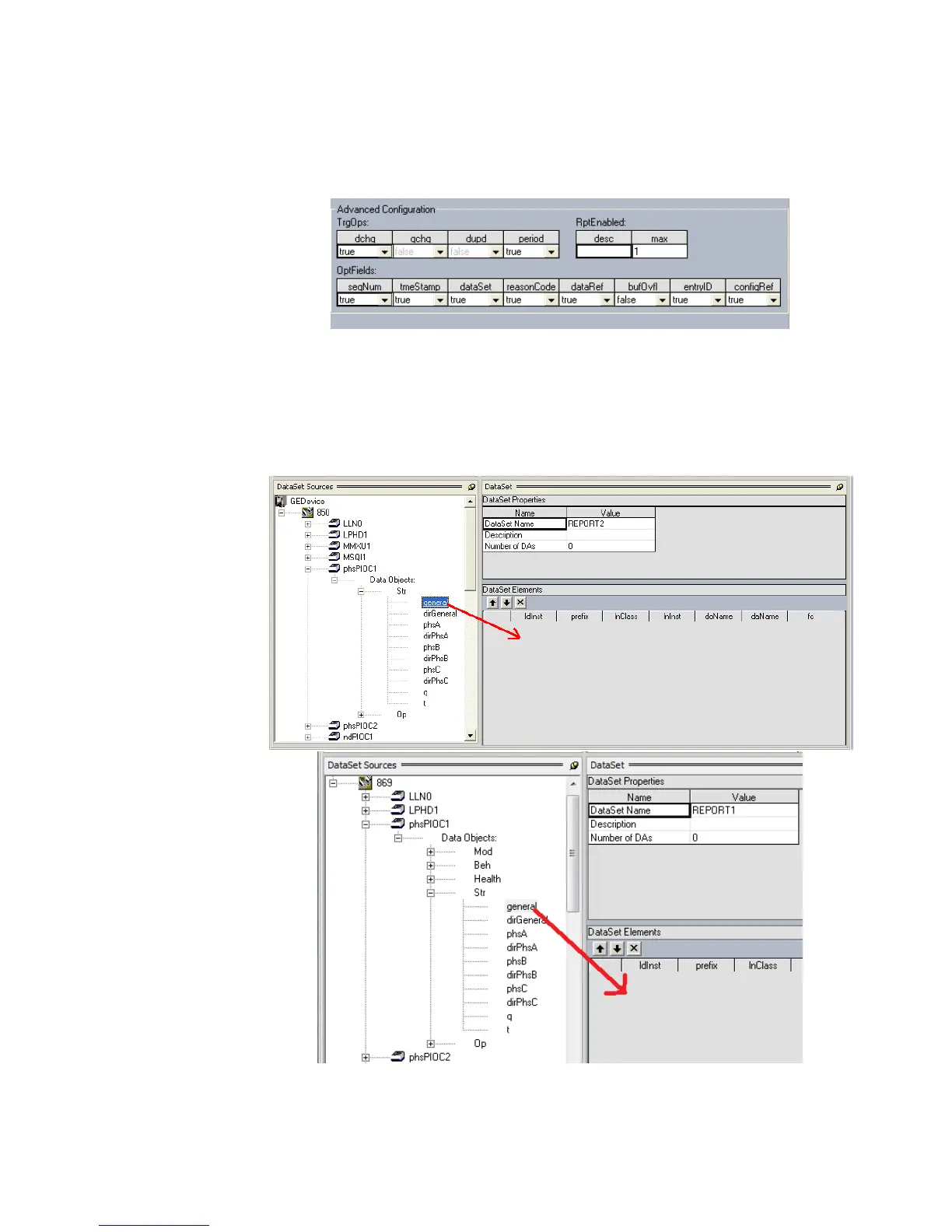

Figure 8-7: Advanced Configuration
Configure Dataset Items
1. Select the required logical node under GEDevice > 869 tree.
2. Go to the required dataset item.
3. Drag and drop the item to the “DataSet Elements” section, see the following DataSet
Sources/DataSet figure.
Figure 8-8: DataSet Sources Window
Change the Order of Configured Dataset Items
1. Select the row in which the order is to be changed.
