CHAPTER 8: IEC 61850 THE IEC 61850 CONFIGURATOR
869 MOTOR PROTECTION SYSTEM – COMMUNICATIONS GUIDE 8-17
2. Use the “up” arrow if you want to shift the row to the top. Use the “down” arrow to shift
the row down.

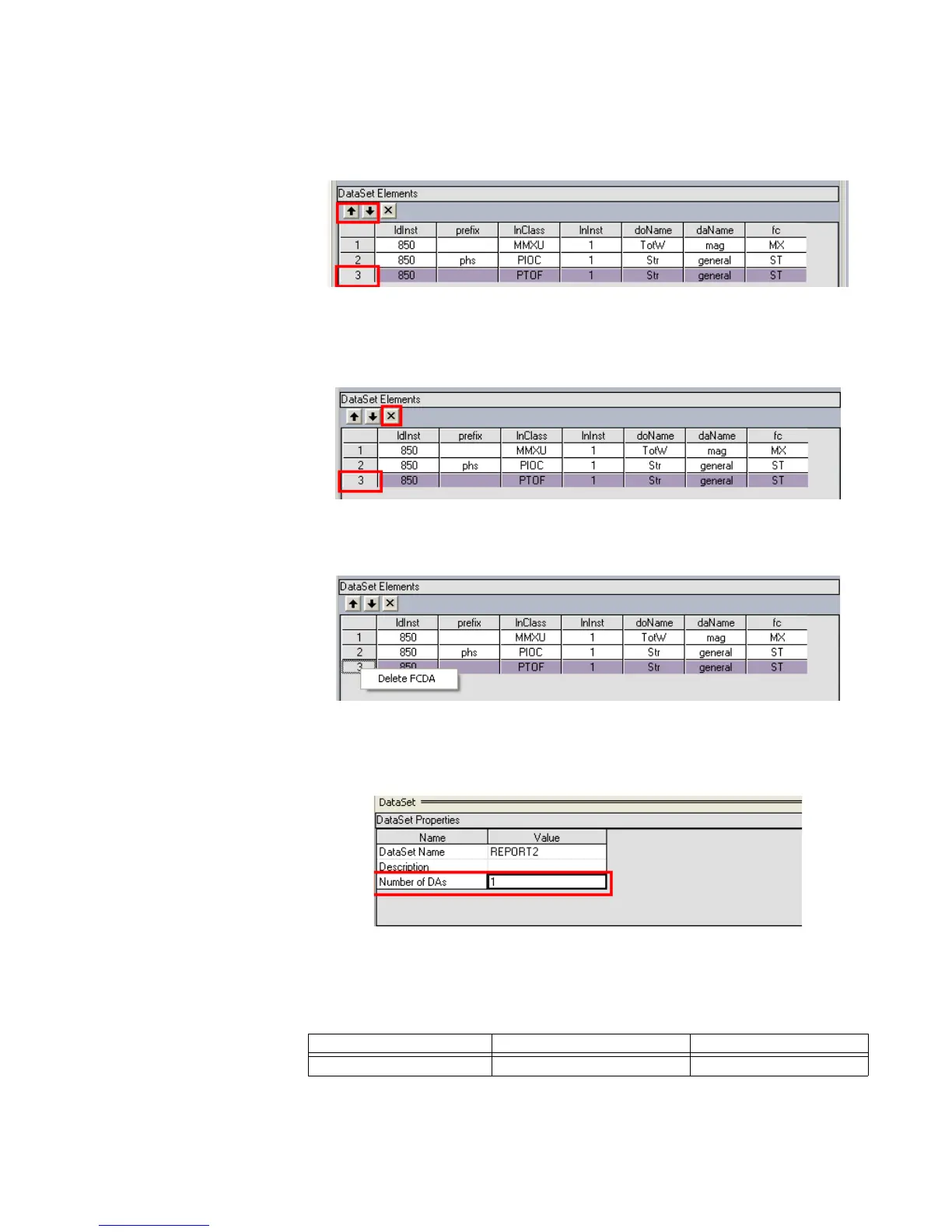

Figure 8-9: Re-order DataSet Items
Delete a Dataset Item
The following list gives the two methods that can be used to delete a dataset item.
• Select the row in which the dataset item is to be deleted and click the “x” button.
Figure 8-10: Delete a Dataset Item
• Select the row in which the dataset item is to be deleted then right click and select the
displayed “Delete FCDA” option.
Figure 8-11: Delete FCDA Option
Number of DAs Counter
Depending on the configured dataset items, the “Number of DAs” counter increases
automatically.
Figure 8-12: Dataset Properties
Maximum Report Control Blocks
The 869 relay supports a maximum of 4 report control blocks. Buffered and unbuffered
reports are both included in the maximum. The user can configure reports based on the
Report Configurations Supported table as follows.
Table 8-4: Report Configurations Supported
Buffered Report Unbuffered Report Total Reports
4 0 4
