GE Advantium 240 - Component Identification and Access; Component Locator Views

– 17 –

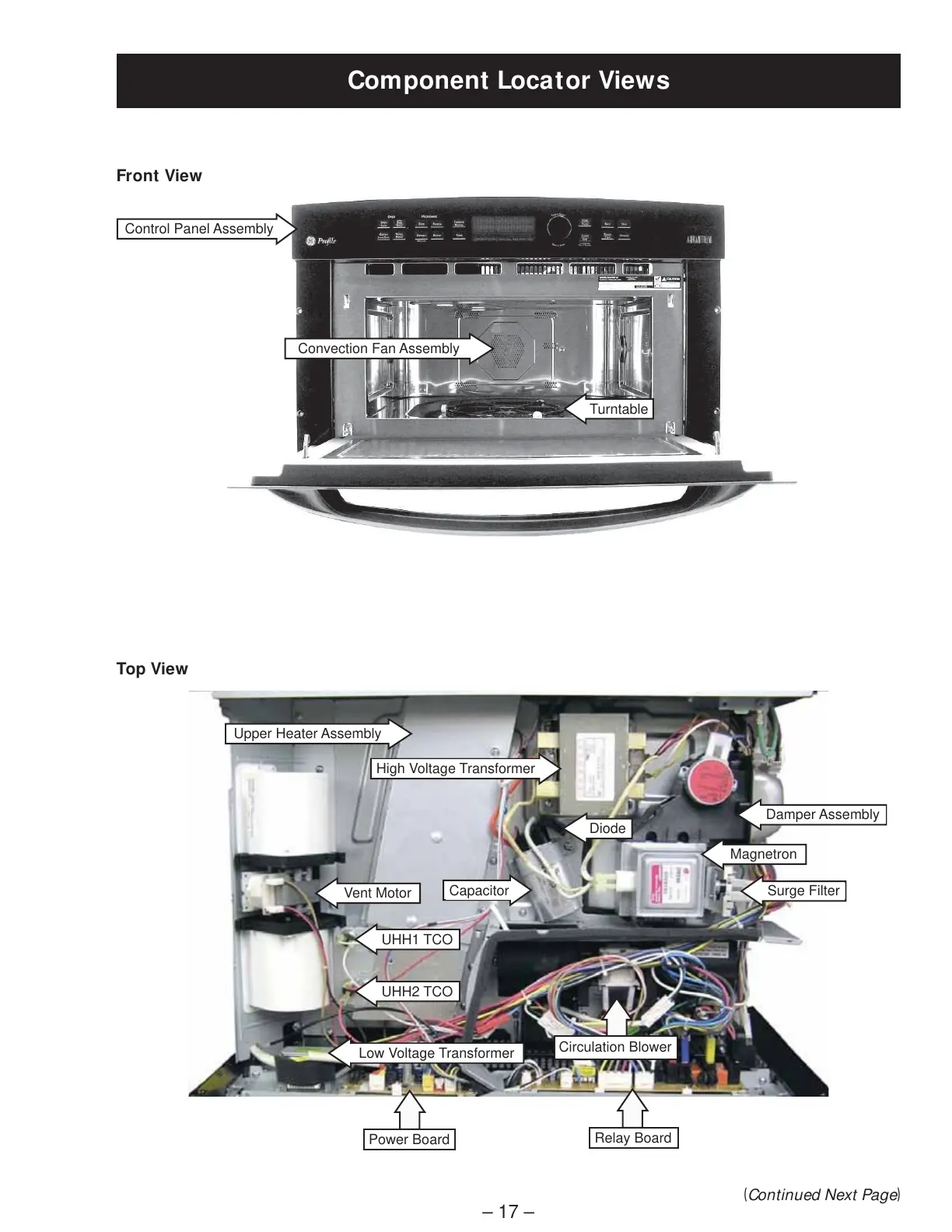

Component Locator Views
Front View
(Continued Next Page)
Control Panel Assembly
Convection Fan Assembly
Turntable
High Voltage Transformer
Magnetron
Capacitor
Diode
Damper Assembly
Low Voltage Transformer
Upper Heater Assembly
Relay Board
Power Board
Top View
Vent Motor
UHH1 TCO
UHH2 TCO
Surge Filter
Circulation Blower
