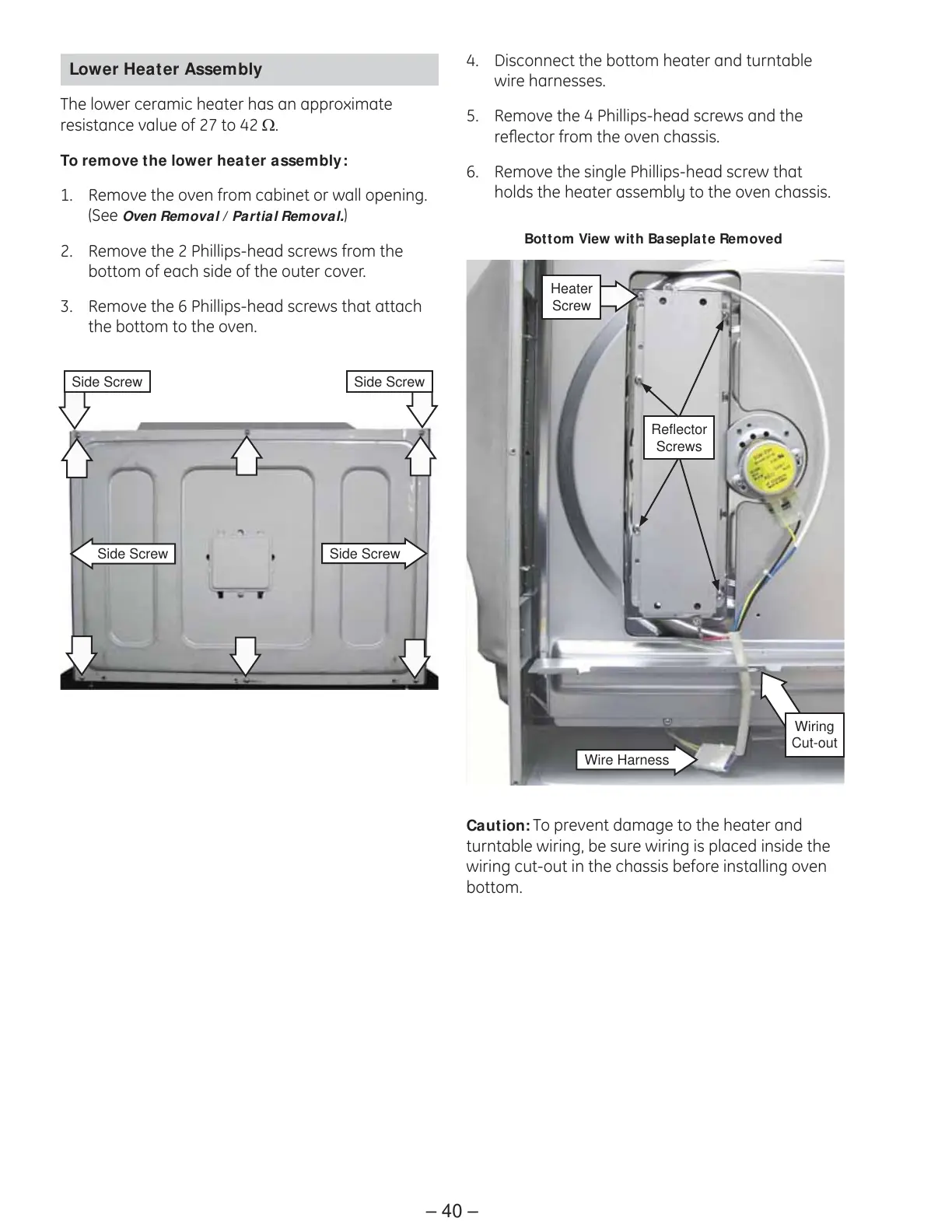

Lower Heater Assembly
The lower ceramic heater has an approximate
resistance value of 27 to 42 Ω.
To remove the lower heater assembly:
Remove the oven from cabinet or wall opening. 1.
(See Oven Removal / Partial Removal.)
Remove the 2 Phillips-head screws from the 2.
bottom of each side of the outer cover.
Remove the 6 Phillips-head screws that attach 3.
the bottom to the oven.
Disconnect the bottom heater and turntable 4.
wire harnesses.
Remove the 4 Phillips-head screws and the 5.
refl ector from the oven chassis.
Remove the single Phillips-head screw that 6.
holds the heater assembly to the oven chassis.
Bottom View with Baseplate Removed
Heater
Screw
Refl ector
Screws
Wire Harness
Caution: To prevent damage to the heater and
turntable wiring, be sure wiring is placed inside the
wiring cut-out in the chassis before installing oven
bottom.
Wiring
Cut-out
Side Screw
Side Screw
Side Screw
Side Screw
