GE Advantium 240 - Control Boards Servicing; Power, Relay, Control, and Display Boards

– 20 –
Power Board
CN3 - Low Voltage Transformer #1 (Secondary Windings)
CN7 - Door Switch, Damper Switch
CN8 - Humidity Sensor
CN9 - Thermistor
CN21 - Control Board

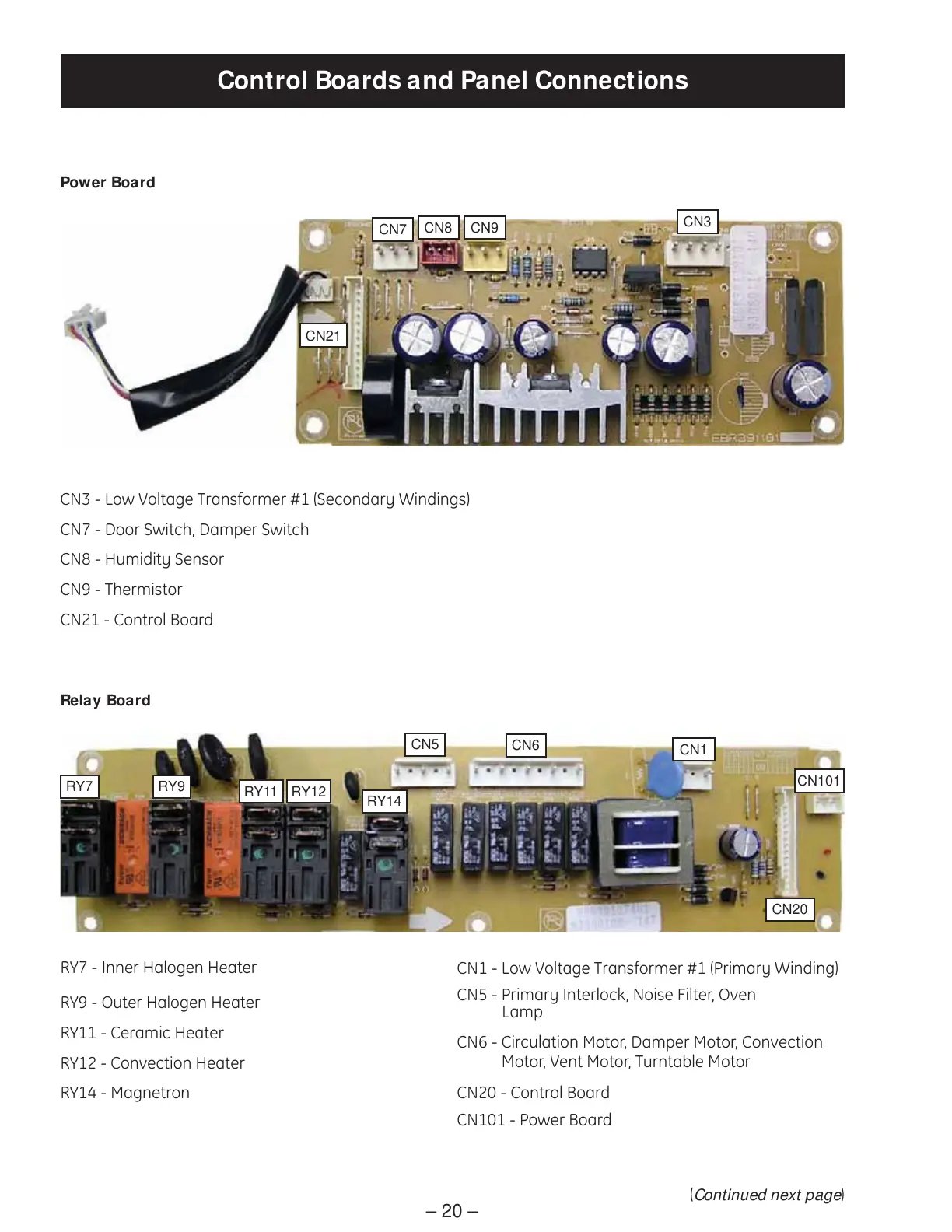

Control Boards and Panel Connections
(Continued next page)
Relay Board
CN1
CN5
RY7
RY7 - Inner Halogen Heater
RY9 - Outer Halogen Heater
RY11 - Ceramic Heater
RY12 - Convection Heater
RY14 - Magnetron
CN3
CN9CN8
CN7
CN21
RY9
RY11 RY12
RY14
CN6
CN20
CN101
CN1 - Low Voltage Transformer #1 (Primary Winding)
CN5 - Primary Interlock, Noise Filter, Oven
Lamp
CN6 - Circulation Motor, Damper Motor, Convection
Motor, Vent Motor, Turntable Motor
CN20 - Control Board
CN101 - Power Board
