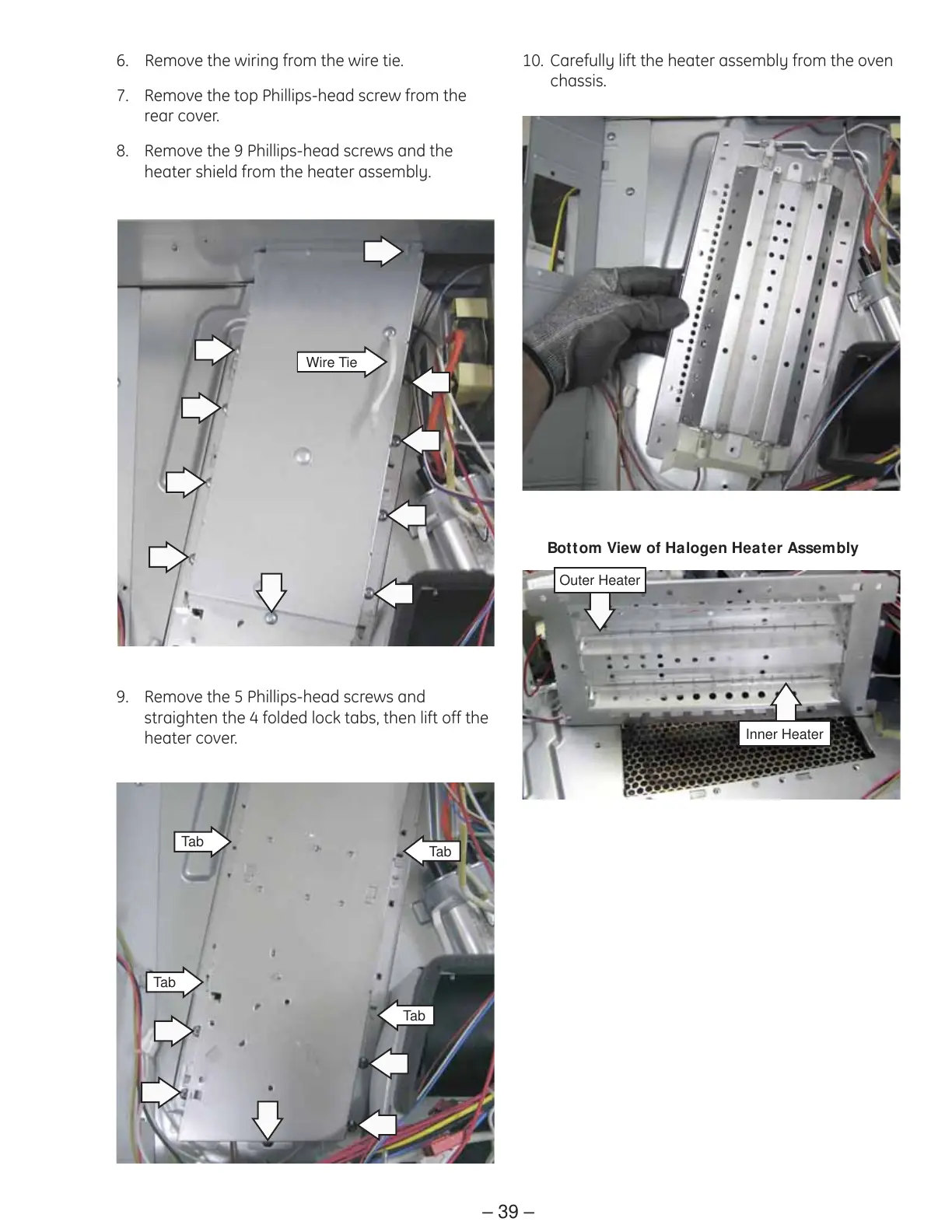

6. Remove the wiring from the wire tie.
7. Remove the top Phillips-head screw from the
rear cover.
8. Remove the 9 Phillips-head screws and the
heater shield from the heater assembly.
9. Remove the 5 Phillips-head screws and
straighten the 4 folded lock tabs, then lift off the
heater cover.
Tab
Tab
Tab
Tab
10. Carefully lift the heater assembly from the oven
chassis.
Bottom View of Halogen Heater Assembly
Wire Tie
Inner Heater
Outer Heater
To Next Page
