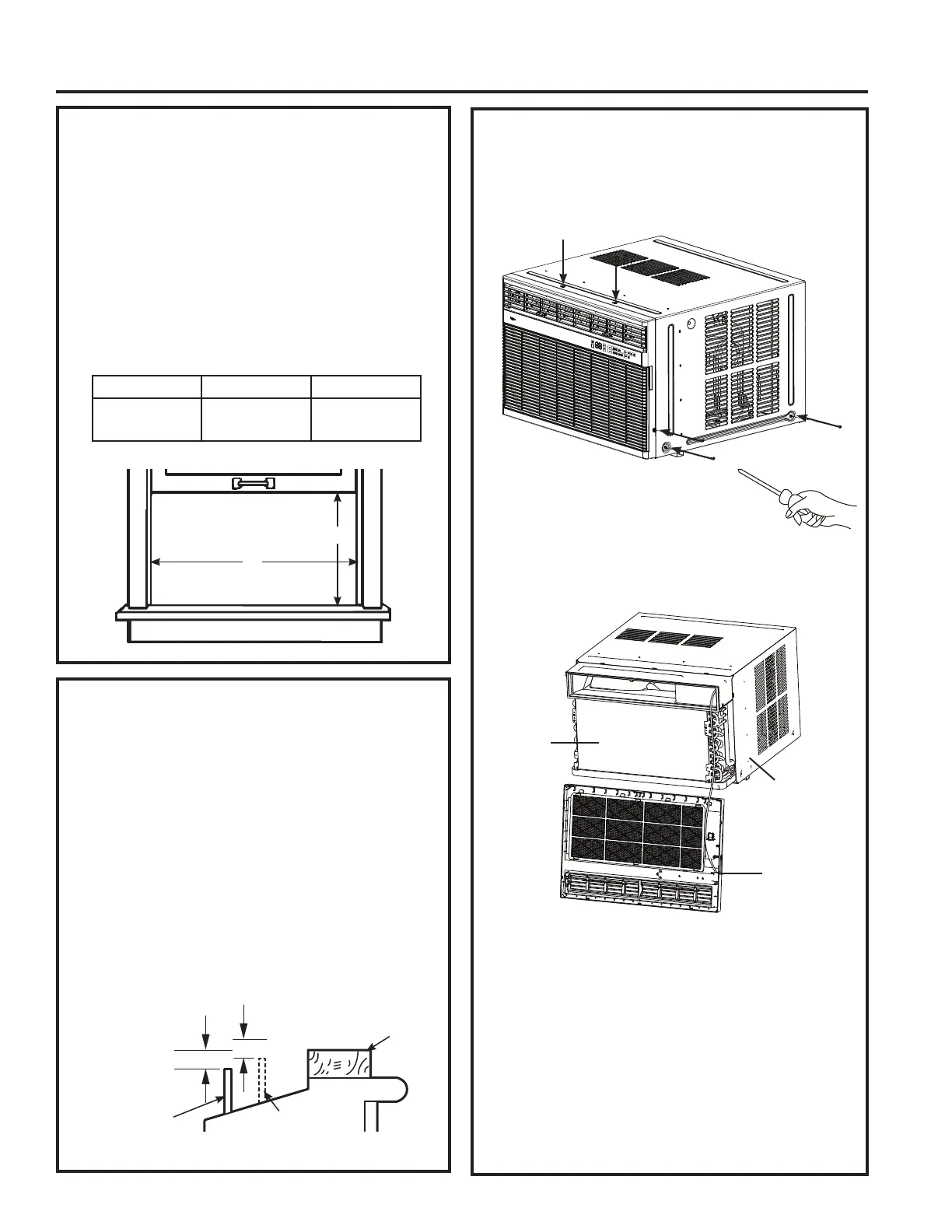

INSTALLATION INSTRUCTIONS
Installation Instructions
3. PREPARE THE AIR
CONDITIONER
A. Remove three screws on each side of the case,
and two screws from the top. Save the screws
for use later..
B. Insert a flat head screw driver between the front
grille and the metal case along the sides. Gently
pry the grille from the case.
NOTE: Cover the flat head screw driver with
tape to prevent scratching the case.
C. The front panel of the air conditioner is corded to
the air conditioner. They cannot be separated.
D. While one person holds the front panel, have a
second person pull the air conditioner out of the
case using the handle on the bottom front of the
air conditioner.
E. The air conditioner is very heavy so make sure
that it will be resting on a sturdy surface.
1. WINDOW REQUIREMENTS
• These instructions are for a standard
double-hung window. You will need to modify
them for other types of windows.
• The air conditioner can be installed without the
side curtain panels if needed to fit in a narrow
window. See the window opening dimensions.
• All supporting parts must be secured to firm
wood, masonry or metal.
• The electrical outlet must be within reach of
the power cord.
• Follow the dimensions in the table and
illustration for your model.
2. STORM WINDOW
REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will
keep it from draining properly. To adjust for
this, attach a piece of wood to the sill.
WOOD PIECES
WIDTH: 2Ǝ
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness,
SODFHDSLHFHRIZRRGRQWKHVLOOWRPDNHLWƎ
higher than the top of the storm window frame
or the vinyl frame.
Attach securely with nails or screws provided
by the installer.
A
(With side curtain panels)
B
ƎKLJKHU
than storm
window
frame
Storm window
frame
Wood
Sill
ƎKLJKHU
than vinyl frame
(on some windows)
9LQ\OIUDPH
Models A B
AHC18
AHC24
´PLQ ´´
Front Panel
or Grill
Case
Air
Conditioner
Save these screws
for later use.
