49-7763-1 9
Installation Instructions
INSTALLATION INSTRUCTIONS

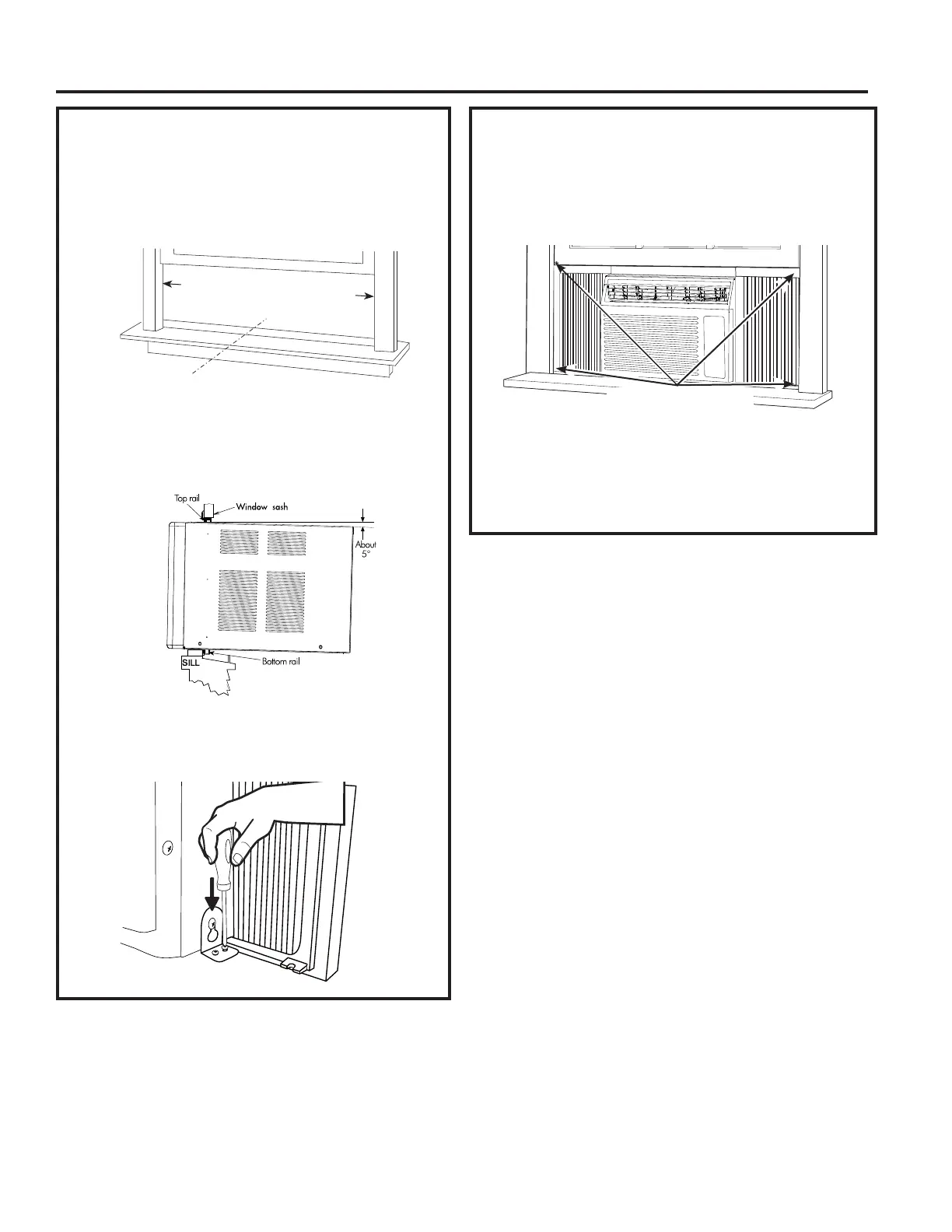

4. INSTALL THE AIR CONDITIONER
IN THE WINDOW
A. Measure the width of the window opening and
mark the center line on the inside window sill.
Place the unit in the window. Lower the window
to hold unit in place.
B. Set the air conditioner in the window so that is
centered. Place the air conditioner so that front
edge of the bottom mounting rail is against the
back edge of the sill.
C. Install the side bracket into the unit and into the
window sill using two 1” wood screws provided.
repeate on other side.
Width of window opening
Center line
4. INSTALL THE AIR CONDITIONER
IN THE WINDOW (continues)
D. Bring the window down so that the front edge of
the top mounting is in front of the window. Make
sure that the air conditioner is level or tilting
slightly to the outside.
E. ([WHQGWKHFXUWDLQSDQHOVXQWLOWKH\ILOOWKH
window. Mark the location of the holes in each
FRUQHU8VHWKHGULOODQG´GULOOELWWRGULOOSLORW
KROHV8VHW\SH%VFUHZVWRVHFXUHWKHVLGH
panels in place.
Type B screws
To Next Page
