GE AMX 4+ User Manual

AMX−4+ PERIODIC MAINTENANCE
GE Healthcare MODELS: 2169360, 2236420 & 2275938
DIRECTION 2173227−100
1
REV 10
SECTION 1 − INTRODUCTION
1-1 Identification
See Illustration 1−1. The AMX−4+ is identified by Model Number on the rating plate located on the top cover.
Model part and catalog numbers are identified in Table 1−1.
TABLE 1−1
AMX−4+ MODELS
Description Part number catalog number Part number catalog number
domestic 2169360−7 A0659F 2236420−7 & 2275938−7 A0659JF
domestic, aec 2169360−8 A0659FA 2236420−8 & 2275938−8 A0659JG
domestic, tech switch 2169360−9 A0659FC 2236420−9 & 2275938−9 A0659JH
domestic, aec, tech switch 2169360−10 A0659FB 2236420−10 & 2275938−10 A0659JJ
iec, emc 2169360 A0659A 2236420 & 2275938 A0659J
iec, emc, aec 2169360−2 A0659AA 2236420−2 & 2275938−2 A0659JA
iec, emc, tech switch 2169360−3 A0659AB 2236420−3 & 2275938−3 A0659JB
iec, emc, aec, tech switch 2169360−4 A0659AC 2236420−4 & 2275938−4 A0659JC
japan 2169360−5 A0659C 2236420−5 & 2275938−5 A0659JD
japan short column 2169360−6 A0659D 2236420−6 & 2275938−6 A0659JE

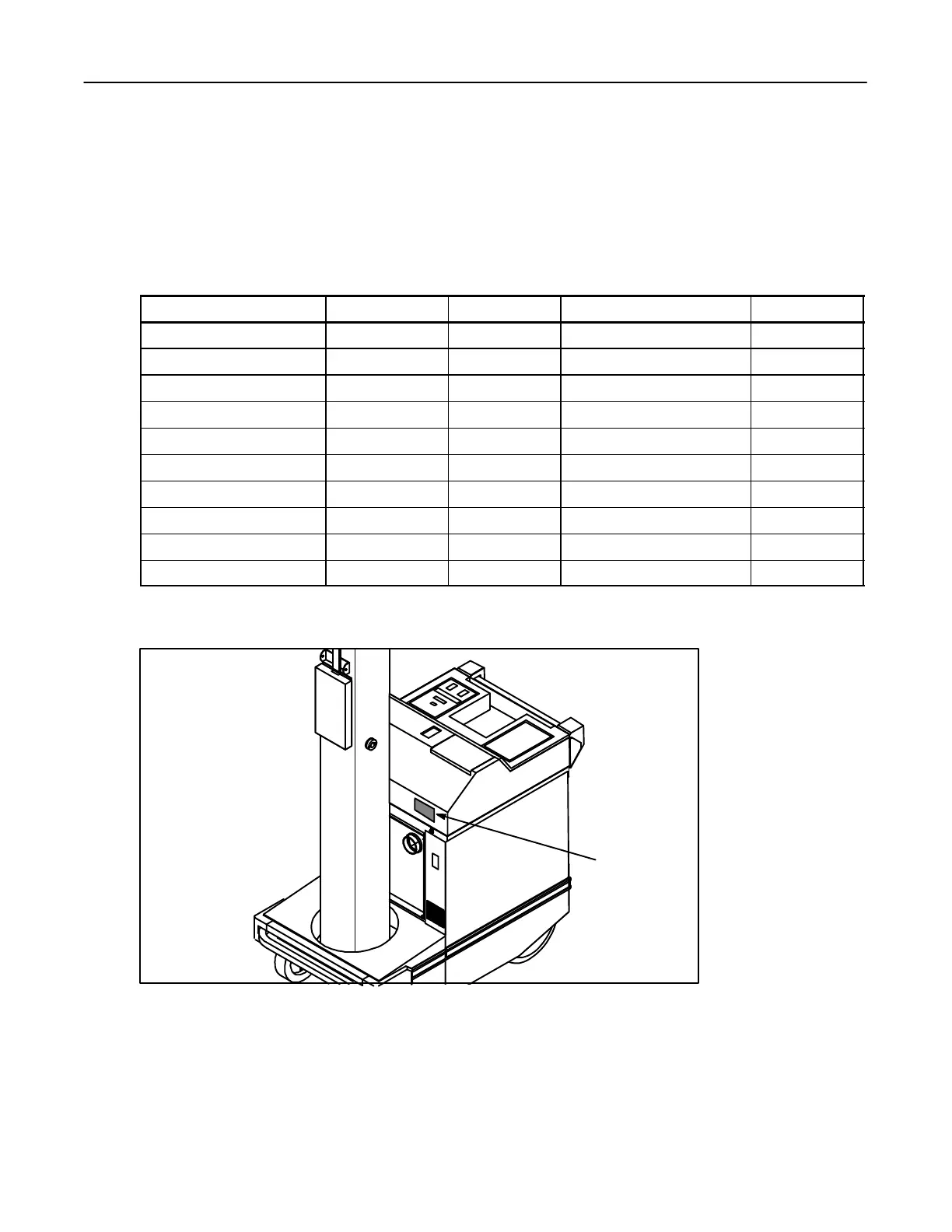

ILLUSTRATION 1−1
AMX−4+ IDENTIFICATION
RATING
PLATE
1-2 General
The AMX−4+ contains operating safeguards to provide maximum safety. Before calling for service, be certain
proper operating procedures are being used. Refer to Direction 2166913−1EN, AMX−4+ Operation, or Direction
2166911−100, AMX−4+ International Operation, for proper operating procedures.

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
