GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-ll X-RAY UNIT
3-1684 SM A0654E
A indicates Change

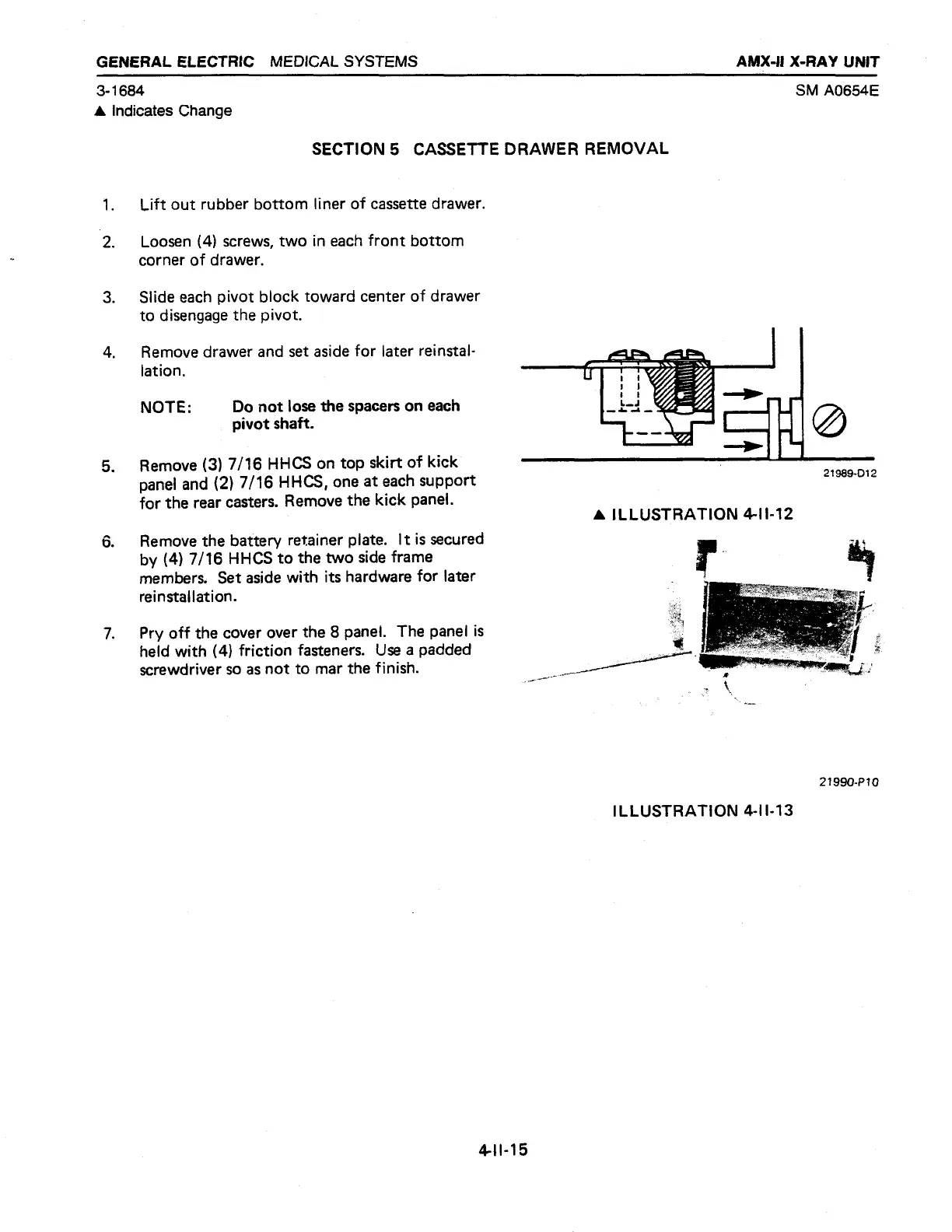

SECTION 5 CASSETTE DRAWER REMOVAL
1. Lift out rubber bottom liner of cassette drawer.
2. Loosen (4) screws, two in each front bottom
corner of drawer.
3. Slide each pivot block toward center of drawer
to disengage the pivot.
4. Remove drawer and set aside for later reinstal-
lation.
NOTE: Do not lose the spacers on each
pivot shaft.
2
21989-D12
5.
Remove
(3)
7/16
HHCS
on
top
skirt
of
kick
panel
and
(2)
7/16
HHCS,
one
at
each
support
for
the
rear
casters.
Remove
the
kick
panel.
&
ILLUSTRATION
4-11-12
Remove
the
battery
retainer
plate.
It
is
secured
by
(4)
7/16
HHCS
to
the
two
side
frame
members.
Set
aside
with
its
hardware
for
later
reinstallation.
©
7. Pry off the cover over the 8 panel. The panel is
held with (4) friction fasteners. Use a padded
screwdriver so as not to mar the finish.
21990-P 10
ILLUSTRATION 4-11-13
411-15
