GENERAL ELECTRIC MEDICAL SYSTEMS AMX-ll X-RAY UNIT
7-1576 . SM A0654E

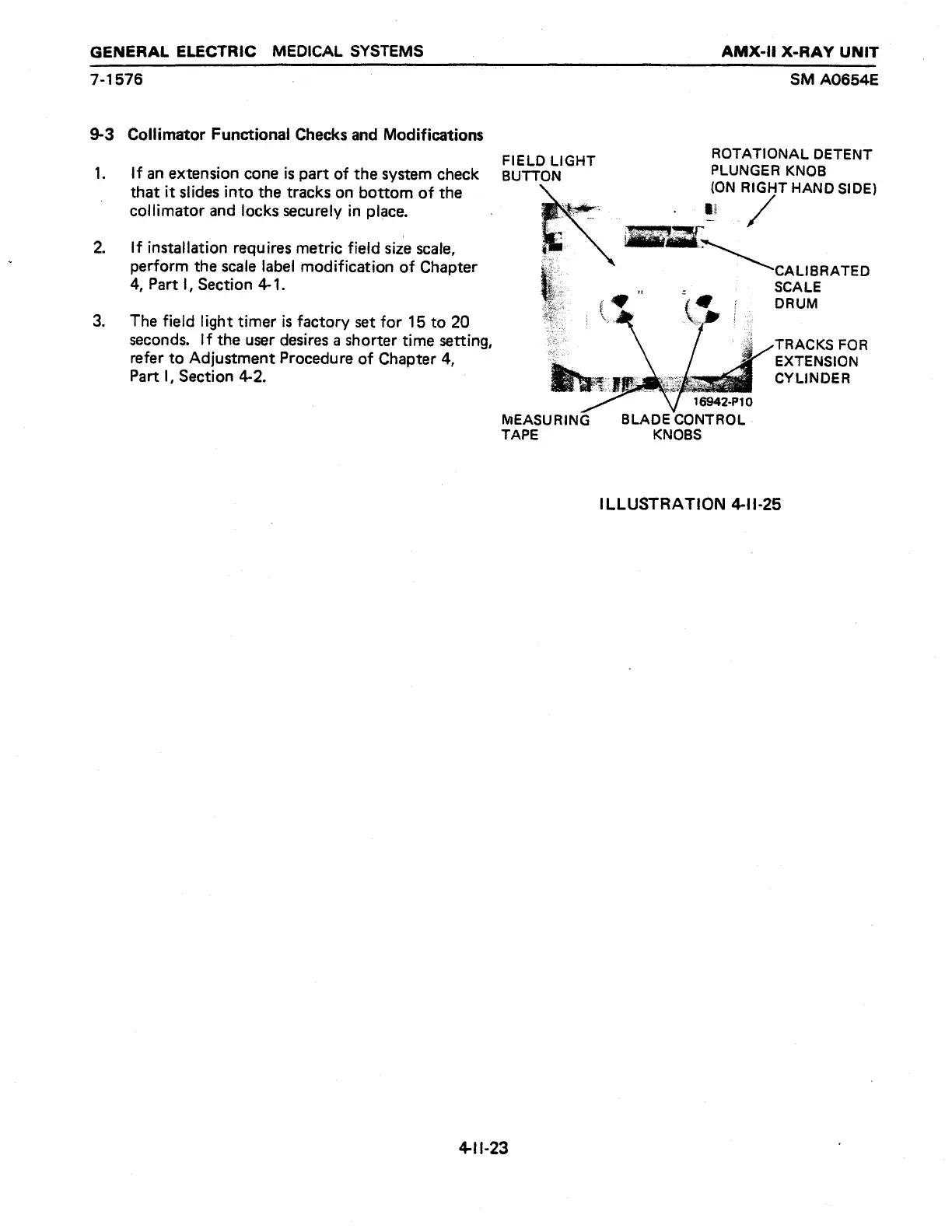

9-3 Collimator Functional Checks and Modifications
FIELD
LIGHT
ROTATIONAL
DETENT
1. If an extension cone is part of the system check BUTTON PLUNGER KNOB
that it slides into the tracks on bottom of the (ON RIGHT HAND SIDE)
collimator and locks securely in place. a
2. If installation requires metric field size scale, | TT
perform
the
scale
label
modification
of
Chapter
CALIBRATED
4, Part I, Section 4-1. “ . SCALE
DRUM
3. The field light timer is factory set for 15 to 20
seconds. İf the user desires a shorter time setting,
refer to Adjustment Procedure of Chapter 4,
Part |, Section 4-2.
TRACKS FOR
EXTENSION
CYLINDER
16942-P10
MEASURING BLADE CONTROL
TAPE KNOBS
ILLUSTRATION 4-11-25
411-23
