GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
7-1576

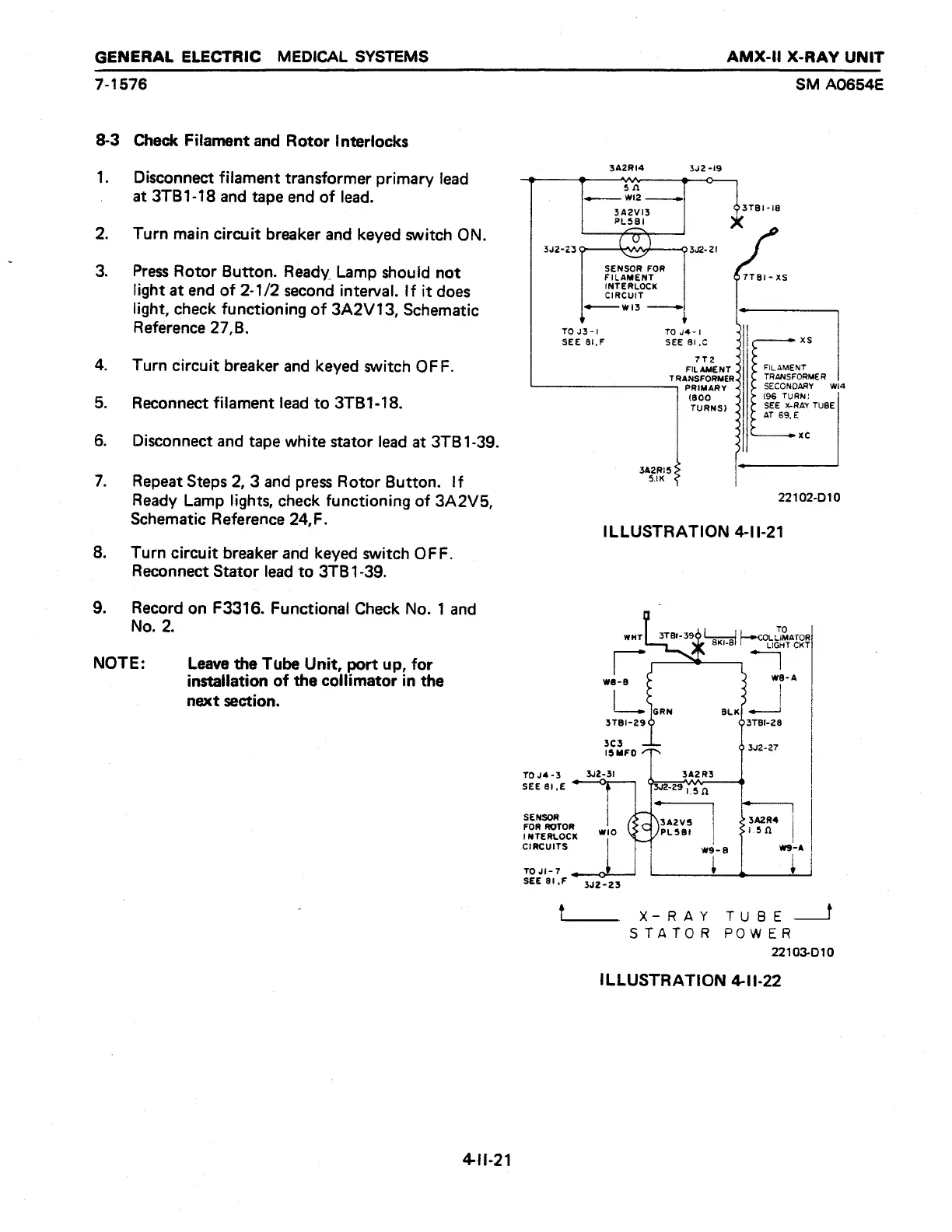

8-3 Check Filament and Rotor interlocks
SM A0654E
1. Disconnect filament transformer primary lead
2. Turn main circuit breaker and keyed switch ON.
3. Press Rotor Button. Ready Lamp should not
light at end of 2-1/2 second interval. If it does
light, check functioning of 3A2V13, Schematic
Reference 27,B.
4. Turn circuit breaker and keyed switch OFF.
5. Reconnect filament lead to 3TB1-18.
6. | Disconnect and tape white stator lead at 3TB1-39.
7. Repeat Steps 2, 3 and press Rotor Button. If
Ready Lamp lights, check functioning of 3A2V5,
Schematic Reference 24,F.
8. Turn circuit breaker and keyed switch OFF.
Reconnect Stator lead to 3TB1-39.
9. Record on F3316. Functional Check No. 1 and
No. 2.
NOTE: Leave the Tube Unit, port up, for
at 3TB1-18 and tape end of lead.
installation of the collimator in the
next section.
41-21
342-23
3A2R 14 342-19
ANA
sa
wie
3A2V13 x
PLSBI
L
TO J3-!
SEE 8i,F
SENSOR FOR
FILAMENT
INTERLOCK
CIRCUIT
TO J4-1
SEE 8I,C
772
Fil AMENT
xs
FIL AMENT
TRANSFORMER
SECONDARY Wi4
(96 TURN}
SEE X-RAY TUBE
АТ 69,Е
xc
3A2RIS
SIK
22102-D10
ILLUSTRATION 4-11-21
TO
wer acral Fe Maron
W8-A
BLKÍ «es
3781-28
342-27
ТО 44-3
SEE 91,€
=
FOR ROTOR 34284
INTERLOCK "IO 152
CIRCUITS W9-A
TO Ji- 了 ο |
SEE 81,F 33223
L. X-RAY TUBE - I
STATOR POWER
22103-D10
ILLUSTRATION 4-11-22
