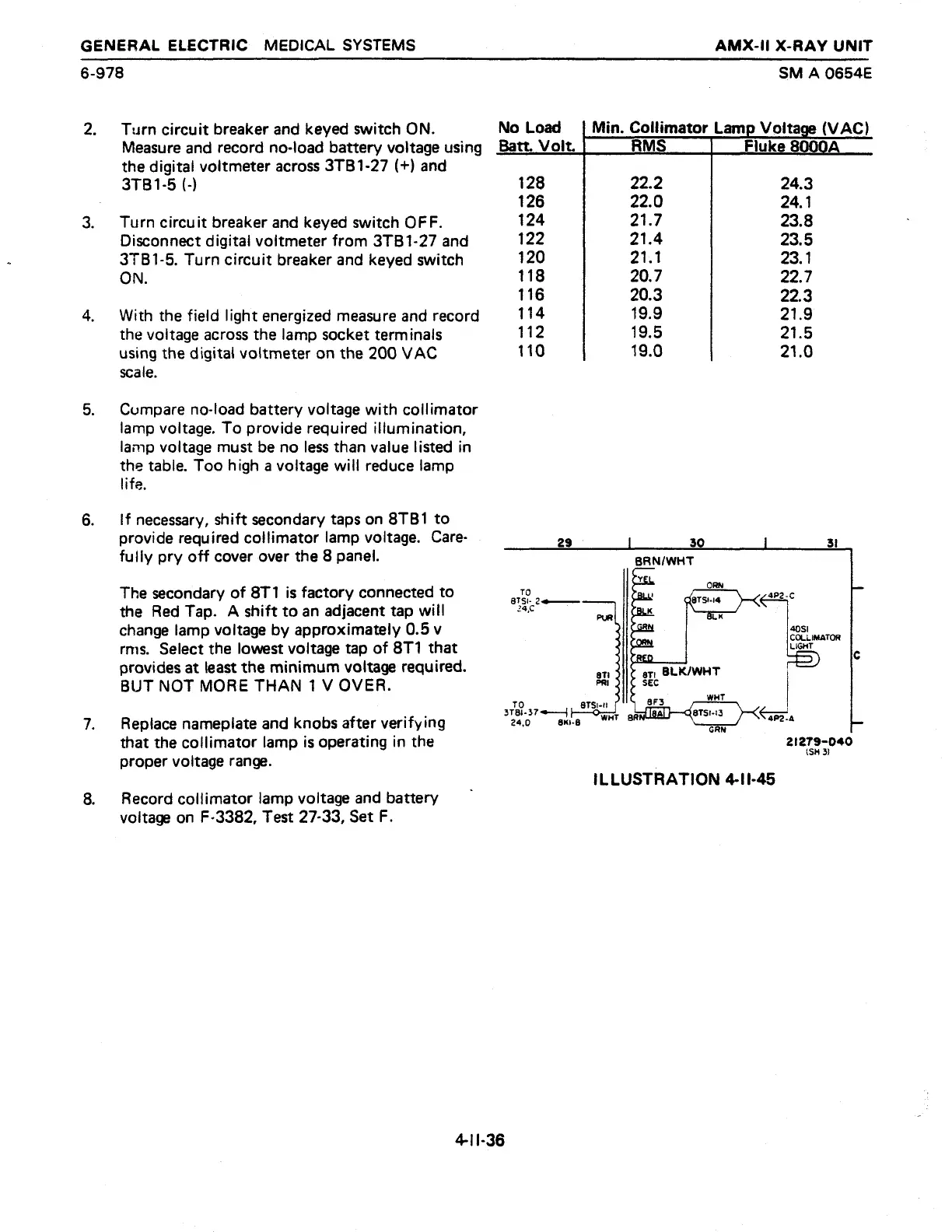

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-Il X-RAY UNIT
6-978 SM A 0654E
2. Turn circuit breaker and keyed switch ON. No Load | Min. Collimator Lamp Voltage (VAC)
Measure and record no-load battery voltage using Batt. Voit. RMS Fluke 8000A
the digital voltmeter across 3TB1-27 (+) and
3TB1-5 (-) 128 22.2 24.3
126 22.0 24.1
3. Turn circuit breaker and keyed switch OFF. 124 21.7 23.8
Disconnect digital voitmeter from 3TB1-27 and 122 21.4 23.5
3TB1-5. Turn circuit breaker and keyed switch 120 21.1 23.1
ON. 118 20.7 22.7
116 20.3 22.3
4. With the field light energized measure and record 114 19.9 21.9
the voltage across the lamp socket terminals 112 19.5 21.5
using the digital voltmeter on the 200 VAC 110 19.0 21.0
scale.
5. Compare no-load battery voltage with collimator
lamp voltage. To provide required illumination,
lamp voltage must be no less than value listed in
the table. Too high a voltage will reduce lamp
life,
6. If necessary, shift secondary taps on 8TB1 to
provide required collimator lamp voltage. Care- 29 ㆍ | 30 | τι
fully pry off cover over the 8 panel. BRN/WHT
The secondary of 8T1 is factory connected to
the Red Tap. A shift to an adjacent tap will
change
lamp
voltage
by
approximately
0.5
v
405!
con
rms.
Select
the
lowest
voltage
tap
of
8T1
that
LIGHT
c
provides at least the minimum voltage reguired.
BUT NOT MORE THAN 1 V OVER.
4P2-A
7. Replace nameplate and knobs after verifying
that the collimator lamp is operating in the 21279-040
proper voltage range. |
ILLUSTRATION 4-11-45
8. Record collimator lamp voltage and battery
voltage on F-3382, Test 27-33, Set F.
411-36
