AMX-il X-RAY UNIT
GENERAL ELECTRIC MEDICAL SYSTEMS
SM A0654E
1-1880
DUAL HV DIVIDER C1516A 5 FT. (1.5 m) HV CABLE
HV TRANSFORMER
MODEL 46-150625G1
10 FT. (3.0 m)
Lone HV CABLE.
Oc X-RAY
carnooe
Mn
TUBE
10
FT.
UNIT
=
HV CABLE
I ・
CLOSE COLLIMATOR BLADES AND
D
COVER WITH 1/8” (3.175 mm) LEAD SHEET
A
A
FOR LONG RUNS USE TWISTED PAIR CABLE
(Belden No. 8422 two cond. twisted, shielded, 18mmfd ft.)
X10 PROBES u
WITH GROUNDED <, | EU) | To KEEP CAPACITANCE EFFECTS AT A MINIMUM
SHIELDS
0
rå
O CHI
O cup
GROUND Е
SCOPE THROUGH TEKTRONIX 422 OR 564 OSCILLOSCOPE
POWER CORD (dual trace with aigebraic addition)
OBSERVE SCOPE FROM LEAD SHIELDED AREA nao

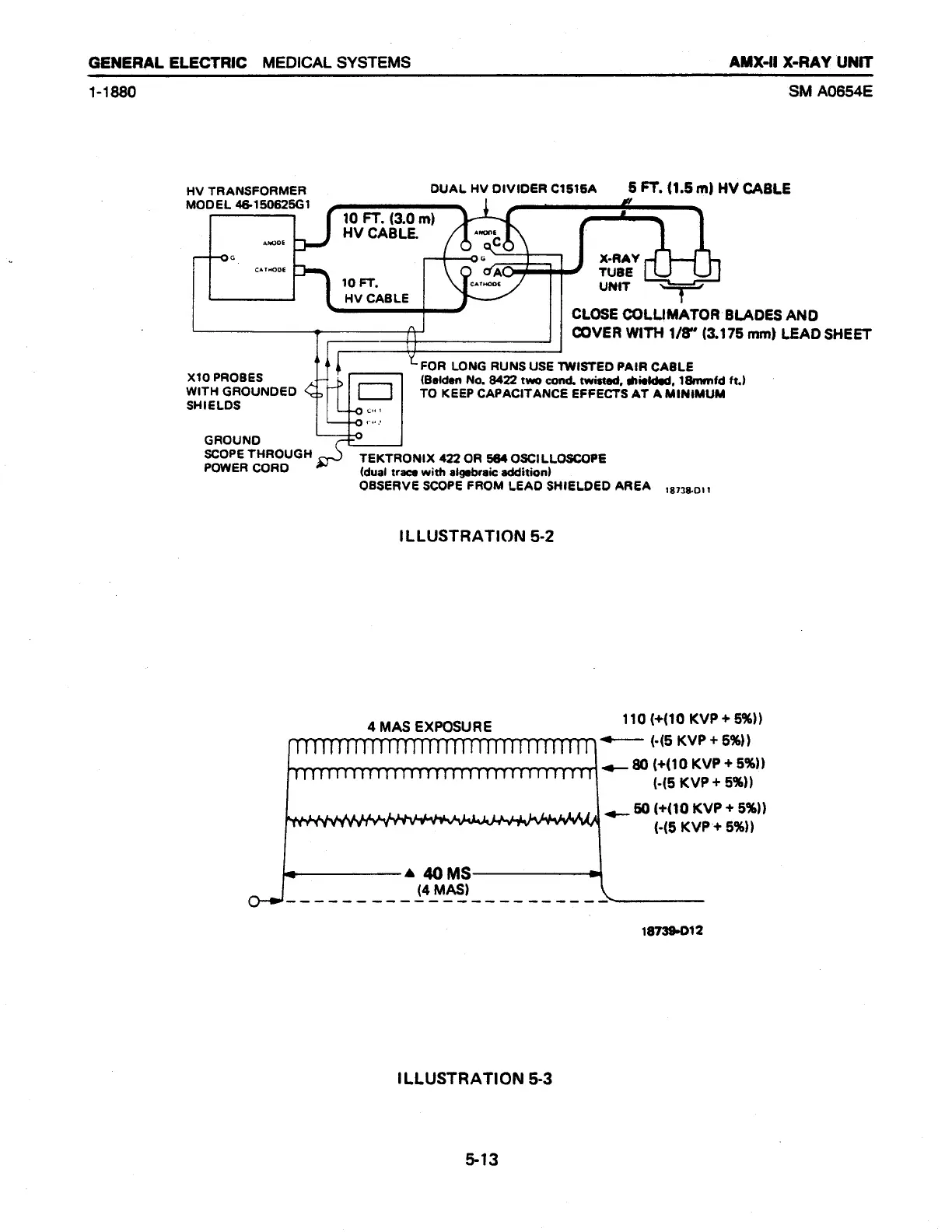

ILLUSTRATION 5-2
110 (+(10 KVP + 5%))
«a (.(5 KVP + 5%))
ュー 80 (+(10 KVP + 5%))
(-(5 KVP + 5%))
«_ 50 (+(10 KVP + 5%))
(45 KVP 516)
4 MAS EXPOSURE
18739.012
ILLUSTRATION 5-3
5-13
