GENERAL ELECTRIC MEDICAL SYSTEMS AMX-Il X-RAY UNIT
1-981
OM A0654E
ADDITIONAL E
1
and
2
MM
A
κ
ENS
mm
”
n
ROTATIONAL
DETENT
ALUMINUM
1
Ču
m
PLUNGER
KNOB
SELECTIVE
(ON
RIGHT
HAND
SIDE)
FILTERS
`` CALIBRATED SCALE
DRUM
[~~ FIELD LIGHT BUTTON
|
i
i
[OX BLADE CONTROL
KNOBS
TRACKS FOR
y=
一
一
一
EXTENSION
CYLINDER
———— MEASURING TAPE
16942-P10

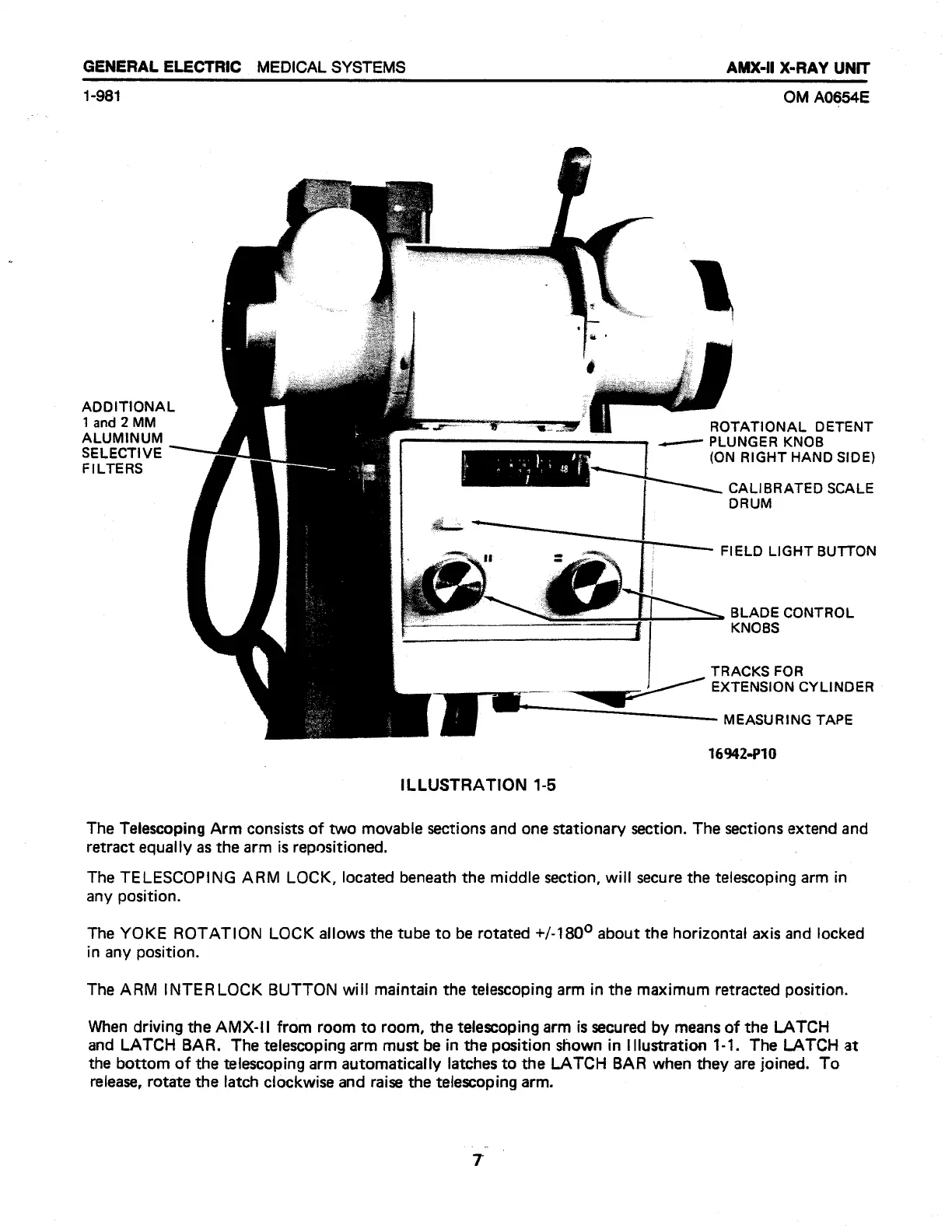

ILLUSTRATION 1-5
The Telescoping Arm consists of two movable sections and one stationary section. The sections extend and
retract equally as the arm is repositioned.
The TELESCOPING ARM LOCK, located beneath the middle section, will secure the telescoping arm in
any position.
The YOKE ROTATION LOCK allows the tube to be rotated +/-180° about the horizontal axis and locked
in any position.
The ARM INTERLOCK BUTTON will maintain the telescoping arm in the maximum retracted position.
When driving the AMX-!| from room to room, the telescoping arm is secured by means of the LATCH
and LATCH BAR. The telescoping arm must be in the position shown in Illustration 1-1. The LATCH at
the bottom of the telescoping arm automatically latches to the LATCH BAR when they are joined. To
release, rotate the latch clockwise and raise the telescoping arm.
