GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-il
X-RAY
UNIT
1-981
.
OM
A0654E
A

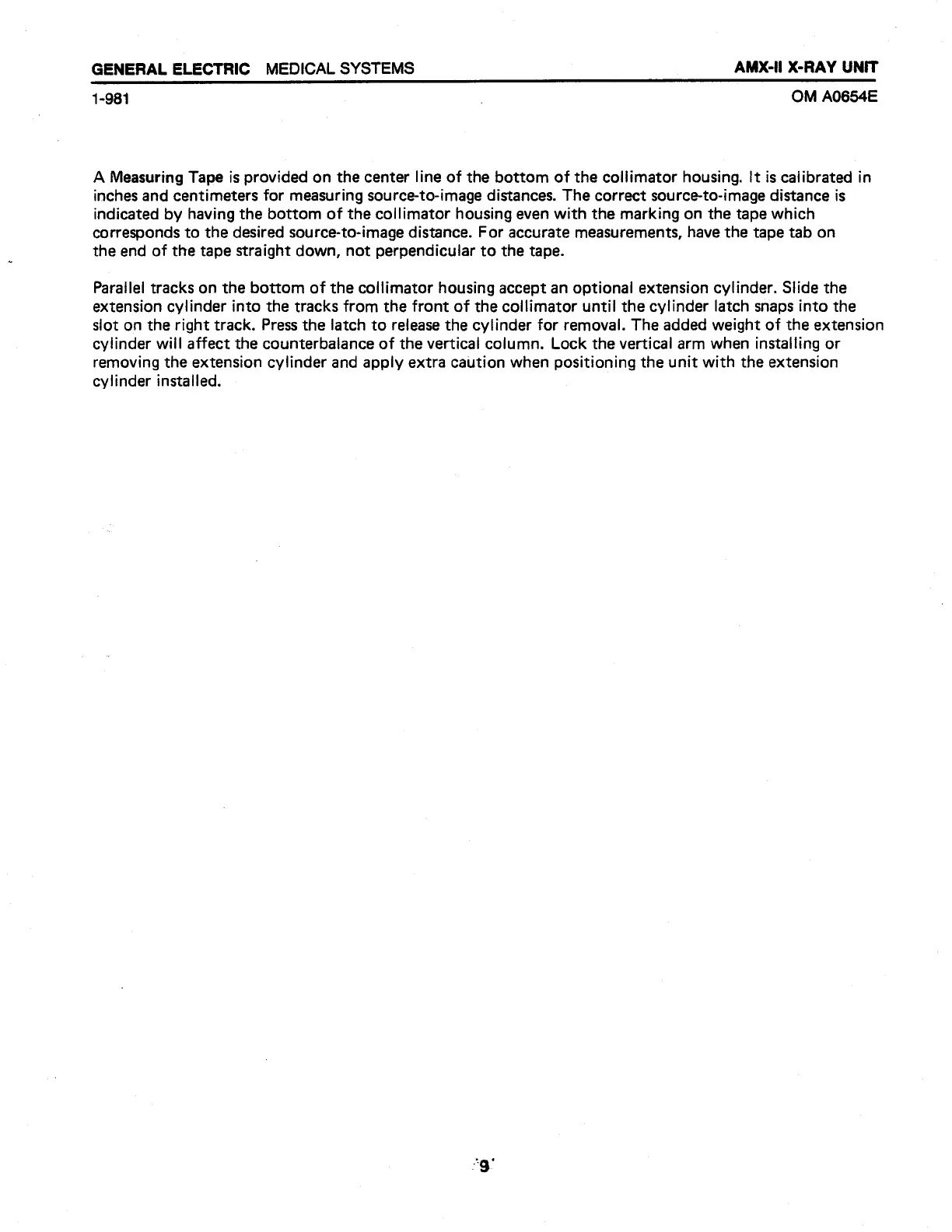

Measuring
Tape
is
provided
on
the
center
line
of
the
bottom
of
the
collimator
housing.
It
is
calibrated
in
inches
and
centimeters
for
measuring
source-to-image
distances.
The
correct
source-to-image
distance
is
indicated
by
having
the
bottom
of
the
collimator
housing
even with
the
marking
on the
tape
which
corresponds
to
the
desired
source-to-image
distance.
For
accurate
measurements,
have
the
tape
tab
on
the
end
of
the
tape
straight
down,
not
perpendicular
to
the
tape.
Parallel
tracks
on
the
bottom
of
the
collimator
housing
accept
an
optional
extension
cylinder.
Slide
the
extension
cylinder
into
the
tracks
from
the
front
of
the
collimator
until
the
cylinder
latch
snaps
into
the
slot
on
the
right
track.
Press
the
latch
to
release
the
cylinder
for
removal.
The
added
weight
of
the
extension
cylinder
will
affect
the
counterbalance
of
the
vertical
column.
Lock
the
vertical
arm
when
installing
or
removing
the
extension
cylinder
and
apply
extra
caution
when
positioning
the
unit
with
the
extension
cylinder
installed.
