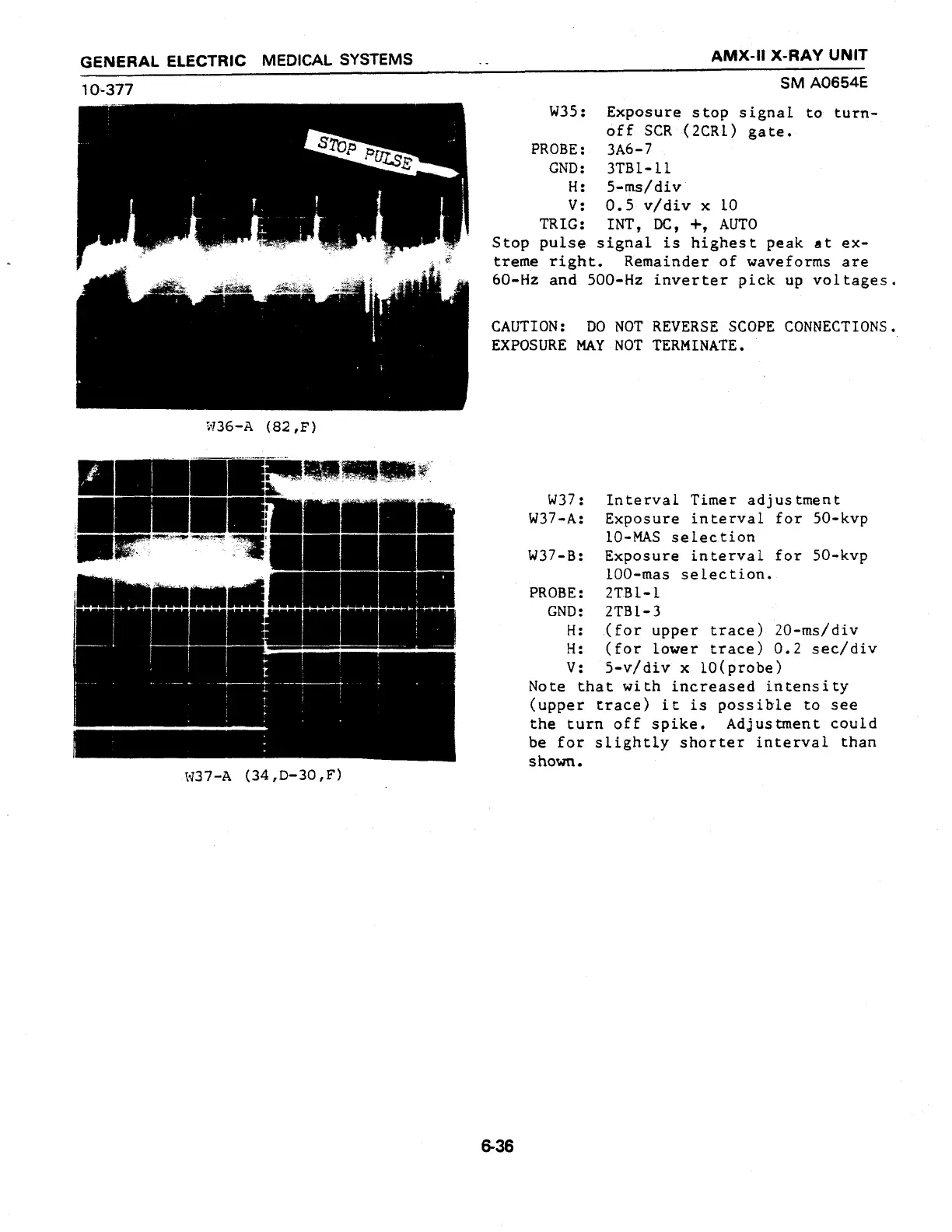

W35: Exposure stop signal to turn-
off SCR (2CRL) gate.
PROBE: 3A6-7
GND: 3TBl-11
H: 5-ms/div
V: 0.5 v/div x 10
TRIG: INT, DC, +, AUTO
Stop pulse signal is highest peak at ex-
treme right. Remainder of waveforms are
60-Hz and 500-Hz inverter pick up voltages.
CAUTION: DO NOT REVERSE SCOPE CONNECTIONS.
EXPOSURE MAY NOT TERMINATE.
W36-A (82,F)
RE:
NE 3 W37: Interval Timer adjustment
MN nu W37-A: Exposure interval for 50-kvp
| 10-MAS selection
σα W37-B: Exposure interval for 50-kvp
100-mas selection.
PROBE: 2TB1-1
GND: 2TB1-3
H: (for upper trace) 20-ms/div
H: (for lower trace) 0.2 sec/div
У: 5-v/div x 10(probe)
Note that with increased intensity
(upper trace) it is possible to see
the turn off spike. Adjustment could
be for slightly shorter interval than
shown.
W37-A (34,D-30,F)
