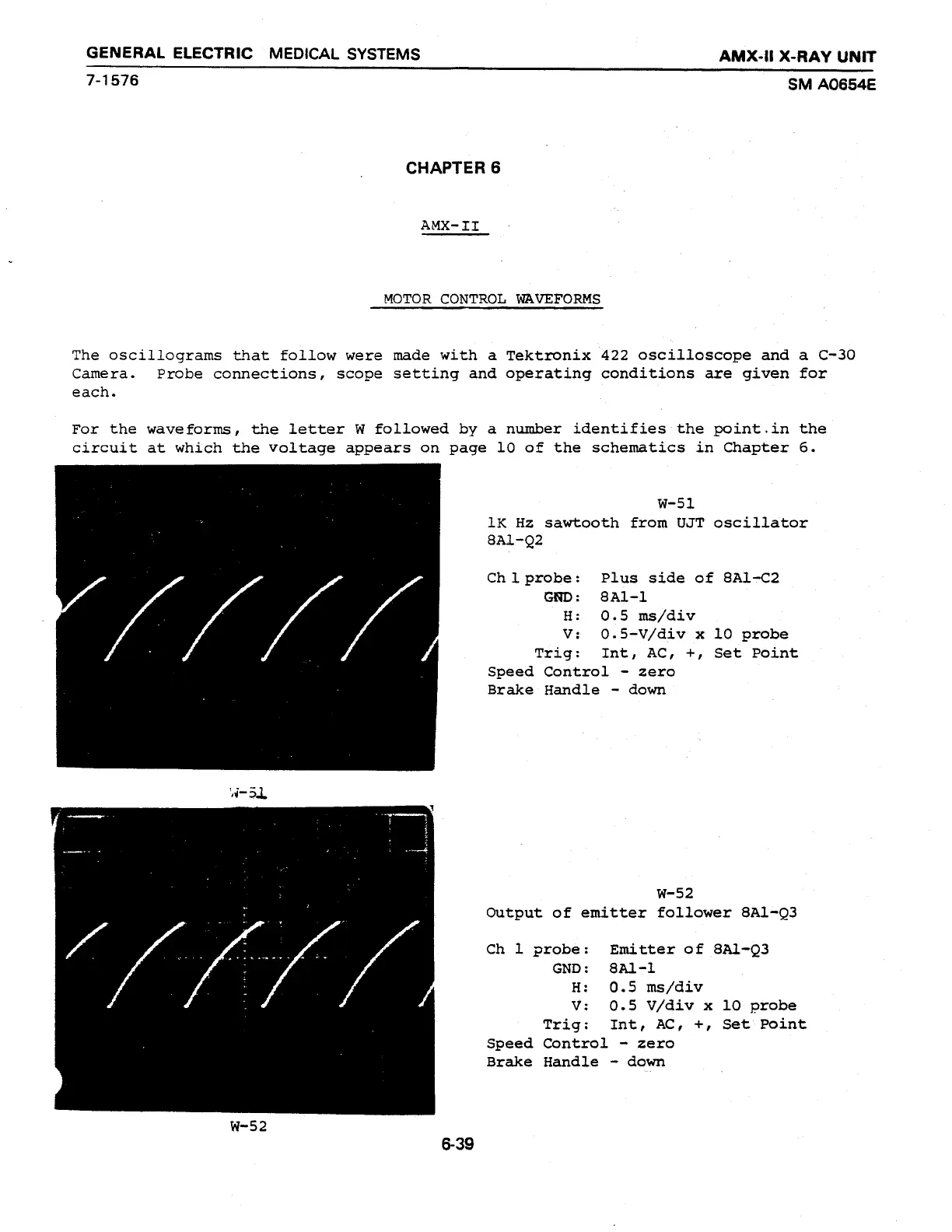

CHAPTER 6
AMX- II
MOTOR CONTROL WAVEFORMS
The oscillograms that follow were made with a Tektronix 422 oscilloscope and a C-30
Camera. Probe connections, scope setting and operating conditions are given for
each.
For the waveforms, the letter W followed by a number identifies the point.in the
circuit at which the voltage appears on page 10 of the schematics in Chapter 6.
w-51
1K Hz sawtooth from UJT oscillator
8A1-02
Ch 1 probe: Plus side of 8Al-C2
GND: 8A1-1
H: 0.5 ms/div
У: O.5-V/div x 10 probe
Trig: Int, AC, +, Set Point
Speed Control - zero
Brake Handle - down
=>
W-52
Output of emitter follower 8A1-03
Ch 1 probe: Emitter of 8A1-03
GND: 8A1-1
H: 0.5 ms/div
У: 0.5 V/div x 10 probe
Trig: Int, AC, +, Set Point
Speed Control - zero
Brake Handle - down
W-52
6-39
