GE AMX-II

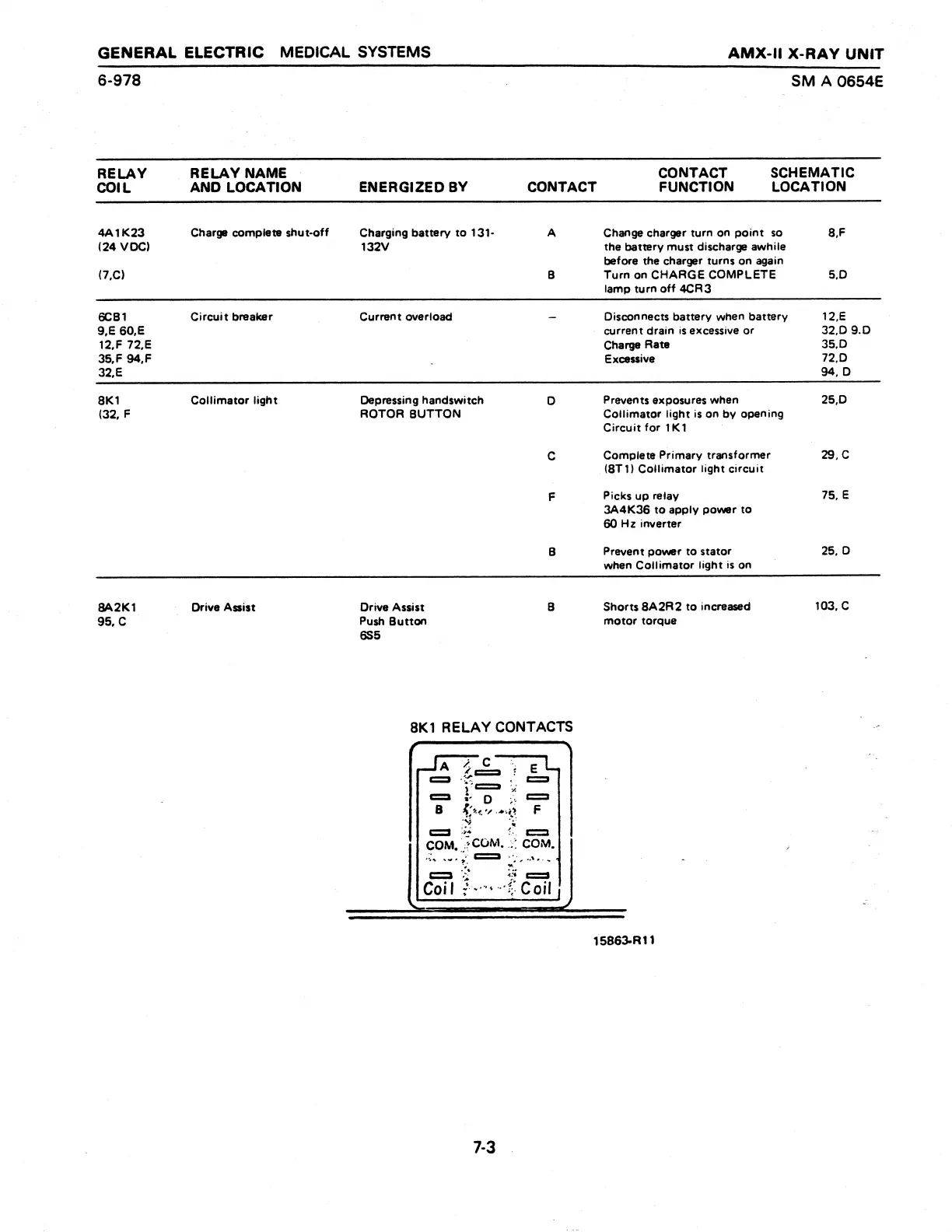

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
6-978 = | SM A 0654E
RELAY RELAY NAME | CONTACT SCHEMATIC
COIL AND LOCATION ENERGIZED BY CONTACT FUNCTION LOCATION
4A1K23 Charge complete shut-off Charging battery to 131- A Change charger turn on point so 8,F
(24 VOC) 132V the battery must discharge awhile
before the charger turns on again
(7,C) B Turn on CHARGE COMPLETE 5,D
lamp turn off 4CR3
6CB1 Circuit breaker | Current overioad — Disconnects battery when battery 12,E
9,E 60,E - current drain is excessive ог 32,0 9.0
12,F 72,E | Charge Rate 35,D
35,F 94,F . Excessive 72.0
32,E 94, D
8K1 Collimator light Depressing handswitch D Prevents exposures when 25,D
(32, F ROTOR BUTTON Collimator light is on by opening
Circuit for 1K1
C Complete Primary transformer 29, C
(8T1) Collimator light circuit
F Picks up relay 75, Е
3A4K36 to apply power to
60 Hz inverter
B Prevent power to stator 25, D
when Coilimator light is on
8A2K1 - Drive Assist Drive Assist 8 Shorts 8A2R2 to increased 103, C
95, C Push Button motor torque
| 6S5
8K1 RELAY CONTACTS
た N
A ZE ЕС
=> “as; + =
ca ip , =
B δε, ” e? F
<
GO. г ==
es.
„ ~
΄ ^^.
“
+
【
Coil 2-2 Coil, |
K = "+ テー
+
15863-R11
7-3
