GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS АМХ-И Х-ВАУ ИМТ
1-1582 SM A0654E

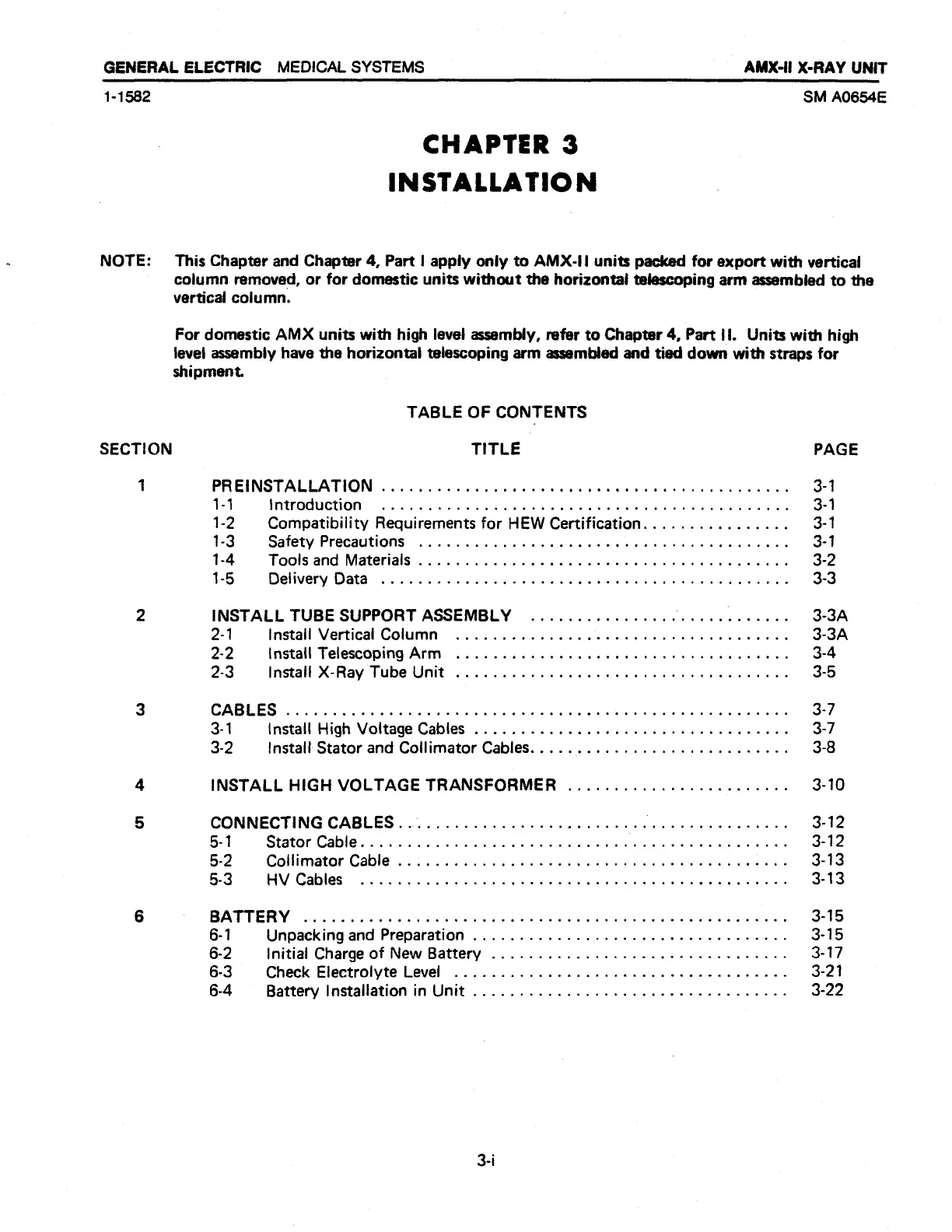

CHAPTER 3
INSTALLATION
NOTE: This Chapter and Chapter 4, Part | apply only to AMX-I units packed for export with vertical
column removed, or for domestic units without the horizontal telescoping arm assembied to the
vertical column.
For domestic AMX units with high level assembly, refer to Chapter 4, Part il. Units with high
level assembly have the horizontal telescoping arm assembied and tied down with straps for
shipment.
TABLE OF CONTENTS
SECTION TITLE PAGE
1 PREINSTALLATION еее кения 3-1
1-1 Introduction ον νο εν ενω εκ νο κ ο ων εν ο κ κ εν ο κ ο ue 3-1
1-2 Compatibility Requirements for HEW Certification................ 3-1
1-3 Safety Precautions ..........,..........................,.. 3-1
1-4 Tools and Materials ..........,...................,......... 3-2
1-5 Delivery Data .....................,...,....,...,..,...... 3-3
2 INSTALL TUBE SUPPORT ASSEMBLY ................ a m- 3-3A
2-1 Install Vertical Column <... ce eee εν ον εν ων 3-3A
2-2 install Telescoping Arm ......,..........,.......,.,........ 3-4
2-3 Install X-Ray Tube Unit ............................,.,,.. 3-5
3 CABLES . ee en eee eee eet tence tenes 3-7
3-1 Install High Voltage Cables .................................. 3-7
3-2 install Stator and Coillimator Cables. ........................... 3-8
4 INSTALL HIGH VOLTAGE TRANSFORMER ........................ 3-10
5 CONNECTING CABLES ...............oooooooo.o.. A 3-12
5-1 Stator Cable...........................................,.. 3-12
5-2 Collimator Cable .......................,...........,...... 3-13
5-3 HV Cables ....,........................,..,,,..,.,,..:.. 3-13
6 BATTERY .............. ee 3-15
6-1 Unpacking and Preparation ........................,.,....... 3-15
6-2 Initial Charge of New Battery ..................,............. 3-17
6-3 Check Electrolyte Level .. ο εαν ο 3-21
6-4 Battery Installation in Unit .............< <<< « <<< s <<.. 에이 3-22
