GENERAL ELECTRIC MEDICAL SYSTEMS DIVISION AMX-Il X-RAY UNIT
10-377 SM A0654E

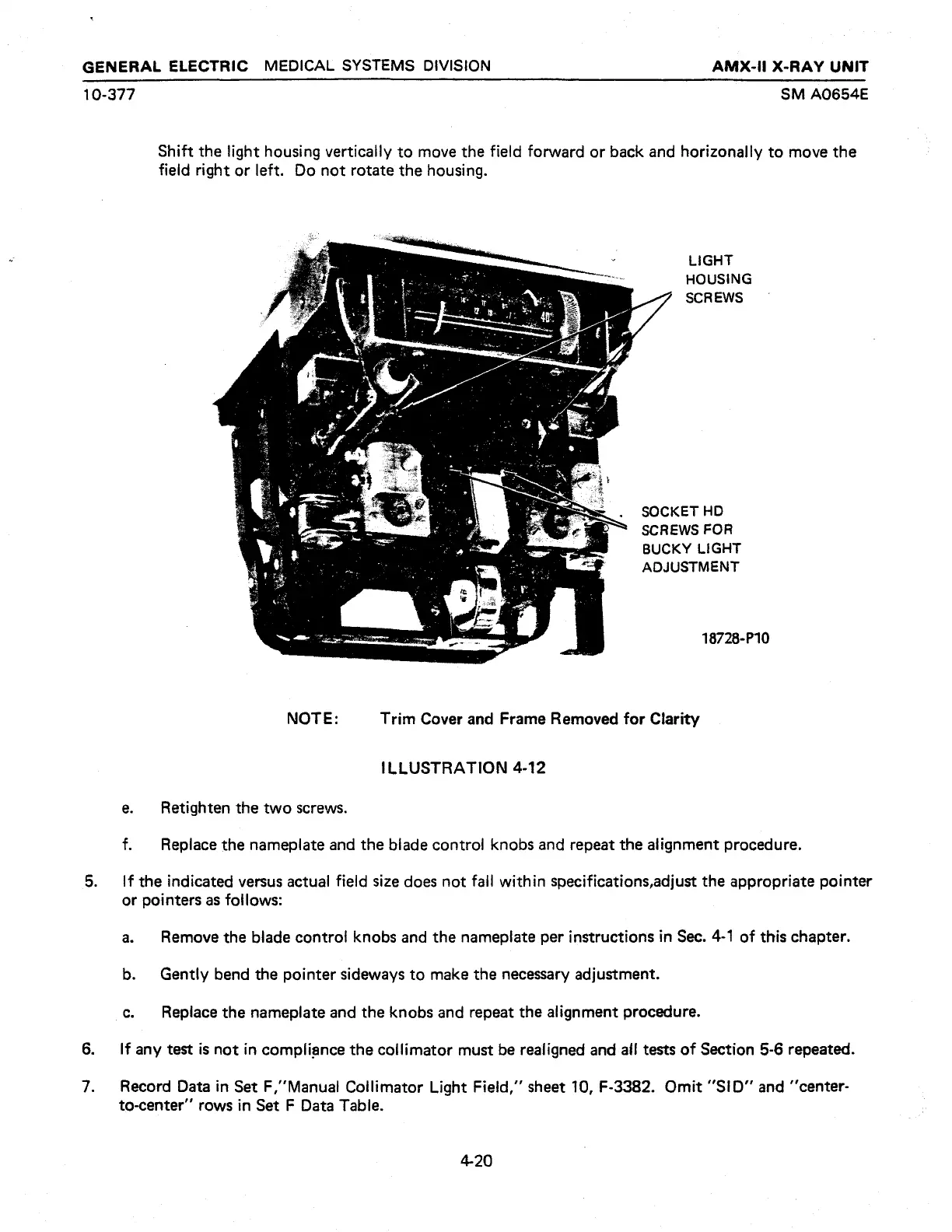

Shift the light housing vertically to move the field forward or back and horizonally to move the
field right or left. Do not rotate the housing.
LIGHT
HOUSING
| 17 SCREWS
SOCKET HD
SCREWS FOR
BUCKY LIGHT
ADJUSTMENT
18728-P10
NOTE: Trim Cover and Frame Removed for Clarity
ILLUSTRATION 4-12
e. Retighten the two screws.
f. Replace the nameplate and the blade contro! knobs and repeat the alignment procedure.
5. If the indicated versus actual field size does not fail within specifications,adjust the appropriate pointer
or pointers as follows:
a. Remove the blade contro! knobs and the nameplate per instructions in Sec. 4-1 of this chapter.
b. Gently bend the pointer sideways to make the necessary adjustment.
c. Replace the nameplate and the knobs and repeat the alignment procedure.
6. If any test is not in compliance the collimator must be realigned and ail tests of Section 5-6 repeated.
7. Record Data in Set F,'Manual Collimator Light Field,” sheet 10, F-3382. Omit “SID” and “center-
to-center” rows in Set F Data Table.
4-20
