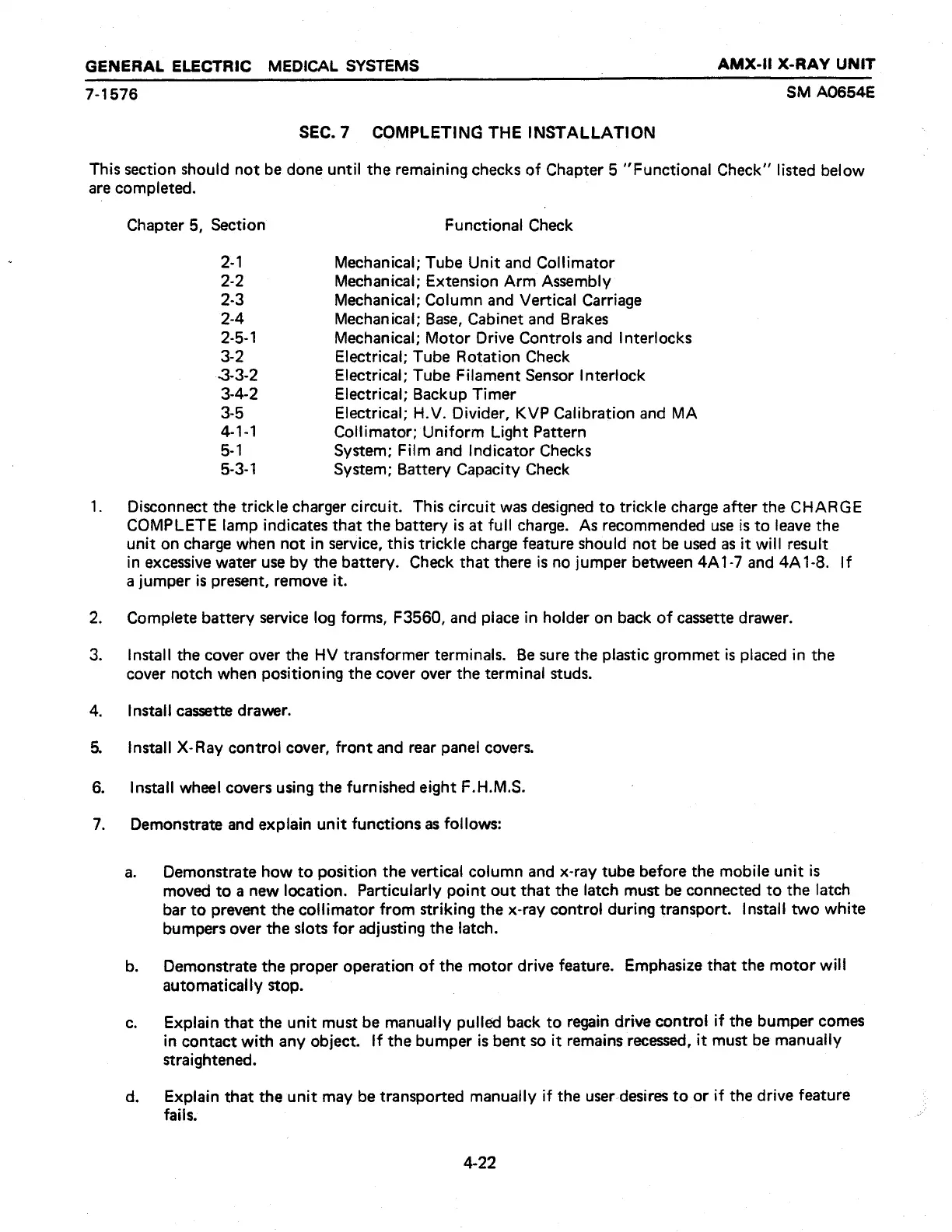

GENERAL ELECTRIC MEDICAL SYSTEMS | AMX-il X-RAY UNIT
7-1576 SM A0654E
SEC.7 COMPLETING THE INSTALLATION
This section should not be done until the remaining checks of Chapter 5 “Functional Check” listed below
are completed.
Chapter 5, Section Functional Check
2-1 Mechanical; Tube Unit and Collimator
2-2 Mechanical; Extension Arm Assembly
2-3 Mechanical; Column and Vertical Carriage
2-4 Mechanical; Base, Cabinet and Brakes
2-5-1 Mechanical; Motor Drive Controls and Interlocks
3-2 Electrical; Tube Rotation Check
3-3-2 Electrical; Tube Filament Sensor Interlock
3-4-2 Electrical; Backup Timer
3-5 Electrical; H.V. Divider, KVP Calibration and MA
4-1-1 Collimator; Uniform Light Pattern
5-1 System; Film and Indicator Checks
5-3-1 System; Battery Capacity Check
Disconnect the trickle charger circuit. This circuit was designed to trickle charge after the CHARGE
COMPLETE lamp indicates that the battery is at ful! charge. As recommended use is to leave the
unit on charge when not in service, this trickle charge feature should not be used as it will result
in excessive water use by the battery. Check that there is no jumper between 4A1-7 and 4A1-8. If
a jumper is present, remove it.
Complete battery service log forms, F3560, and piace in holder on back of cassette drawer.
Install the cover over the HV transformer terminals. Be sure the plastic grommet is placed in the
cover notch when positioning the cover over the terminal studs.
Install cassette drawer.
Install X-Ray control cover, front and rear panel covers.
Install wheel covers using the furnished eight F.H.M.S.
Demonstrate and explain unit functions as follows:
a. Demonstrate how to position the vertical column and x-ray tube before the mobile unit is
moved to a new location. Particularly point out that the latch must be connected to the latch
bar to prevent the collimator from striking the x-ray control during transport. Install two white
bumpers over the slots for adjusting the latch.
b. Demonstrate the proper operation of the motor drive feature. Emphasize that the motor will
automatically stop.
c. Explain that the unit must be manually pulled back to regain drive control if the bumper comes
in contact with any object. If the bumper is bent so it remains recessed, it must be manually
straightened.
d. Explain that the unit may be transported manually if the user-desires to or if the drive feature
fails.
4-22
