GE AMX-II User Manual

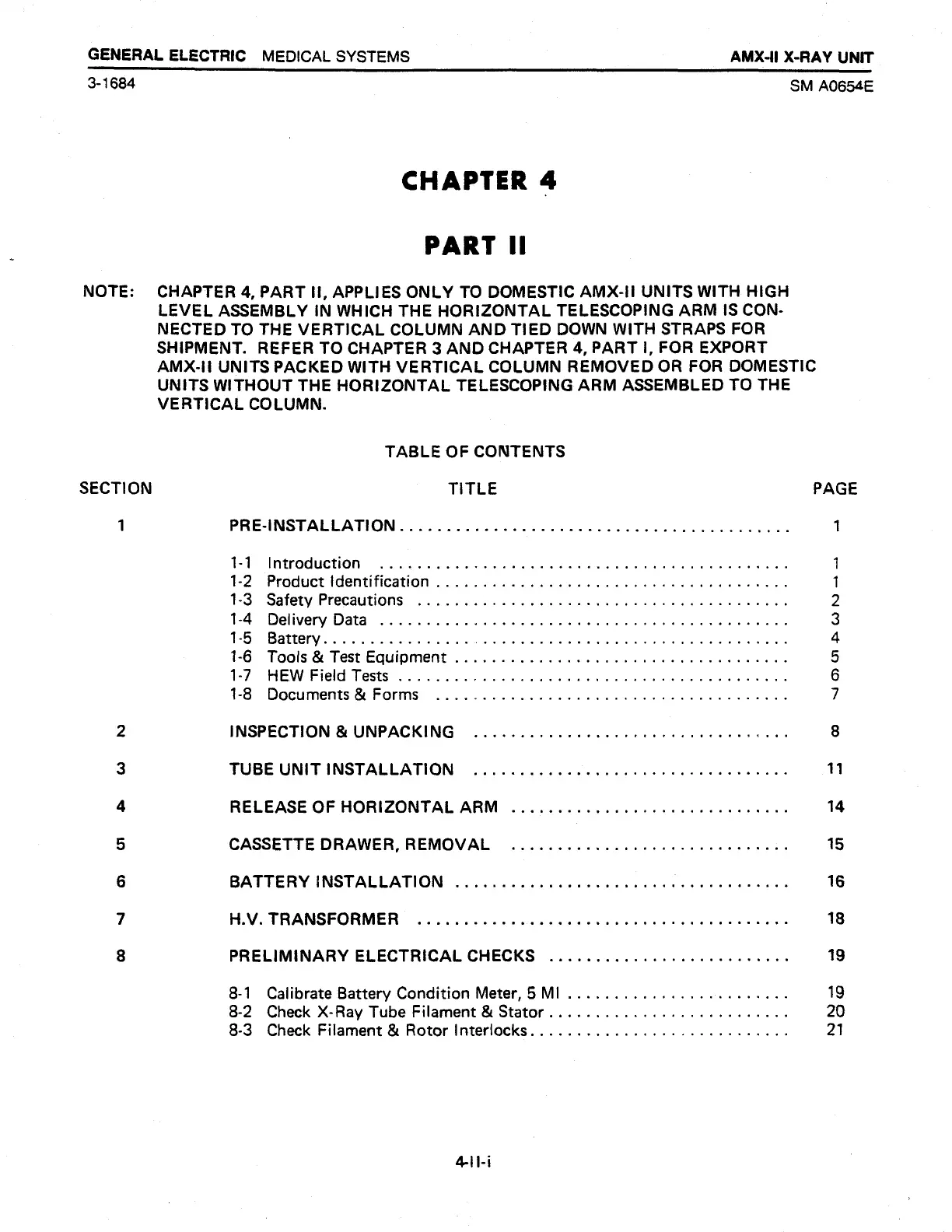

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
3-1684 SM A0654E
CHAPTER 4
PART Il
NOTE: CHAPTER 4, PART Ii, APPLIES ONLY TO DOMESTIC AMX-II UNITS WITH HIGH
LEVEL ASSEMBLY IN WHICH THE HORIZONTAL TELESCOPING ARM IS CON-
NECTED TO THE VERTICAL COLUMN AND TIED DOWN WITH STRAPS FOR
SHIPMENT. REFER TO CHAPTER 3 AND CHAPTER 4, PART 1, FOR EXPORT
AMX-11 UNITS PACKED WITH VERTICAL COLUMN REMOVED OR FOR DOMESTIC
UNITS WITHOUT THE HORIZONTAL TELESCOPING ARM ASSEMBLED TO THE
VERTICAL COLUMN.
TABLE OF CONTENTS
SECTION TITLE PAGE
1 PRE-İNSTALLATION.............. ısın 1
1-1 Introduction... tee eee t eee 1
1-2 Product Identification よし に し し し に に に に に に に に に にし ュ トト に スト し ーー し し に し て て ーーーー 1
1-3 Safety Precautions .....................................,., 2
1-4 Delivery Data ............................................ 3
1-5 Вамегу........... . 4
1-6 Tools&TestEguipment................... 0000 ον 5
1-7 HEW Field Tests ..........................,........,,..... 6
1-8 Documents & Forms ... nvkekee 7
2 INSPECTION & UNPACKING .......................,,...,..,.. 8
3 TUBE UNIT INSTALLATION εν ο ο ο νε κο ος 11
4 RELEASE OF HORIZONTAL ARM ..........................,... 14
5 CASSETTE DRAWER, REMOVAL .............,..............:. 15
6 BATTERY INSTALLATION eterna 16
7 H.V. TRANSFORMER .............. users eee 18
8 PRELIMINARY ELECTRICAL CHECKS ........................., 19
8-1 Calibrate Battery Condition Meter, 5 M1 ........................ 19
8-2 Check X-Ray Tube Filament & Stator .......................... 20
8-3 Check Filament & Rotor Interlocks..........................., 21
411-1
