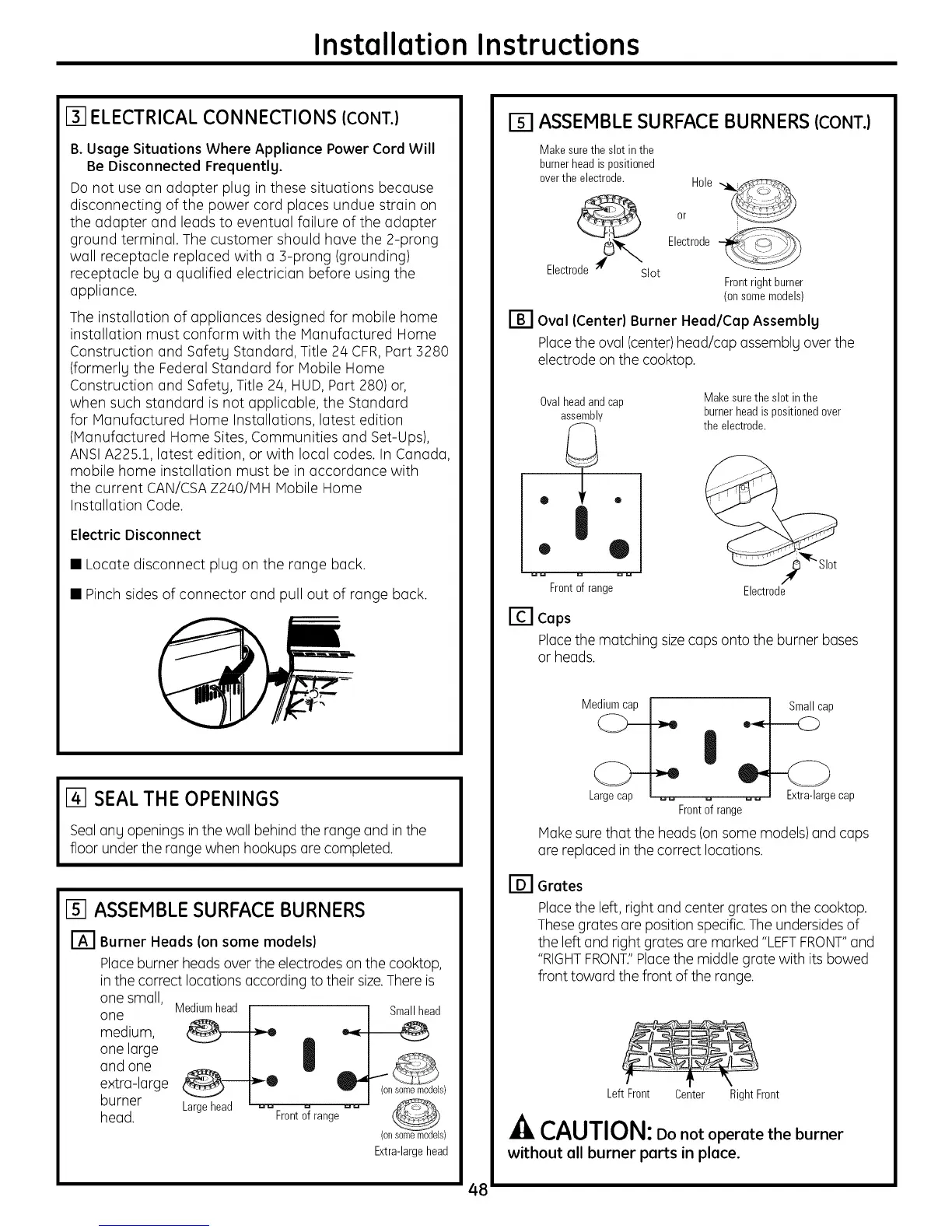

Installation Instructions
[] ELECTRICAL CONNECTIONS (CONT.)
B. Usage Situations Where Appliance Power Cord Will
Be Disconnected Frequently.
Do not use an adapter plug in these situations because
disconnecting of the power cord places undue strain on
the adapter and leads to eventual failure of the adapter
ground terminal. The customer should have the 2-prong
wall receptacle replaced with a 3-prong (grounding)
receptacle by a qualified electrician before using the
appliance.
The installation of appliances designed for mobile home
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR,Part 3280
(formerlg the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD, Part 280) or,
when such standard is not applicable, the Standard
for Manufactured Home Installations, latest edition
(Manufactured Home Sites,Communities and Set-Ups),
ANSIA225.1, latest edition, or with local codes. In Canada,
mobile home installation must be in accordance with
the current CAN/CSAZ240/MH Mobile Home
Installation Code.
Electric Disconnect
• Locate disconnect plug on the range back.
• Pinch sides of connector and pull out of range back.
I%-ISEAL THE OPENINGS
Sealang openings inthe wall behind the range and inthe
floor under the range when hookups are completed.
15] ASSEMBLE SURFACE BURNERS
r_J Burner Heads (on some models}
Placeburner heads overthe electrodes on the cooktop,
in the correct locations according to their size.There is
one small,
one
medium,
one large
and one
extra-large
burner
head.
Large bead __
_ron_OTrange (on s)
Extra-largehead
[] ASSEMBLE SURFACE BURNERS (CONT.)
Makesurethe slot in the
burnerheadispositioned
overthe electrode.
or Hole
Electrode !
Electrode ;_ Slot
Front right burner
(on some models)
[] Oval (Center} Burner Head/Cap Assembly
Placethe oval (center)head/cap assemblg over the
electrode on the cooktop.
Ovalheadandcap
assembly
• ®
Frontof range
Makesurethe slot inthe
burnerheadispositionedover
the electrode.
Electrode
[] Caps
Placethe matching sizecaps onto the burner bases
or heads.
c
Frontof range
Makesure that the heads (on some models)and caps
are replaced in the correct locations.
[] Grates
Placethe left, right and center grates on the cooktop.
Thesegrates are position specific.The undersides of
the left and right grates are marked "LEFTFRONT"and
"RIGHTFRONT."Placethe middle grate with its bowed
front toward the front of the range.
Left Front Center RightFront
CAUTION: Do not operate the burner
without all burner parts in place.
48
