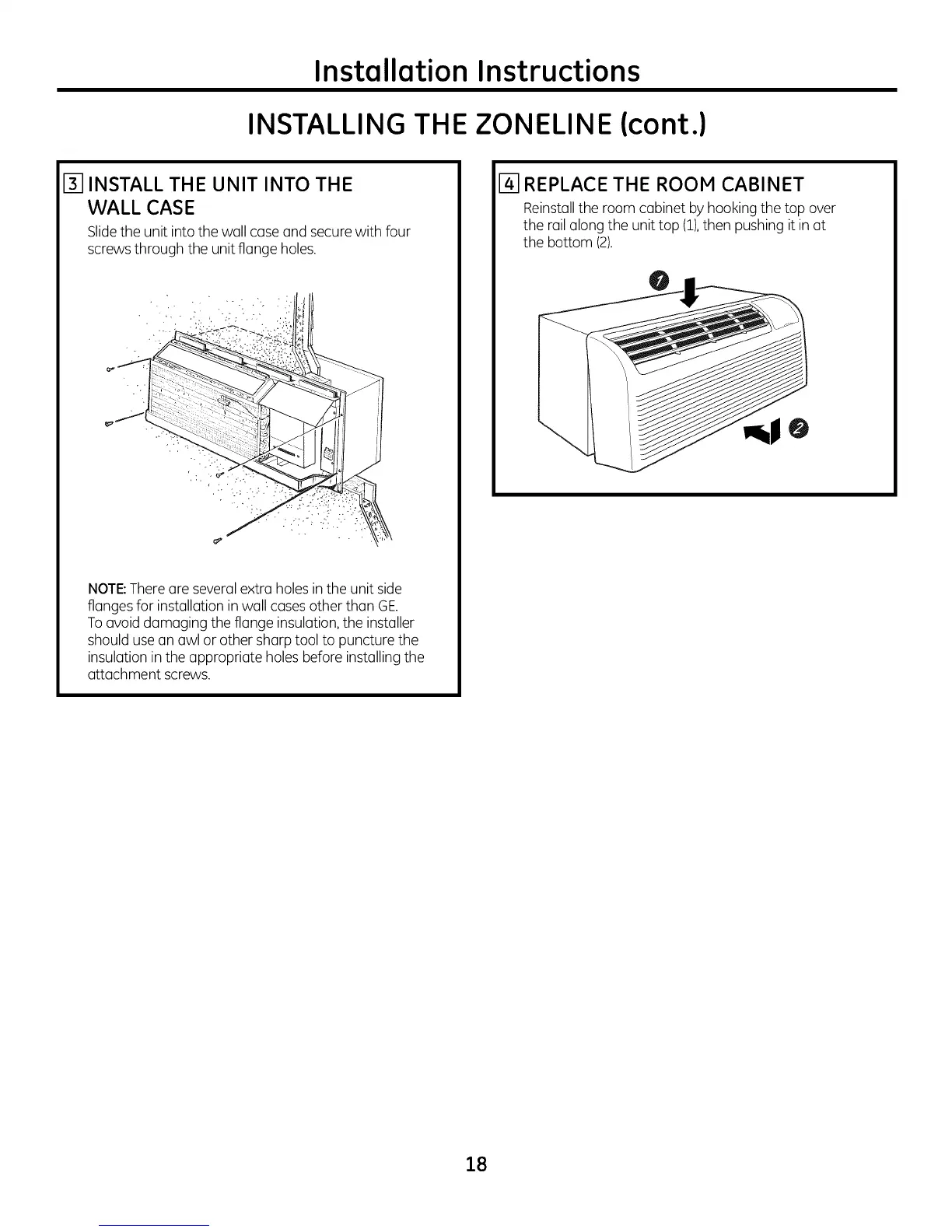

Installation Instructions
INSTALLING THE ZONELINE (cont.)
IYI INSTALL THE UNIT INTO THE
WALL CASE
Slidethe unit into the wall case and secure with four
screws through the unit flange holes.
NOTE: There are several extra holes in the unit side
flanges for installation in wall cases other than GE.
To avoid damaging the flange insulation, the installer
should use an awl or other sharp tool to puncture the
insulation in the appropriate holes before installing the
attachment screws.
[] REPLACE THE ROOM CABINET
Reinstallthe room cabinet by hooking the top over
the rail along the unit top (D,then pushing it in at
the bottom (2).
18
