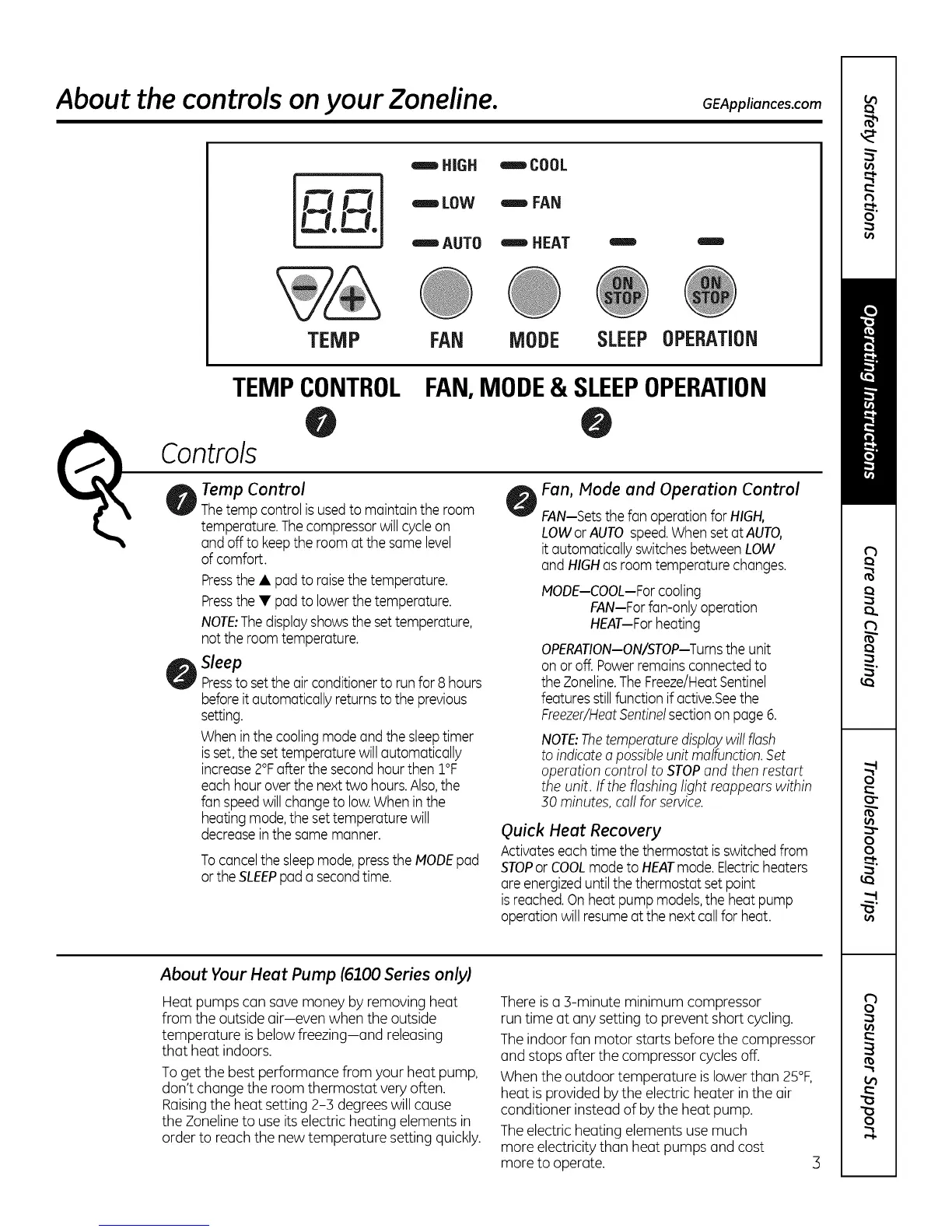

About the controlson your Zoneline. GEAppliances.com
in HiGH =mmCOOL
LOW _ FAN
AUTO _ HEAT
m !
TEIVlP FAN MODE SLEEP OPERATION
TEMPCONTROL FAN,MODE& SLEEPOPERATION
Controls
Temp Control
Thetemp control is usedto maintain the room
temperature.Thecompressorwillcycleon
and off to keepthe roomat the samelevel
of comfort.
Pressthe • pad to raisethe temperature.
Pressthe • pad to lower the temperature.
NOTE:Thedisplayshowsthesettemperature,
not theroomtemperature.
Sleep
Pressto settheair conditionerto runfor 8 hours
beforeitautomaticallyreturnsto the previous
setting.
Wheninthe coolingmodeand the sleeptimer
isset,the settemperature will automatically
increase2°Fafter thesecondhourthen :].°F
eachhour overthe next two hours.Also,the
fan speedwill changeto low.Wheninthe
heatingmode,thesettemperature will
decreaseinthe same manner.
Tocancelthe sleepmode,pressthe MODEpad
or the SLEEPpada secondtime.
Fan, Mode and Operation Control
FAN--Setsthe fan operationfor HIGH,
LOWorAUTO speed.Whensetat AUTO,
itautomaticallyswitchesbetweenLOW
and HIGHasroomtemperature changes.
MODE--COOL--Forcooling
FAN--Forfan-only operation
HEAT--Forheating
OPERATION--ON/STOP--Turnsthe unit
on oroff. Powerremainsconnectedto
the Zoneline.TheFreeze/HeatSentinel
featuresstillfunctionif active.Seethe
Freezer/HeatSentinelsectionon page6.
NOTE:Thetemperaturedisplaywill flash
toindicateapossibleunitmalfunction.Set
operation control to STOPand then restart
the unit. If theflashing light reappearswithin
30 minutes,coil for service.
Quick Heat Recovery
Activateseach time thethermostat isswitchedfrom
STOPor COOLmode to HEATmode.Electricheaters
areenergizeduntilthe thermostat set point
isreached.On heatpump models,the heatpump
operationwill resumeat the nextcall for heat.
About Vour Heat Pump (6100 Series only)
Heat pumps can save money by removing heat
from the outside air-even when the outside
temperature is below freezing-and releasing
that heat indoors.
Toget the best performance from your heat pump,
don't change the room thermostat very often.
Raisingthe heat setting 2-3 degrees will cause
the Zonelineto useits electric heating elements in
order to reach the new temperature setting quickly.
There isa 3-minuteminimum compressor
run time at any setting to prevent short cycling.
Theindoor fan motor starts before the compressor
and stops after the compressor cycles off.
When the outdoor temperature islower than 25°F,
heat isprovided bythe electric heater in the air
conditioner instead of by the heat pump.
Theelectric heating elements usemuch
more electricity than heat pumps and cost
more to operate. 3
