GE AZ41E09DAB - Optional Drain Kit

Installation Instructions

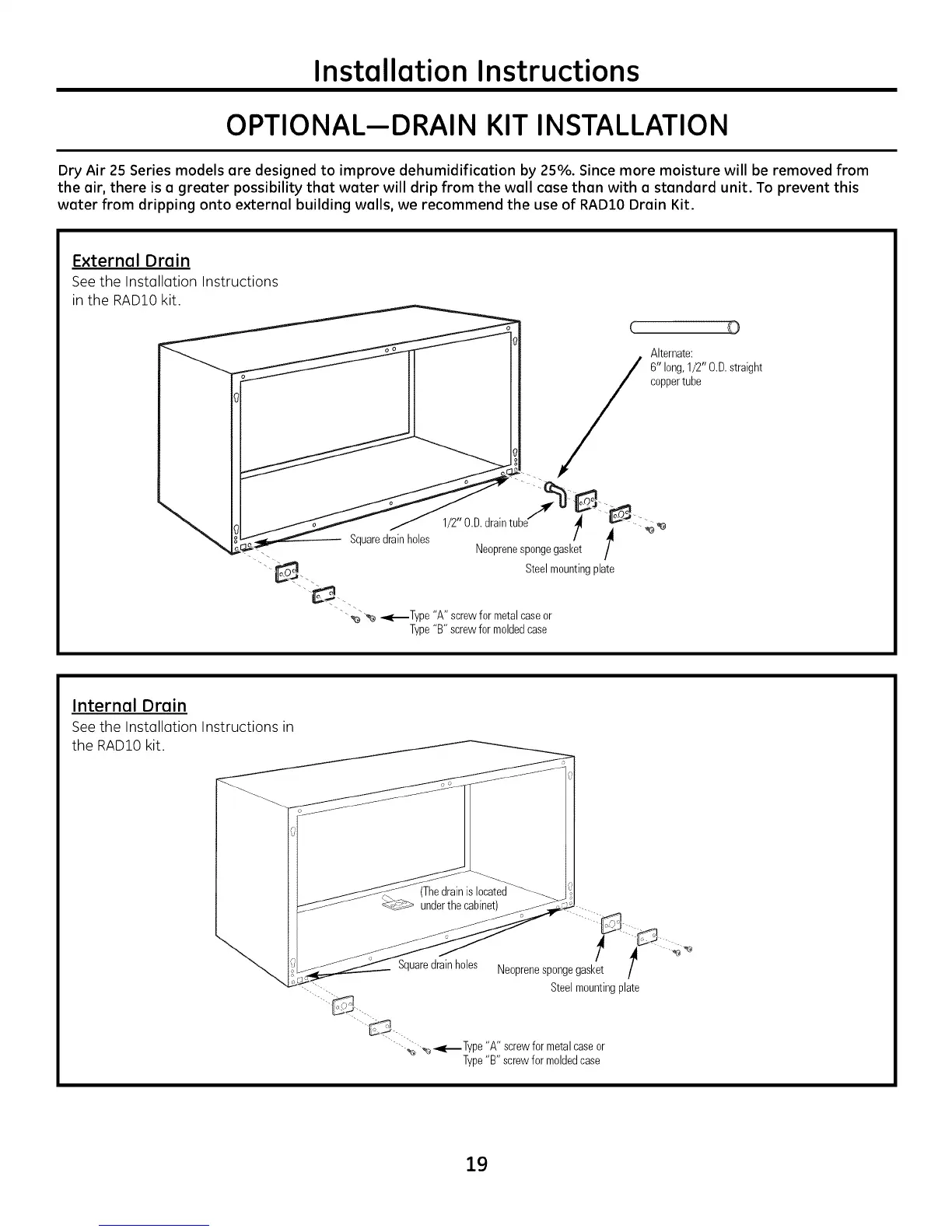

OPTIONAL--DRAIN KIT INSTALLATION
Dry Air 25 Series models are designed to improve dehumidification by 25%. Since more moisture will be removed from
the air, there is a greater possibility that water will drip from the wall case than with a standard unit. To prevent this
water from dripping onto external building walls, we recommend the use of RADIO Drain Kit.
External Drain
See the Installation Instructions
in the RADIOkit.
Squaredrainholes
Steelmountingplate
"_g -._-_Type "A" screw for metal case or
Type"B" screwfor moldedcase
Alternate:
6" long,1/2" 0.D.straight
coppertube
Internal Drain
See the Installation Instructions in
the RADIO kit.
(Thedrainis located
underthe cabinet)
Squaredrainholes Neoprenespongegasket
Steelmountingplate
- _ ,ty_l._Type "A" screw for metal case or
Type"B" screwfor moldedcase
