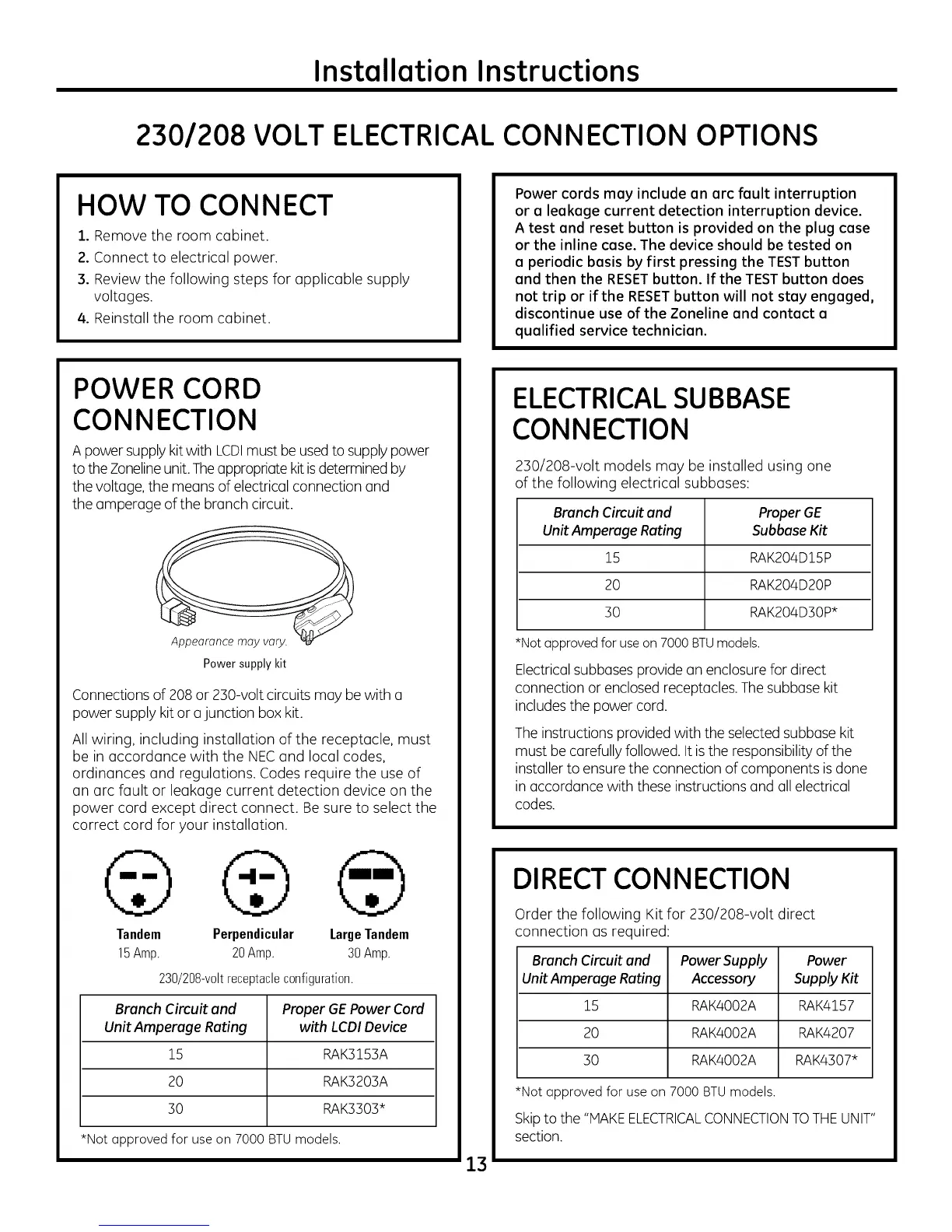

Installation Instructions
230/208 VOLT ELECTRICAL CONNECTION OPTIONS
HOW TO CONNECT
1. Remove the room cabinet.
2. Connect to electrical power.
3. Review the following steps for applicable supply
voltages.
4. Reinstall the room cabinet.
Power cords may include an arc fault interruption
or a leakage current detection interruption device.
A test and reset button is provided on the plug case
or the inline case. The device should be tested on
a periodic basis by first pressing the TESTbutton
and then the RESETbutton. If the TESTbutton does
not trip or if the RESETbutton will not stoy engaged,
discontinue use of the Zoneline and contact a
qualified service technician.
POWER CORD
CONNECTION
A power supplykit with LCDImust be usedto supply power
to the Zonelineunit.Theappropriate kit isdetermined by
the voltage, the means of electrical connection and
the amperage of the branch circuit.
Power supply kit
Connections of 208 or 230-volt circuits may be with (]
power supply kit or (] junction box kit.
All wiring, including installation of the receptacle, must
be in accordance with the NECand local codes,
ordinances and regulations. Codes require the use of
an arc fault or leakage current detection device on the
power cord except direct connect. Be sure to select the
correct cord for your installation.
Tandem Perpendicular LargeTandem
15Amp. 20Amp. 30 Amp.
230/208-voltreceptacleconfiguration.
Branch Circuit and Proper GE Power Cord
Unit Amperage Rating with LCDI Device
15 RAK3153A
20 RAK3203A
30 RAK3303*
*Not Gpproved for use on 7000 BTU models.
ELECTRICAL SUBBASE
CONNECTION
230/208-volt models may be installed using one
of the following electrical subbases:
Branch Circuit and Proper GE
Unit Amperage Rating Subbase Kit
15 RAK204D15P
20 RAK204D20P
30 RAK204D30P*
*Not approved for use on 7000 BTUmodels.
Electricalsubbases provide an enclosure for direct
connection or enclosed receptacles.Thesubbase kit
includes the power cord.
The instructions provided with the selected subbase kit
must be carefully followed. It isthe responsibility of the
installer to ensure the connection of components isdone
in accordance with these instructions and all electrical
codes.
13
DIRECT CONNECTION
Order the following Kit for 2:30/208-volt direct
connection us required:
Branch Circuit and Power Supply Power
Unit Amperage Rating Accessory Supply Kit
15 RAK4002A RAK4157
20 RAK4002A RAK4207
30 RAK4002A RAK4307*
*Not approved for use on 7000 BTU models.
Skip to the "MAKE ELECTRICALCONNECTION TO THE UNIT"
section.
