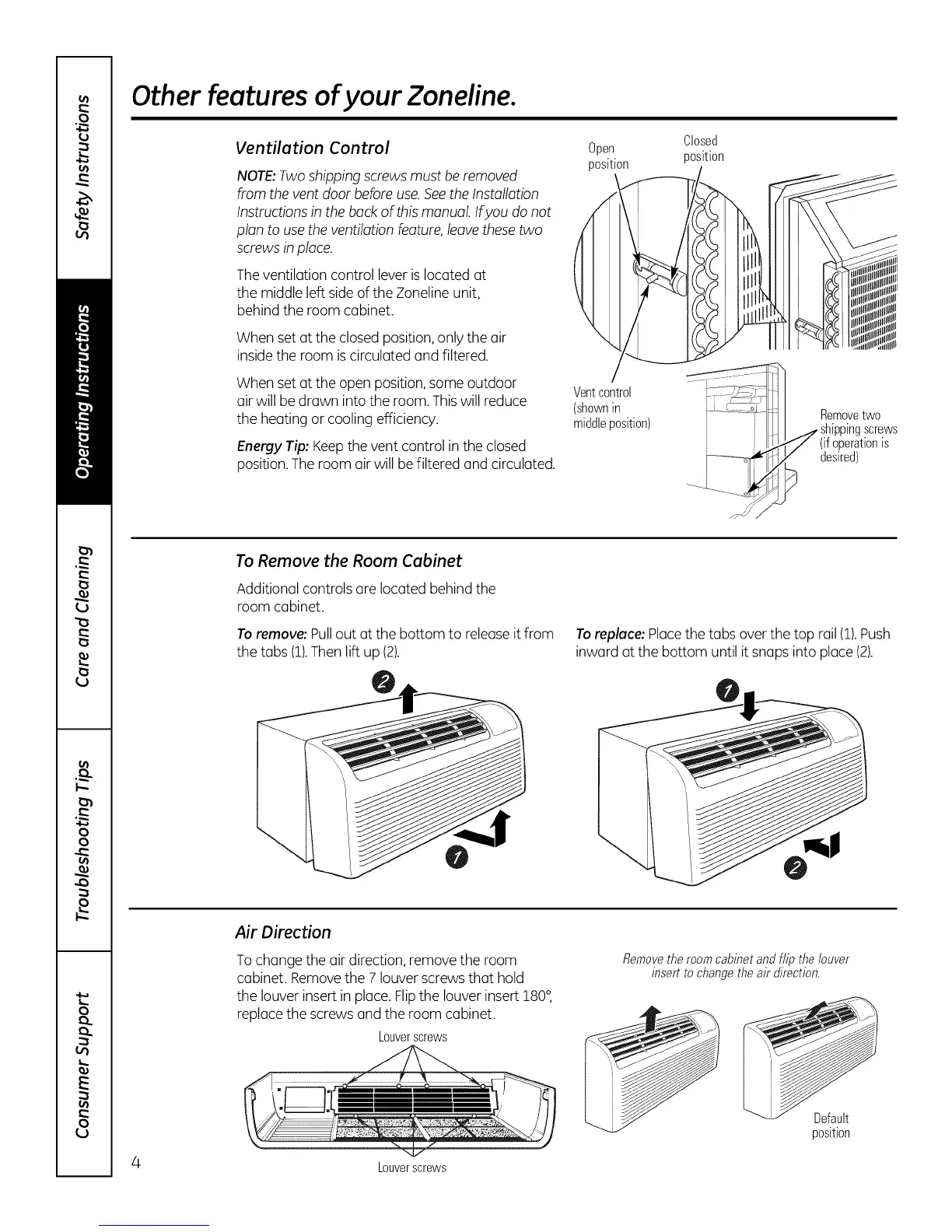

Other features of your Zoneline.
Ventilation Control
NOTE:Two shippingscrews must beremoved
from the vent door beforeuse.Seethe Installation
Instructionsin the back ofthis manual. Ifyou do not
plan to use the ventilation feature, leave thesetwo
screws in place.
Theventilation control lever is located at
the middle left side of the Zoneline unit,
behind the room cabinet.
When set at the closed position,only the air
insidethe room iscirculated and filtered.
When set at the open position, some outdoor
air will be drawn into the room. Thiswill reduce
the heating or cooling efficiency.
Energy Tip: Keepthe vent control in the closed
position.Theroom air will be filtered and circulated.
Open
position
l
Ventcontrol
(shownin
middleposition)
Closed
position
To Remove the Room Cabinet
Additional controls are located behind the
room cabinet.
Toremove: Pullout at the bottom to releaseitfrom
the tabs (D.Then lift up (2).
@
Toreplace: Placethe tubs over the top rail (D.Push
inward at the bottom until it snaps into place (2).
@
Air Direction
Tochange the air direction, remove the room
cabinet. Removethe 7 louverscrews that hold
the louverinsert in place. Flipthe louverinsert 180°,
replace the screws and the room cabinet.
Louverscrews
flemovethe roomcabinetandflip the/ouver
insert tochangethe air direction.
Default
position
/4 Louverscrews
