C-16 B30 Bus Differential System GE Multilin
C.5 IEC 61850 IMPLEMENTATION VIA ENERVISTA UR SETUP APPENDIX C
C

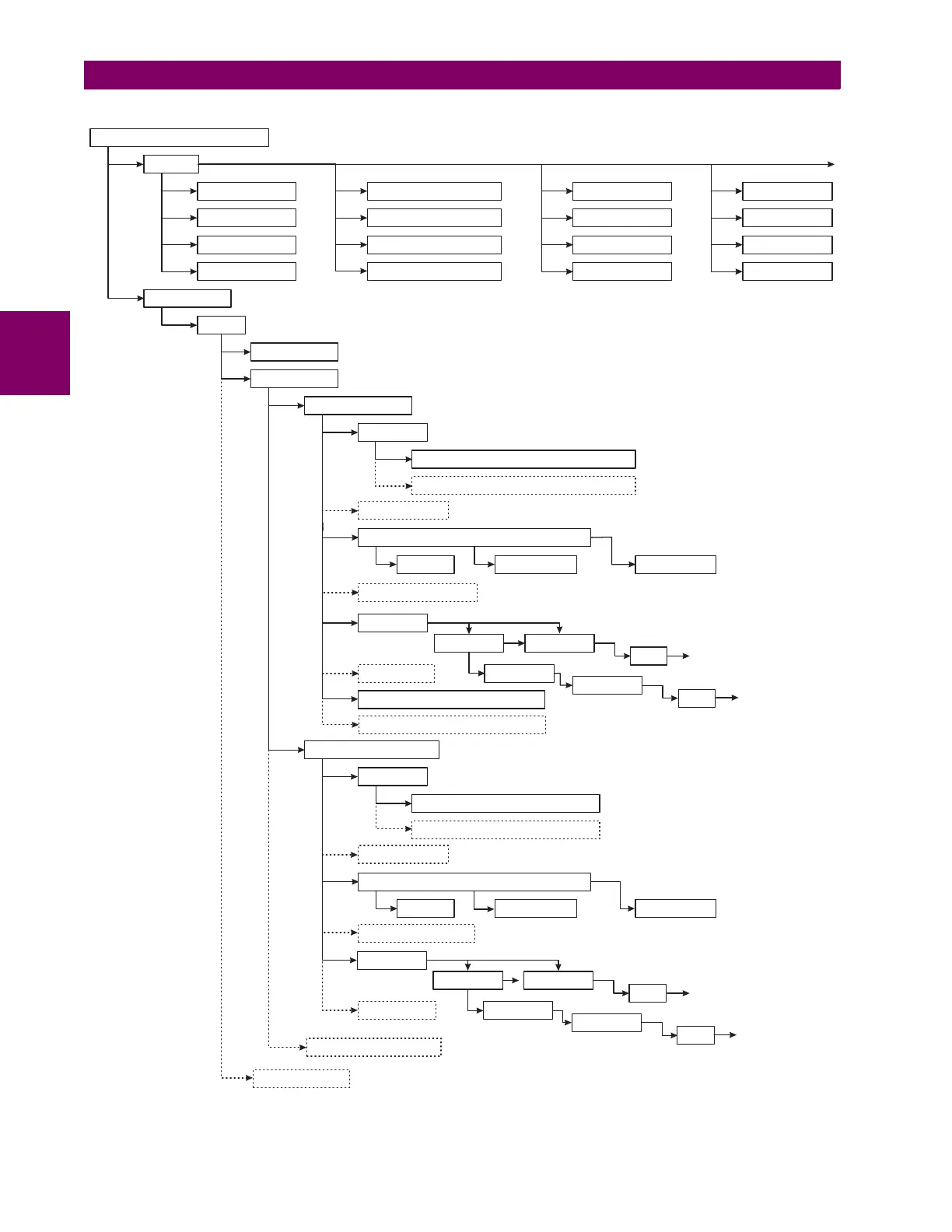

Figure C–4: ICD FILE STRUCTURE, IED NODE
842797A1.CDR
IED (name, type, manufacture, configVersion)
Services
AccessPoint (name)
DynAssoication
GetDirectory
GetDateObjectDefinition
DataObjectDirectory
GetDataSetValue
SetDataSetValue
DataSetDirectory
ConfDataSet (max, maxAttributes)
ReadWrite
TimerActivatedControl
ConfReportControl (max)
GetCBValues
ConfLogControl (max)
GSEDir
GOOSE (max)
GSSE (max)
Server
Authentication (none)
LDevice (inst)
LN0 (InType, InClass, inst)
DataSet (name)
Other DataSet elements
FCDA (fc, doName, daName, IdInst, prefix, InClass, InInst)
Other FCDA elements
DOI (name)
SDI (name)
Val
Text
Other DOI elements
GSEControl (name, datSet, type, confRev, appID)
LN (InType, InClass, prefix, inst)
DataSet (name)
FCDA (IdInst, prefix, InClass, InInst, doName, fc)
Other FCDA elements
ReportControl (name, datSet, intgPd, rptID, confRev, buffered)
TrgOps (dchg) OptFields (seqNum) RptEnabled
Other ReportControl elements
Other GSEControl elements
ReportControl (name, datSet, intgPd, rptID, confRev, buffered)
RptEnabled
Other ReportControl elements
Other DataSet elements
Other LN elements
Other LDevice elements
DAI (name)
SDI (name)
Val
DAI (name)
Text
DOI (name)
SDI (name)
Val
Text
Other DOI elements
DAI (name)
SDI (name)
Val
DAI (name)
Text
TrgOps (dchg) OptFields (seqNum)
