GE Multilin B30 Bus Differential System 3-3
3 HARDWARE 3.1 DESCRIPTION
3

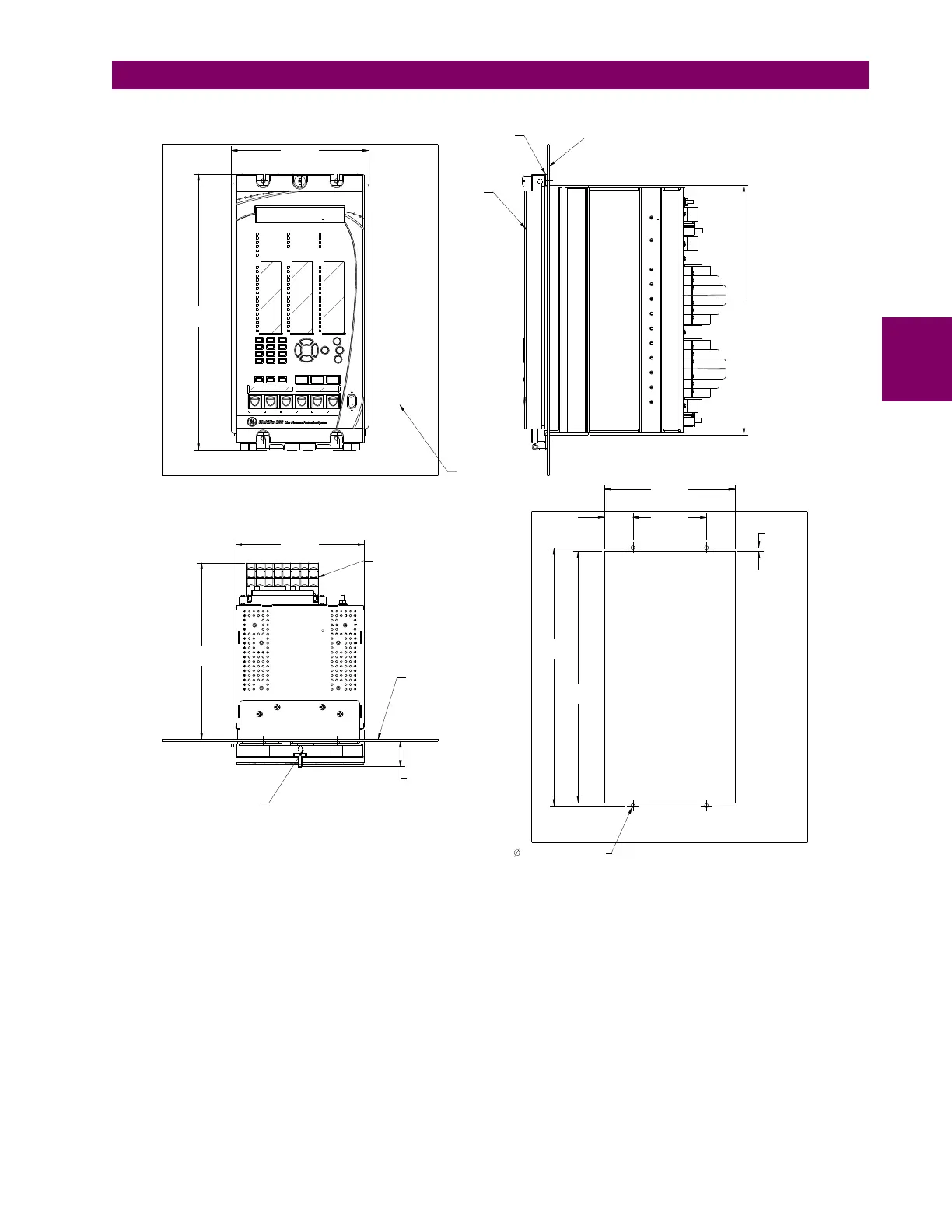

Figure 3–4: B30 VERTICAL DIMENSIONS (ENHANCED PANEL)
7.48”
(190.0 mm)
15.00”
(381.0 mm)
13.56”
(344.4 mm)
1.38”
(35.2 mm)
9.58”
(243.4 mm)
7.00”
(177.7 mm)
4.00”
(101.6 mm)
7.10”
(180.2 mm)
13.66”
(347.0 mm)
14.03”
(356.2 mm)
0.20”
(5.1 mm)
1.55”
(39.3 mm)
4 Places
0.213” (5.41 mm)
Front of Panel
Mounting Bracket
Vertical Enhanced Front View
Vertical Enhanced Top View
Vertical Enhanced Mounting Panel
CUTOUT
Front of Panel
Reference only
Terminal Blocks
Front
Bezel
Front of Panel
Mounting Bracket
Vertical Enhanced Side View
843809A2.cdr
